1
Engine displacement
570
2
Year
2023
3
Trim
RANGER SP 570 CREW NORTHSTAR EDITION
4
Parts Catalog
DOORS FRONT MOUNTING
5
Parts Diagram
Parts Catalog
DOORS FRONT
by
DOORS REAR

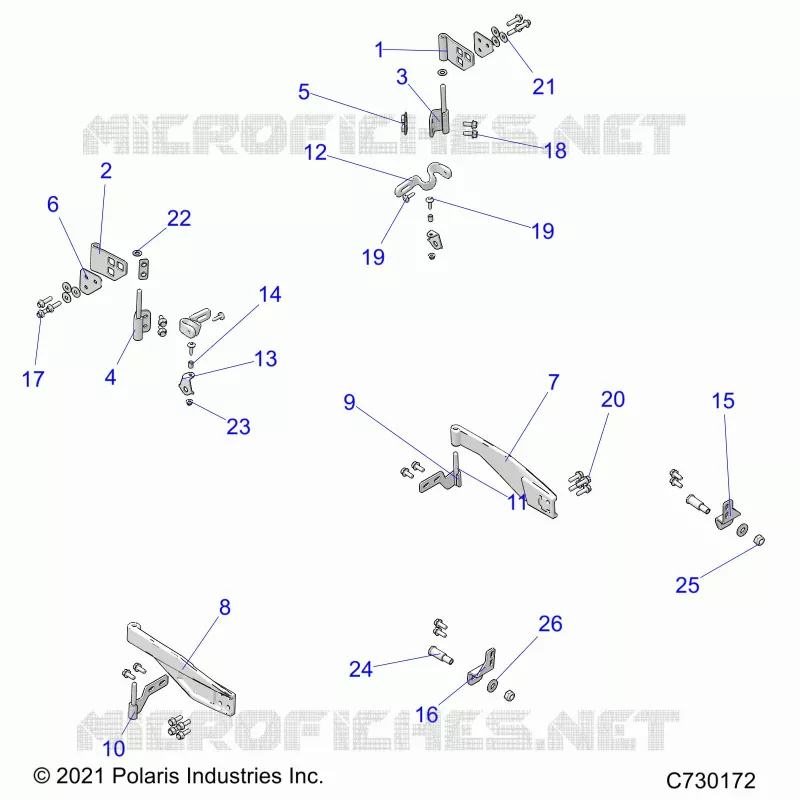

DOORS FRONT MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
1
BRKT-HINGE UPPER LH BLK [INLCUDED IN DOOR ASSEMBLY]
5271853458
$68,24 Unit Price incl. VAT
2
BRKT-HINGE UPPER RH BLK [INLCUDED IN DOOR ASSEMBLY]
5271854458
$68,24 Unit Price incl. VAT
3
WELD-HINGE UPPER RH
1019786
1019786-458
$188,99 Unit Price incl. VAT
4
WELD-HINGE UPPER LH
1019785
1019785-458
$188,99 Unit Price incl. VAT
5
PLATE-HINGE BLK
5256140458
$25,19 Unit Price incl. VAT
6
PLATE-HINGE COVER BLK [INLCUDED IN DOOR ASSEMBLY]
5271866458
$52,49 Unit Price incl. VAT
7
HINGE-FRNT LWR LH BLK [INLCUDED IN DOOR ASSEMBLY]
5639237458
2209992
$388,49 Unit Price incl. VAT
8
HINGE-FRNT LWR RH BLK
5639238458
2209993
$388,49 Unit Price incl. VAT
9
WELD-HINGE LWR LH CHASSIS BLK
1026926458
$89,24 Unit Price incl. VAT
10
WELD-HINGE LWR RH CHASSIS BLK
1026927458
$89,24 Unit Price incl. VAT
11
PIN-HINGE LOWER RGT
5338214
Not Available
12
STRAP-RUBBER DOOR LIMIT TTN
5450947
$19,94 Unit Price incl. VAT
13
BRKT-ACCY DOOR LIMITER RGT BLK
5259649458
$73,49 Unit Price incl. VAT
14
SPACER-ALUM M6 DOOR RETNR TTN
5139193
$24,14 Unit Price incl. VAT
15
BRKT-STRIKER FRNT LH BLK
5271855458
$73,49 Unit Price incl. VAT
16
BRKT-STRIKER FRNT RH BLK
5271856458
$73,49 Unit Price incl. VAT
17
SCR-HXFL-M8X1.25X30 10.9 ZPB [INLCUDED IN DOOR ASSEMBLY]
7517696
$10,49 Unit Price incl. VAT
18
SCREW-HXFL-M8X1.25X20 8.8 ZPB
7521168
$6,29 Unit Price incl. VAT
19
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
20
SCR-HEXFLGHD M8 X 25 0600086(10)
7517839
$10,49 Unit Price incl. VAT
21
WSHR-8.15X23.71X1.14 ZTB BLV [INLCUDED IN DOOR ASSEMBLY]
7558736
$6,29 Unit Price incl. VAT
22
WASHER-10.25X19.0X2.0 NYLON
5439712
$3,14 Unit Price incl. VAT
23
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
24
PIN-STRIKER
7527875
7527875-S
$24,14 Unit Price incl. VAT
25
NUT-NYLOCK M12X1.75 0600110
7540000
$7,34 Unit Price incl. VAT
26
WSHR-DOMED 29X13X3 ZC DIN6796
7556929
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
