1
Engine displacement
570
2
Year
2023
3
Trim
RANGER SP 570 CREW NORTHSTAR EDITION
4
Parts Catalog
STEERING
5

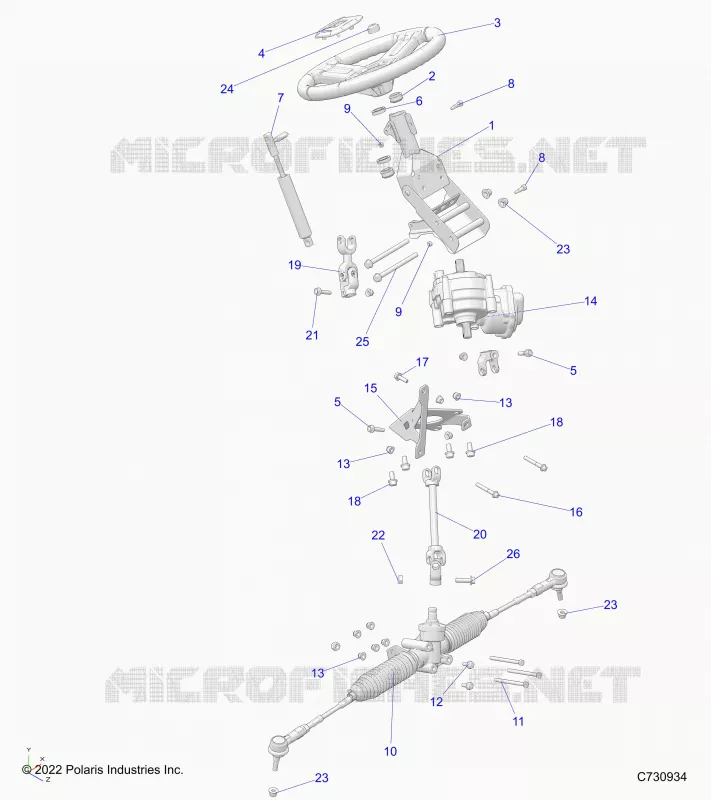

Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUALS
by
SUSPENSION, A-ARM AND STRUT MOUNTING
STEERING
1
2
3
4
5
5
6
7
8
8
9
9
10
11
12
13
13
13
14
15
16
17
18
18
19
20
21
22
23
23
23
24
25
26
1
ASM-TILT STEERING RVTD M10 BLK [INCL. 6]
1830042458
$283,49 Unit Price incl. VAT
2
BUSHING-STEERING
7556675
$24,14 Unit Price incl. VAT
3
WHEEL-STEERING
1830011
$246,74 Unit Price incl. VAT
4
CAP-STEERING WHEEL
5417672
$62,99 Unit Price incl. VAT
5
SCR-HXFL-M8X1.25X35 8.8 ZOD
7519052
$3,14 Unit Price incl. VAT
6
BEARING-STEERING
3514686
$16,79 Unit Price incl. VAT
7
ASM-SHOCK OIL LOCKING MACH
7044098
$178,49 Unit Price incl. VAT
8
SCR-SH-M6X1.0X11 12.9 ZB SHB
7519980
$13,64 Unit Price incl. VAT
9
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
10
ASM-GEARBOX STEERING
1801252
$955,49 Unit Price incl. VAT
11
SCR-HXFL-M8X1.25X95 10.9 ZFB
752133295
$7,34 Unit Price incl. VAT
12
SCR-HXFL-M8X1.25X20 8.8 ZY3
7518702
$7,34 Unit Price incl. VAT
13
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
14
ASM-POWER STEERING 2.5T 250K [EPS][E57B4][B9]
2416569
$3 538,49 Unit Price incl. VAT
15
BRKT-POWER STEERING BLK [EPS][E57B4][B9]
5258708329
$99,74 Unit Price incl. VAT
16
SCR-M8X1.25X55 HX/FL-Y
7517281
$13,64 Unit Price incl. VAT
17
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
18
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
19
SHAFT-STEERING UPPER [EPS][E57B4][B9]
1824164
$325,49 Unit Price incl. VAT
20
SHAFT-STEERING LWR W/JNT EPAS [EPS][E57B4][B9]
1830020
$362,24 Unit Price incl. VAT
21
SCR-HXFL-M8X1.25X40 10.9 ZFB
752133240
$6,29 Unit Price incl. VAT
22
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
23
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
24
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
25
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
26
SCR-HXFL-M10X1.5X40 10.9 ZFB
752133340
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
