Parts Catalog

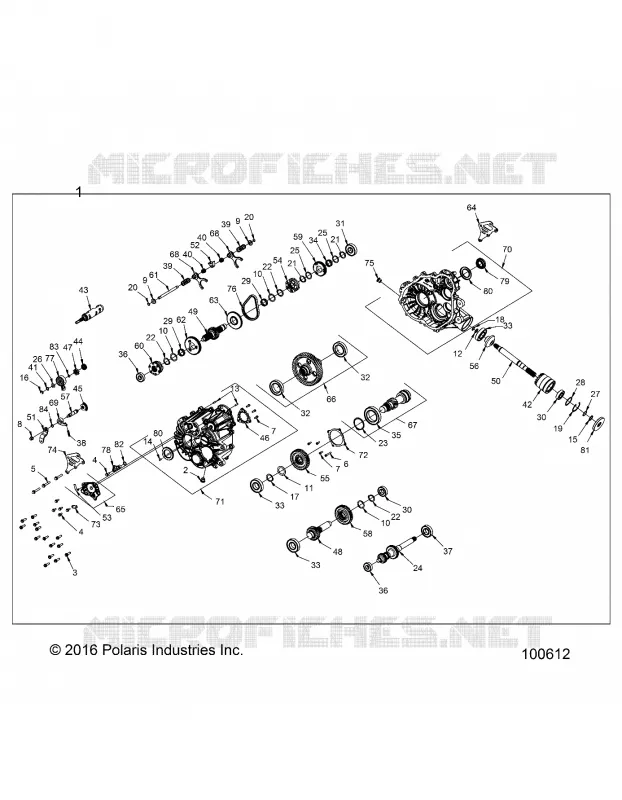

DRIVE TRAIN, MAIN GEARCASE (FROM 1/5/16)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE INTERNALS (TO 7/1/16)
by
DRIVE TRAIN, FRONT GEARCASE INTERNALS (FROM 7/1/16)
DRIVE TRAIN, MAIN GEARCASE (FROM 1/5/16)
1
2
3
4
4
5
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
22
23
24
25
25
26
27
28
29
29
30
30
31
32
32
33
33
33
34
35
36
36
37
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
1
ASM. MAIN GEARCASE [INCL. ALL]
1333682
$3 458,69 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
4
SCREW HEX FLANGE HEAD M6 X 1 X 20
3235206
$13,64 Unit Price incl. VAT
5
SCREW HEX FLANGE M8 X 50
3235207
$19,94 Unit Price incl. VAT
6
SCREW SOCKET HEAD CAP M6 X 1.0 X 40
3235208
$20,99 Unit Price incl. VAT
7
SCREW SOCKET HEAD CAP M6 X 1.0 X 18
3235332
$7,34 Unit Price incl. VAT
8
NUT LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$14,69 Unit Price incl. VAT
9
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
10
WASHER-32.3X42X1.5(115288)
3235211
$19,94 Unit Price incl. VAT
11
WASHER-35.6X57X1.5(115289)
3235212
$25,19 Unit Price incl. VAT
12
WASHER-17.3X25X1.5(115290)
3235213
$31,49 Unit Price incl. VAT
13
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
14
PIN SPRING SLOTTED 6 X 12
7043746
$15,74 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
16
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
17
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
18
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
19
RING RETAINING BASIC INTERNAL 2.047
3234269
$17,84 Unit Price incl. VAT
20
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
21
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
22
RING RETAINING BASIC EXTERNAL MSR-32
3235214
$17,84 Unit Price incl. VAT
23
RING-RETAIN VSH-237(130298)
3235216
$19,94 Unit Price incl. VAT
24
SHAFT INPUT HELICAL
3235974
$482,99 Unit Price incl. VAT
25
WASHER THRUST 1.187 X 1.500 X .0600
3233378
$17,84 Unit Price incl. VAT
26
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
27
SHIM 1.180 OD X 0.995 ID
3234272
$68,24 Unit Price incl. VAT
28
SHIM 2.040 OD X 1.63 ID
3234273
$26,24 Unit Price incl. VAT
29
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
30
BEARING
3233019
$54,59 Unit Price incl. VAT
31
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
32
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
33
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
34
BEARING-NEEDLE 30X35X13-CAGED
3233384
$54,59 Unit Price incl. VAT
35
BEARING BALL 6012 C3 60 X 95 X 18
3235218
$101,84 Unit Price incl. VAT
36
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
37
BEARING BALL 6206RSH2 STD 30 X 62 X 16
3235496
$54,59 Unit Price incl. VAT
38
SPRING COMPRESSION 0.36 O.D. X 1.125
3233830
$19,94 Unit Price incl. VAT
39
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
40
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
41
WASHER-SPRING 210393
3235327
$17,84 Unit Price incl. VAT
42
TUBE SNORKEL MACHINED
3234278
$188,99 Unit Price incl. VAT
43
DRUM-SHIFT MACH.(255289)
3235463
$519,74 Unit Price incl. VAT
44
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
45
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
46
PLATE PARK 12 FACE
3235456
$73,49 Unit Price incl. VAT
47
DETENT STAR
3235603
$73,49 Unit Price incl. VAT
48
SHAFT-IDLER 29T(285803)
3235223
$204,74 Unit Price incl. VAT
49
SHAFT-REVERSE 27T(285878)
3235380
$456,74 Unit Price incl. VAT
50
SHAFT-FRONT OUTPUT(285914)
3235394
$246,74 Unit Price incl. VAT
51
BELLCRANK DROID
3235629
$99,74 Unit Price incl. VAT
52
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
53
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
54
ENGAGEMENT DOG 6-FACE(352857)
3235233
$241,49 Unit Price incl. VAT
55
GEAR-46T STAGE 3(352872)
3235236
$204,74 Unit Price incl. VAT
56
GEAR-13T FRONT OUTPUT(352957)
3235237
$246,74 Unit Price incl. VAT
57
SHAFT-SHIFT(352973)
3235238
$68,24 Unit Price incl. VAT
58
GEAR 46T STAGE 2
3235381
$246,74 Unit Price incl. VAT
59
GEAR 49T
3235396
$246,74 Unit Price incl. VAT
60
SHIFT DOG PARK/LOW (353357)
3235457
$272,99 Unit Price incl. VAT
61
RAIL-SHIFT SHAFT(353622)
3235542
$52,49 Unit Price incl. VAT
62
GEAR LOW 61T
3235561
$157,49 Unit Price incl. VAT
63
SPROCKET-48T 6-FACE REVERSE
3235755
$152,24 Unit Price incl. VAT
64
WELDMENT REAR MOUNT BRACKET
3235527
$83,99 Unit Price incl. VAT
65
SUBASSEMBLY SECTOR COVER
3235713
$209,99 Unit Price incl. VAT
66
SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)
3235335
$645,74 Unit Price incl. VAT
67
SUBASM. SHAFT
3235336
$703,49 Unit Price incl. VAT
68
SUBASSEMBLY SHIFT FORK [INCLUDES ALL HARDWARE]
3235454
$167,99 Unit Price incl. VAT
69
SUBASSEMBLY PAWL DETENT ROLLER
3235452
$68,24 Unit Price incl. VAT
70
SUBASM. LH CASE [INCL. ALL HARDWARE]
3235491
$1 007,99 Unit Price incl. VAT
71
SUBASSEMBLY RH COVER
3235756
$818,99 Unit Price incl. VAT
72
COVER-BEARING CNTR DR.
3235241
$89,24 Unit Price incl. VAT
73
BRACKET WIRE HARNESS
3235350
$16,79 Unit Price incl. VAT
74
BRACKET REAR MOUNT
3235528
$73,49 Unit Price incl. VAT
75
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
76
CHAIN SILENT TYPE 101 .25P X .40W X 58L
3234737
$314,99 Unit Price incl. VAT
77
SWITCH ROTARY 2 PIN RESISTIVE
7661999
$220,49 Unit Price incl. VAT
78
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
79
SEAL TRIPLE LIP VITON HELIX 30 X 47
3235495
$73,49 Unit Price incl. VAT
80
SEAL TRIPLE LIP VITON HELIX 40X70X7
3235052
$57,74 Unit Price incl. VAT
81
SEAL TRIPLE LIP VITON 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
82
O-RING
3234302
$13,64 Unit Price incl. VAT
83
O-RING -012 VITON
3233836
$12,59 Unit Price incl. VAT
84
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
