1
Engine displacement
440
2
Year
1994
3
Trim
EURO 440 - E942760
4
Parts Catalog

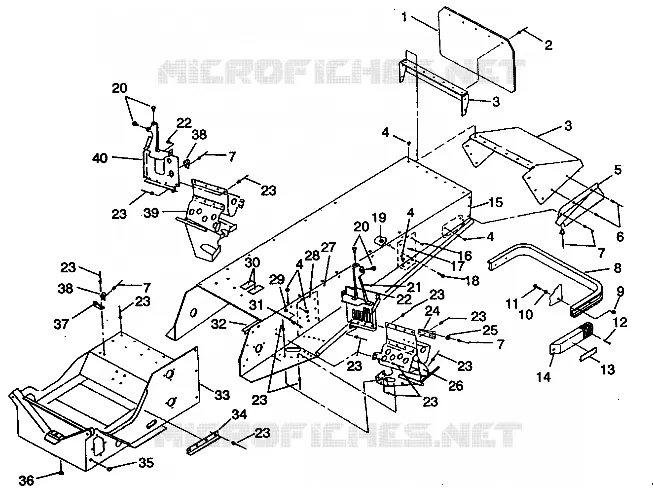

TUNNEL ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390001)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT 440 E942760 AND 440 SKS E942560 (49273927390035)
by
HITCH ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390002)
TUNNEL ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390001)
1
2
3
3
3
3
3
3
3
3
4
4
4
4
5
5
5
5
6
7
7
7
7
8
9
10
11
12
13
14
15
15
15
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
20
20
21
22
22
23
23
23
23
23
23
23
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
1
2
3
3
3
3
3
3
3
3
4
4
4
4
5
5
5
5
6
7
7
7
7
8
9
10
11
12
13
14
15
15
15
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
20
20
21
22
22
23
23
23
23
23
23
23
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
1
FLAP SNOW SILVER Substituted by 5410394-1106 (400)
5410394
5410394-1038
$194,24 Unit Price incl. VAT
2
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
3
PANEL R.CLOSE-OFF ASM. (Incl. 41)
1011799
$52,80 Unit Price incl. VAT
3
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
4
RIVET Substituted by 7661829
7661828
Not Available
5
SKIRT RH SNOW BLK. Substituted by 5431645-070
5431645
Not Available
5
SKIRT LH SNOW BLK. Substituted by 5431627-070
5431627
Not Available
6
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
7
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
10
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
11
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
12
SCREW(10)
7511863
$3,66 Unit Price incl. VAT
13
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
14
CAP BUMPER BLK.
5430930070
Not Available
15
TUNNEL ASM. (440)
1011956
Not Available
15
TUNNEL 2-UP(440SKS EURO) [No Longer Available] (Tour.)
1012030
Not Available
16
RIVET SEMI-TUBE (50)
7661812
Not Available
17
BRKT RH.REAR SUSP. (SKS)
1011906067
Not Available
17
BRKT RH R.SUSP.
1011858067
Not Available
17
BRKT LH R.SUSP
1011857067
Not Available
17
BRKT LH.REAR SUSP (SKS)
1011905067
Not Available
18
BOLT(10) Substituted by 7515494 (400 SKS/650 SKS Only)
7515482
Not Available
19
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
20
BUMPER HOOD
5410768
$4,82 Unit Price incl. VAT
21
MT CONSOLE LH
1011951067
$56,90 Unit Price incl. VAT
22
SCREW(10)
7512057
Not Available
23
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
24
SUPPORT BUMPERSIDE BLK.
5240294067
Not Available
25
STOP BUMPER
5410826
Not Available
26
FOOTREST ASM LH
1011954
Not Available
27
NUT SERT(10)
7541938
Not Available
28
BRKT. FR.SUSPENSION Substituted by 5211323-067
5211323
$47,24 Unit Price incl. VAT
29
SNAP-MALE(10)
7080227
Not Available
30
DECAL TOP TUNNEL STRIP
7073978
Not Available
31
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
32
BRACE REINF.TUNNEL
5240242
Not Available
33
WELD-BULKHEAD BLK
1012041067
Not Available
34
GUARD ADAPTER GUIDE
5222857
$26,24 Unit Price incl. VAT
35
PLUG HOLE(10)
7080512
$4,29 Unit Price incl. VAT
36
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
37
BRKT ROPE GUIDE BLK. (StarLite GT)
5222687067
$89,24 Unit Price incl. VAT
38
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
39
FOOTREST ASM RH
1011955
Not Available
40
MT CONSOLE RH
1011952067
$435,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
