1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI INTL - R13VH57FX
4
Parts Catalog

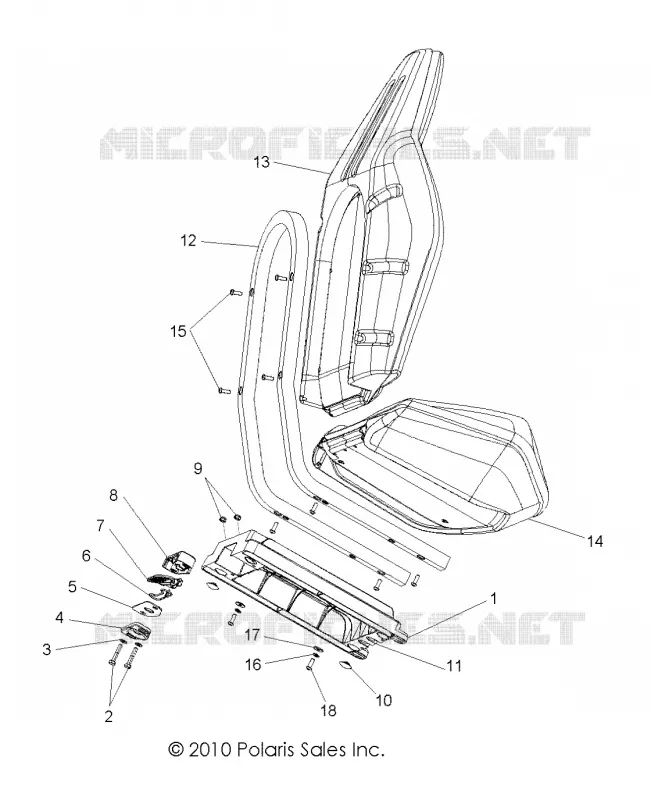

SEAT ASM.
5
Parts Diagram
Parts Catalog
REAR RACK and FENDERS
by
SEAT MOUNTING AND BELTS
SEAT ASM.
1
ASM. SEAT BASE [INCL. 2-10]
2633532
$115,49 Unit Price incl. VAT
2
SCR-HH-1/4-20X1.5 GR5 ZY3
7512126
$9,44 Unit Price incl. VAT
3
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
4
CAP LATCH SEAT
5437120
$16,79 Unit Price incl. VAT
5
Plate Seat Latch
5251162
Not Available
6
SPRING LATCH SEAT
7081466
$57,74 Unit Price incl. VAT
7
HANDLE-SEAT BASE LATCH
5437121
$9,44 Unit Price incl. VAT
8
BODY-LATCH SEAT
5437119
$13,64 Unit Price incl. VAT
9
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
10
GROMMET SEAT BASE
5413441
$7,34 Unit Price incl. VAT
11
BASE SEAT
5436597
$167,99 Unit Price incl. VAT
12
ASM. TUBE SEAT HOOP BLACK
2634133
$188,99 Unit Price incl. VAT
13
ASM. SEAT BACK [INCL. INSERTS][N1]
2684952
Not Available
14
Asm. Seat Bottom [AD]
2684953
2685956
$414,74 Unit Price incl. VAT
15
SCREW-1/4-20x3/4 BH TRX GR5-Z
7515177
$5,76 Unit Price incl. VAT
16
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
17
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
18
SCR-1/4-20X1-BH-TRX-GR5-Z
7519296
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
