1
Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
FRONT SUSPENSION AND SKI
5

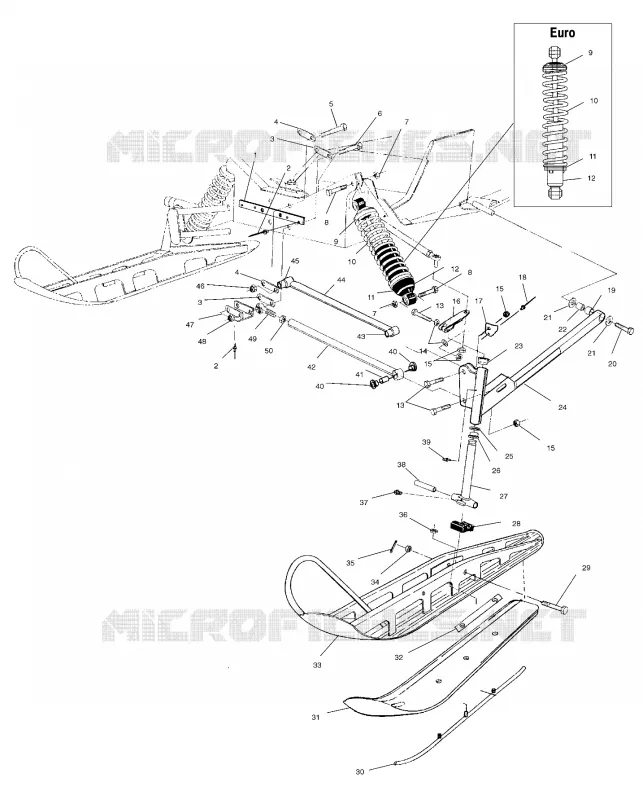

Parts Diagram
Parts Catalog
RACK TUNNEL EXTENSION
by
STEERING
FRONT SUSPENSION AND SKI
1
BRACE BULKHEAD
5240349067
$10,70 Unit Price incl. VAT
2
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
3
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
4
STRAP-SPACER TOP
5211344
$13,64 Unit Price incl. VAT
5
BOLT(10)
7512582
Not Available
6
BOLT
7512678
$36,74 Unit Price incl. VAT
7
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
8
SCREW
7515415
$2,09 Unit Price incl. VAT
9
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
10
SPRING COMPRESSION BLACK
7041261067
$246,74 Unit Price incl. VAT
11
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
12
SHOCK IFS
7041535
$325,49 Unit Price incl. VAT
13
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
14
Washer .105
7555832
$4,19 Unit Price incl. VAT
15
Nut
7542403
Not Available
16
ARM STEERING
5220326067
Not Available
17
STOP LH STRG BLK.
5241569067
$13,64 Unit Price incl. VAT
17
STOP RH STRG BLK.
5241570067
$13,64 Unit Price incl. VAT
18
RIVET-3/16-.214-.420
7661130
$2,09 Unit Price incl. VAT
19
PIVOT RUBBER
5410872
$15,74 Unit Price incl. VAT
20
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
21
WASHER
7555721
$2,09 Unit Price incl. VAT
22
BUSHING
5010310
$19,94 Unit Price incl. VAT
23
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
24
ARM TRLG LH (Incl. 19 20)
1822485
$389,01 Unit Price incl. VAT
24
ARM TRLG RH (Incl. 19 20)
1822486
Not Available
25
BUSHING
7556509
$3,14 Unit Price incl. VAT
26
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
27
SHAFT SPINDLE TRLG BLK
6230102067
$440,99 Unit Price incl. VAT
28
STOP RUBBER
5411083
$26,24 Unit Price incl. VAT
29
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
30
60 DEG 4#CARBIDE(STEEL SKI) (PT) (Pair)
2871288
$110,24 Unit Price incl. VAT
31
SKIN SKI WIDE BLK Substituted by 2871354-070
5432153070
Not Available
32
SHIM SKI SKIN
5433795
Not Available
33
SKI WELD
1820430067
Not Available
34
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
35
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
36
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
37
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
38
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
39
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
40
BUSHING
5010127
$12,59 Unit Price incl. VAT
41
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
42
ROD RAD LOWER BLK (RMK)
1822444067
$115,49 Unit Price incl. VAT
43
BUSHING RADIUS ROD PIVOT
5411099
$20,99 Unit Price incl. VAT
44
ROD RAD UP. FIXED (RMK)
1822420
$178,49 Unit Price incl. VAT
45
BUSHING PIVOT
5411095
$27,29 Unit Price incl. VAT
46
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
47
BRKT. RADIUS ROD BOTTOM
5242578
$68,24 Unit Price incl. VAT
48
NUT FLEX (10)
7542703
Not Available
49
ROD END
7061071
$99,74 Unit Price incl. VAT
50
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
