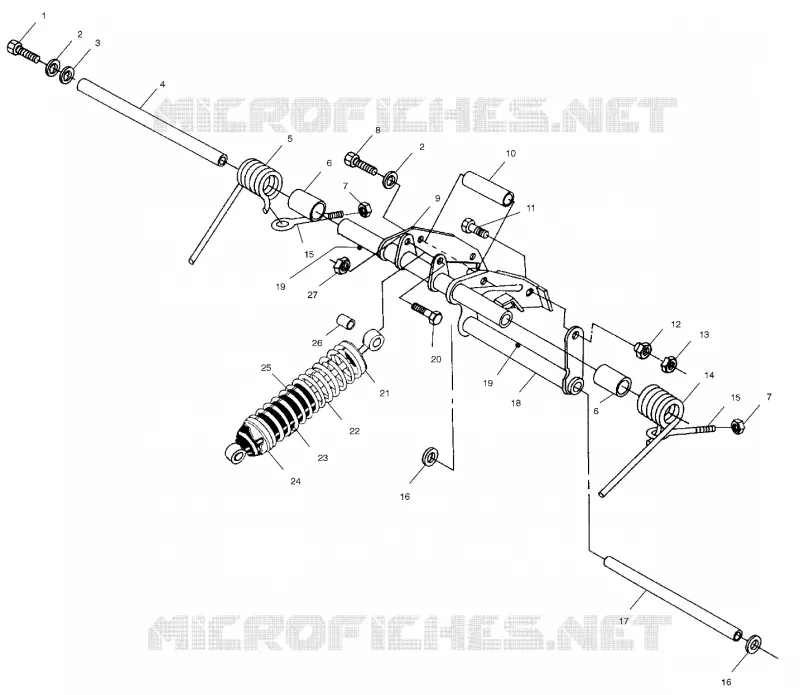

REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM
by
SUSPENSION
REAR TORQUE ARM
1
BOLT
7517435
$22,56 Unit Price incl. VAT
2
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
4
SHAFT
5020909
$46,19 Unit Price incl. VAT
5
SPRING SUSPENSION REAR RH
7041240067
7041240-329
$141,74 Unit Price incl. VAT
6
SPACER SPRING
5521277
$40,94 Unit Price incl. VAT
7
NUT FLEX LOC (10)
7542402
$11,54 Unit Price incl. VAT
8
SCREW (10)
7517247
$6,29 Unit Price incl. VAT
9
ARM R.TORQUE BLK.
1540761067
Not Available
10
TUBE SPACER R.TORQUE
5010305
$25,08 Unit Price incl. VAT
11
BOLT
7515317
$9,44 Unit Price incl. VAT
12
NUT SHOULDER
7542326
$36,74 Unit Price incl. VAT
13
NUT LOCK
7542302
$7,34 Unit Price incl. VAT
14
SPRING SUSPENSION REAR LH
7041239067
$204,74 Unit Price incl. VAT
15
BOLT EYE
7080221
$17,84 Unit Price incl. VAT
16
WASHER-.390X1.12X.060 FL-Y
7555823
$7,34 Unit Price incl. VAT
17
SHAFT PIVOT
5132239
$115,49 Unit Price incl. VAT
18
ARM PIVOT REAR
1540652067
$115,49 Unit Price incl. VAT
19
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
20
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
21
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
22
SPRING COMPRESSION BLACK
7041261067
$246,74 Unit Price incl. VAT
23
SLEEVE SPRING PROTECTOR
5431032
$68,24 Unit Price incl. VAT
24
CAM ADJUSTING SPRING
5630334
$68,24 Unit Price incl. VAT
25
SHOCK REAR TRACK
7041738
7042309
$482,99 Unit Price incl. VAT
26
BUSHING
5430537
$7,34 Unit Price incl. VAT
27
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
