Engine displacement
570
2
Year
2016
3
Trim
ACE 570 EFI
4
Parts Catalog

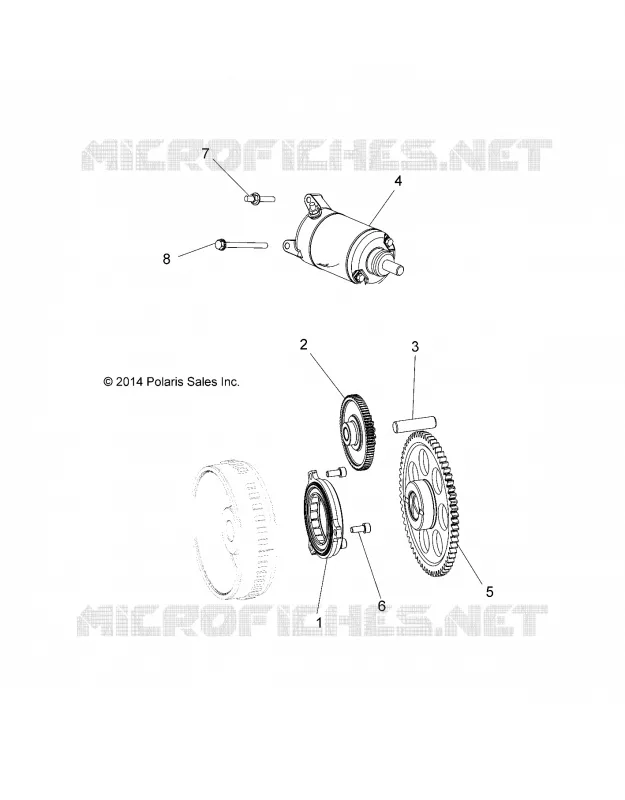

STARTER DRIVE
5
Parts Diagram
Parts Catalog
LONG BLOCK
by
ENGINE, THROTTLE BODY AND FUEL RAIL
STARTER DRIVE
1
ASM-SPRAG CLUTCH HUB STARTER
1204884
$277,19 Unit Price incl. VAT
2
ASM-GEAR STARTER
1204683
$330,74 Unit Price incl. VAT
3
PIN SOLID STARTER TORQUE LIMIT GEAR [TO 11/1/2020]
3022500
3023967
$52,49 Unit Price incl. VAT
4
STARTER 1 CYLINDER
4014909
$414,53 Unit Price incl. VAT
5
GEAR-FREEWHEEL 1WAY CLUTCH
6230561
$351,74 Unit Price incl. VAT
6
SCREW-M6X1.0X14.0 HX/SOC/CP-Y/D
7517431
$10,49 Unit Price incl. VAT
7
STUD-DOUBLE END M6X1.0X25/10
7519237
$7,34 Unit Price incl. VAT
8
SCREW
7518755
$13,64 Unit Price incl. VAT
