1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI INTL - R13VH57FX
4
Parts Catalog
BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
by
ELECTRICAL, INSTRUMENTS CONTROLS

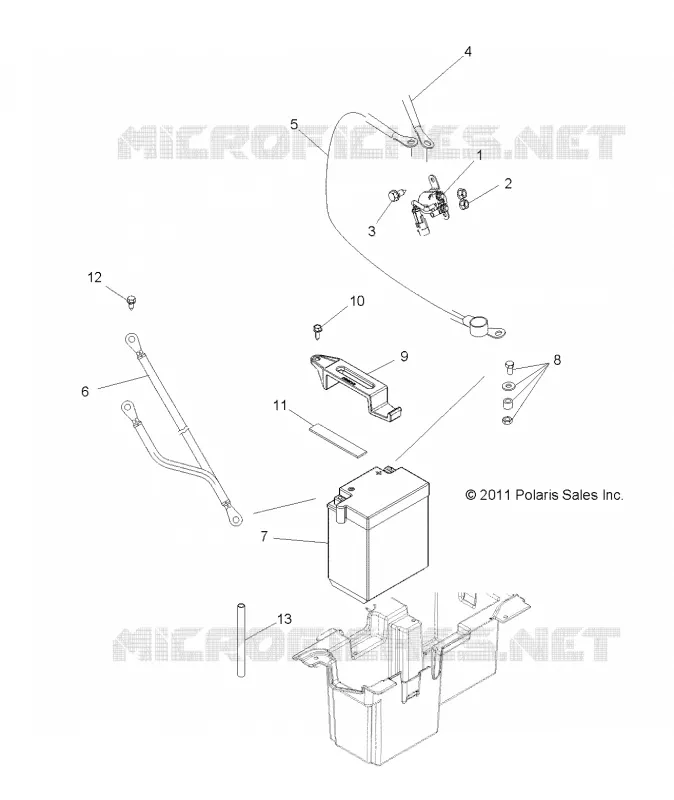

BATTERY
1
2
12
4
5
6
6
7
8
9
10
11
12
13
1
SOENOID STARTER C1100 [INCL 2][A2]
4012001
4081641
$59,84 Unit Price incl. VAT
2
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
3
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
4
Cable Solenoid to Starter
4011498
$136,49 Unit Price incl. VAT
5
CABLE-BATT TO SOLENOID/TERMINA
4011497
$83,99 Unit Price incl. VAT
6
Cable Ground Engine/Battery/Chassis
4013499
$83,99 Unit Price incl. VAT
6
CABLE GROUND ENGINE/BATTERY/CHASSIS
4014470
$89,24 Unit Price incl. VAT
7
BATTERY-14AH DRY W/O ACID
4012622
4010774
$178,49 Unit Price incl. VAT
8
KIT BATTERY BOLT [INCL. BOLTS NUTS]
2202213
$6,29 Unit Price incl. VAT
9
STRAP BATTERY RETAINER
5438917
$19,94 Unit Price incl. VAT
10
SCR-#14X1.0 LG HI/LO/TAPER-M
7512098
$3,14 Unit Price incl. VAT
11
PAD RACK MOUNTING
5810455
$6,29 Unit Price incl. VAT
12
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
13
TUBE-BATTERY VENT 305MM
5435030
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
