1
Engine displacement
90
2
Year
2001
3
Trim
SPORTSMAN 90
4
Parts Catalog

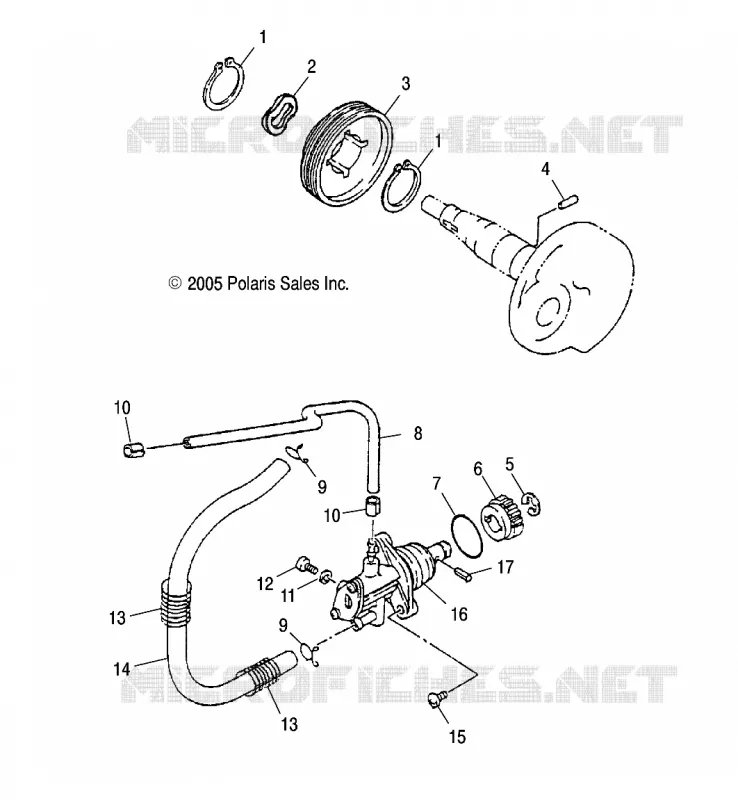

OIL PUMP ASSEMBLY
5
Parts Diagram
Parts Catalog
OIL TANK / FUEL TANK
by
REAR WHEEL AXLE
OIL PUMP ASSEMBLY
1
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
13
14
15
16
17
1
Circlip External
0450060
$7,34 Unit Price incl. VAT
2
Washer Wave
0450655
Not Available
3
Gear Drive Oil Pump
0450058
Not Available
4
Pin Dowel
0450059
Not Available
5
Clip Cir External
0450052
Not Available
6
Gear Worm Oil Pump
0450050
$11,54 Unit Price incl. VAT
7
O-Ring
0450048
$10,49 Unit Price incl. VAT
8
Tube Oil
0450055
$20,99 Unit Price incl. VAT
9
CLIP-94510-08000
0450054
0455537
$2,40 Unit Price incl. VAT
10
Clip
0450056
$4,19 Unit Price incl. VAT
11
Washer
0450046
$1,04 Unit Price incl. VAT
12
Bolt Phillips
0450884
$1,04 Unit Price incl. VAT
13
Spring Protective Oil Pipe
0450061
Not Available
14
Tube Oil
0450053
Not Available
15
Bolt Pan Phillips
0450057
$1,04 Unit Price incl. VAT
16
Asm. Oil Pump [Incl. 5-14 17]
0450846
$167,99 Unit Price incl. VAT
17
Pin Shaft
0450051
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
