1
Engine displacement
90
2
Year
2001
3
Trim
SPORTSMAN 90
4
Parts Catalog
FENDER SEAT
5

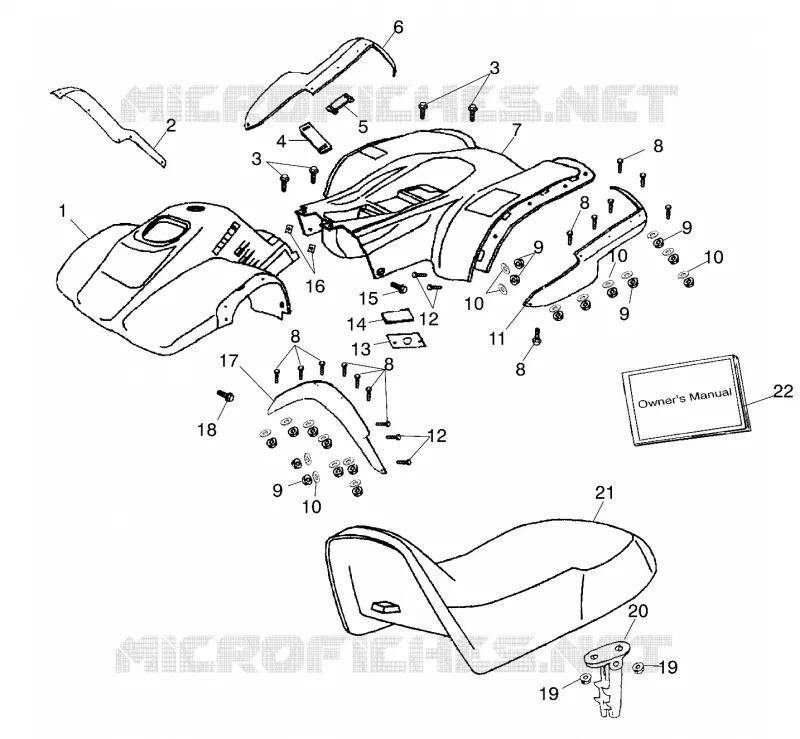

Parts Diagram
Parts Catalog
SWING ARM / FOOTREST
by
SUSPENSION
FENDER SEAT
1
2
3
3
4
5
6
7
8
8
8
8
8
9
9
9
9
10
10
10
10
11
12
12
13
14
15
16
17
18
19
19
20
21
22
1
Fender Front
0450624
$165,36 Unit Price incl. VAT
2
Mudflap Front RH
0450627
Not Available
3
Bolt
0450340
0450297
$9,44 Unit Price incl. VAT
4
Strap Battery
0450897
$12,59 Unit Price incl. VAT
5
Strap Battery Tool Box
0450898
$10,49 Unit Price incl. VAT
6
Mudflap Rear RH
0450629
Not Available
7
Fender Rear
0450625
Not Available
8
Bolt Pan Phillips
0450667
$10,49 Unit Price incl. VAT
9
Nut Nylon Lock
0450741
$5,76 Unit Price incl. VAT
10
Washer Plain
0450710
$2,09 Unit Price incl. VAT
11
Mudflap Rear LH
0450628
Not Available
12
Bolt Pan Phillips
0450622
$4,19 Unit Price incl. VAT
13
Pad Protector
0450345
$83,99 Unit Price incl. VAT
14
Rubber Battery
0450346
$5,24 Unit Price incl. VAT
15
BOLT
0450297
$9,44 Unit Price incl. VAT
16
Nut U-Plate
0450342
$9,44 Unit Price incl. VAT
17
Mudflap Front LH
0450626
Not Available
18
Bolt Hex Washer Face
0450824
$4,19 Unit Price incl. VAT
19
NUT FLANGE HEX
0450880
$7,34 Unit Price incl. VAT
20
Hook Seat
0450356
$62,99 Unit Price incl. VAT
21
Asm. Seat
0450631
Not Available
22
Manual Owner#s 2001 Youth ATV
9916424
$37,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
