1
Engine displacement
90
2
Year
2001
3
Trim
SPORTSMAN 90
4
Parts Catalog

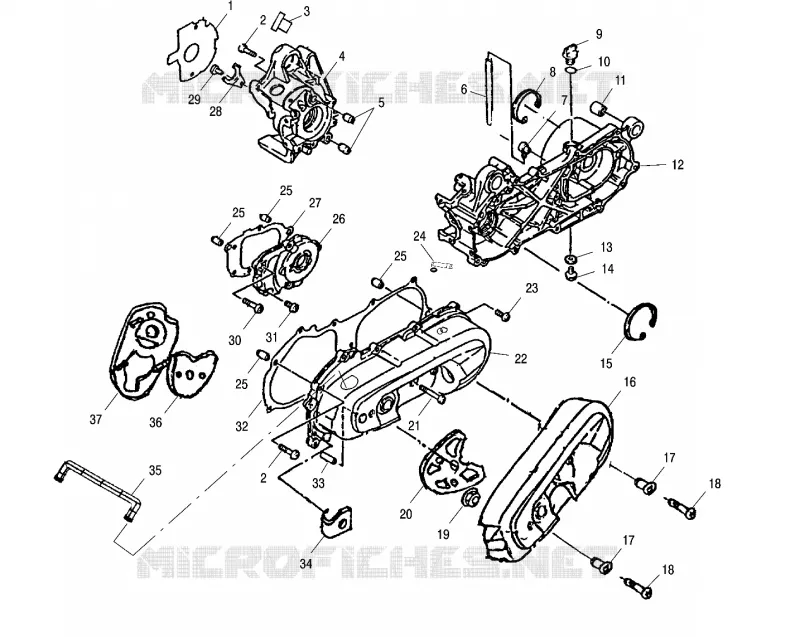

CRANKCASE
5
Parts Diagram
Parts Catalog
CARBURETOR
by
FRONT WHEEL
CRANKCASE
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
25
25
25
26
27
28
29
30
31
32
33
34
35
36
37
1
2
3
4
5
6
7
8
9
10
11
12
1
Gasket Generator
0450159
$14,69 Unit Price incl. VAT
2
Bolt Socket
0450138
Not Available
3
Plug Rubber
0450170
$10,49 Unit Price incl. VAT
4
Crankcase RH
0450135
Not Available
5
Pin Dowel
0450137
$3,98 Unit Price incl. VAT
6
Hose Breather
0450136
Not Available
7
Head Breather Hose
0450133
Not Available
8
CIRCLIP
0450161
$10,49 Unit Price incl. VAT
9
Plug Oil
0450153
Not Available
10
O-Ring
0450154
0452394
$3,14 Unit Price incl. VAT
11
Bushing Rubber
0450132
Not Available
12
Crankcase LH
0450131
$278,24 Unit Price incl. VAT
13
Washer
0450156
Not Available
14
Bolt Hex Washer Face
0450298
$4,19 Unit Price incl. VAT
15
Ring Snap Internal
0450162
$10,49 Unit Price incl. VAT
16
Protector Crankcase LH
0450163
Not Available
17
Grommet
0450168
Not Available
18
Bolt Flat Head Phillips
0450167
$9,44 Unit Price incl. VAT
19
Nut Hex Flange
0450150
$2,09 Unit Price incl. VAT
20
Protector B
0450152
Not Available
21
Bolt Socket Hex
0450151
Not Available
22
Cover Crankcase LH
0450146
Not Available
23
Screw Socket Hex
0450148
$7,34 Unit Price incl. VAT
24
Tube Breather
0450674
$20,99 Unit Price incl. VAT
25
PIN DOWEL
0450142
$7,34 Unit Price incl. VAT
26
Cover Mission
0450139
Not Available
27
Gasket Cover Mission
0450140
$7,34 Unit Price incl. VAT
28
Bracket Oil Seal
0450157
Not Available
29
Bolt Socket Hex
0450158
$10,49 Unit Price incl. VAT
30
Bolt Pan Head
0450143
$2,09 Unit Price incl. VAT
31
Bolt Socket Hex
0450039
$7,34 Unit Price incl. VAT
32
Gasket Crankcase Cover LH
0450141
$57,74 Unit Price incl. VAT
33
Shaft Pin
0450147
Not Available
34
Bracket Carburetor Tube
0450160
0455052
$9,44 Unit Price incl. VAT
35
Duct
0450707
$68,24 Unit Price incl. VAT
36
Filter
0450164
$15,00 Unit Price incl. VAT
37
Protector A
0450166
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
