1
Engine displacement
500
2
Year
2013
3
Trim
SPORTSMAN FOREST 500 - A13MH50FF/FJ/FU
4
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE MOUNTING
5
Parts Diagram
Parts Catalog
FRONT BRAKE BRAKE LINES
by
DRIVE TRAIN, FRONT PROP SHAFT

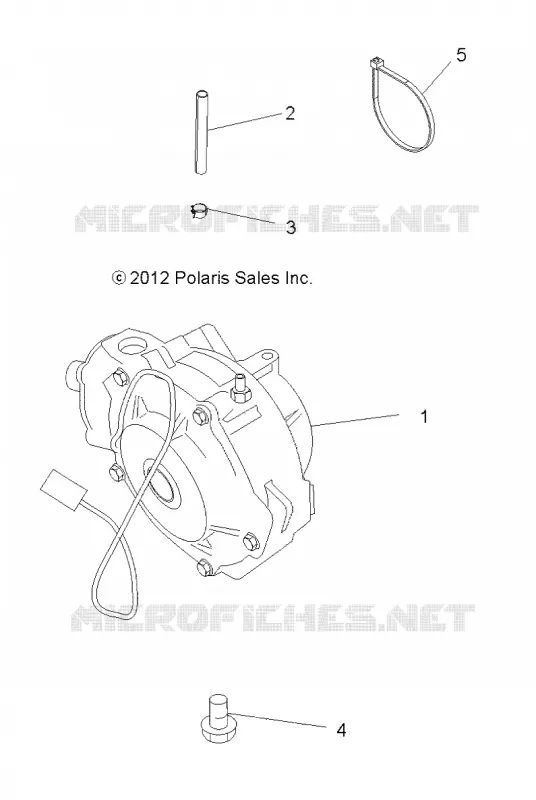

DRIVE TRAIN, FRONT GEARCASE MOUNTING
1
2
3
4
5
1
2
3
4
5
5
1
Asm. Gearcase AWD
1333067
$3 008,24 Unit Price incl. VAT
2
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
3
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
4
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
$10,49 Unit Price incl. VAT
5
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
