1
Engine displacement
500
2
Year
2013
3
Trim
SPORTSMAN FOREST 500 - A13MH50FF/FJ/FU
4
Parts Catalog

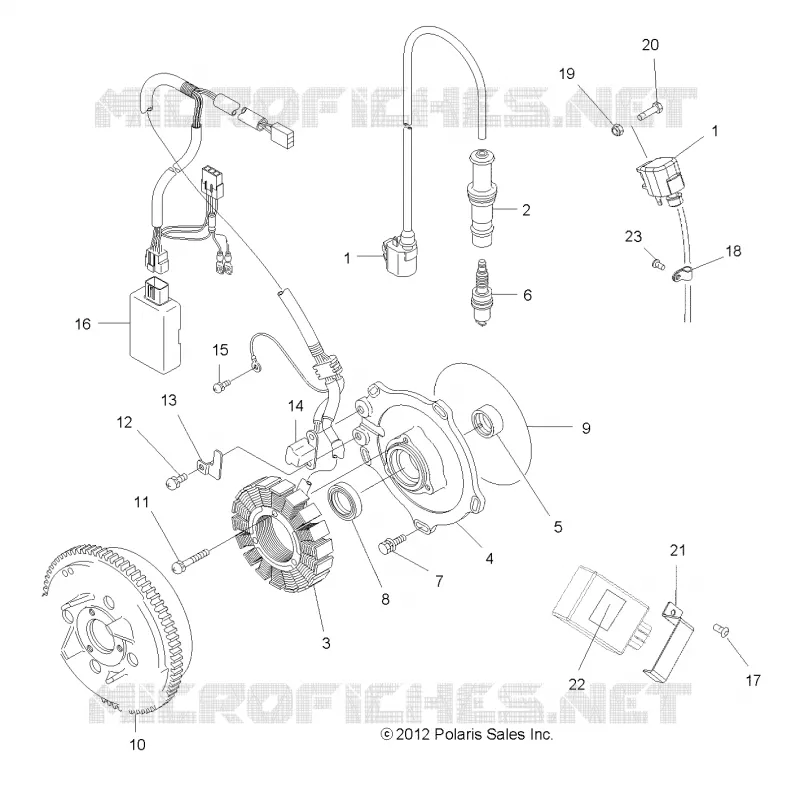

IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
BATTERY
by
SWITCHES, SENSORS AND ECM
IGNITION SYSTEM
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Asm. Ignition Coil [Incl. 1 2][4x4][6x6]
3089239
$388,49 Unit Price incl. VAT
2
CAP SPARKPLUG *
3084980
$115,49 Unit Price incl. VAT
3
Stator [Incl. 13]
3089546
Not Available
4
Plate
3089248
Not Available
4
Asm. Plate [Incl. 5 6 8-10 12-15]
3090061
Not Available
5
BEARING METAL
3084972
Not Available
6
Plug Spark
3070172
$7,34 Unit Price incl. VAT
7
BOLT&WASHER ASM.
3083361
Not Available
8
SEAL OIL
3084973
$52,49 Unit Price incl. VAT
9
O-RING
3084978
$68,24 Unit Price incl. VAT
10
Flywheel w/Ring Gear
3090239
Not Available
11
Asm. Screw and Washer
3089547
$6,29 Unit Price incl. VAT
12
SCREW&WASHER ASM.
3084976
Not Available
13
Band Pulse
3089250
Not Available
14
Coil Pulser [2x4]
3089254
$204,74 Unit Price incl. VAT
15
SCREW&WASHER ASM(10)
3081256
$6,29 Unit Price incl. VAT
16
CDI System
3090270
Not Available
17
SCR-#10-24 5/8 TAP R TH TX Y
7518284
$4,19 Unit Price incl. VAT
18
CLAMP-CABLE NYLON 5/16#
7080960
$9,44 Unit Price incl. VAT
19
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
20
BOLT
7512007
$7,34 Unit Price incl. VAT
21
Bracket CDI Digital Long
5246747
$15,74 Unit Price incl. VAT
22
PAD
5810317
Not Available
23
Fastener Push
7710561
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
