1
Engine displacement
500
2
Year
2013
3
Trim
SPORTSMAN FOREST 500 - A13MH50FF/FJ/FU
4
Parts Catalog

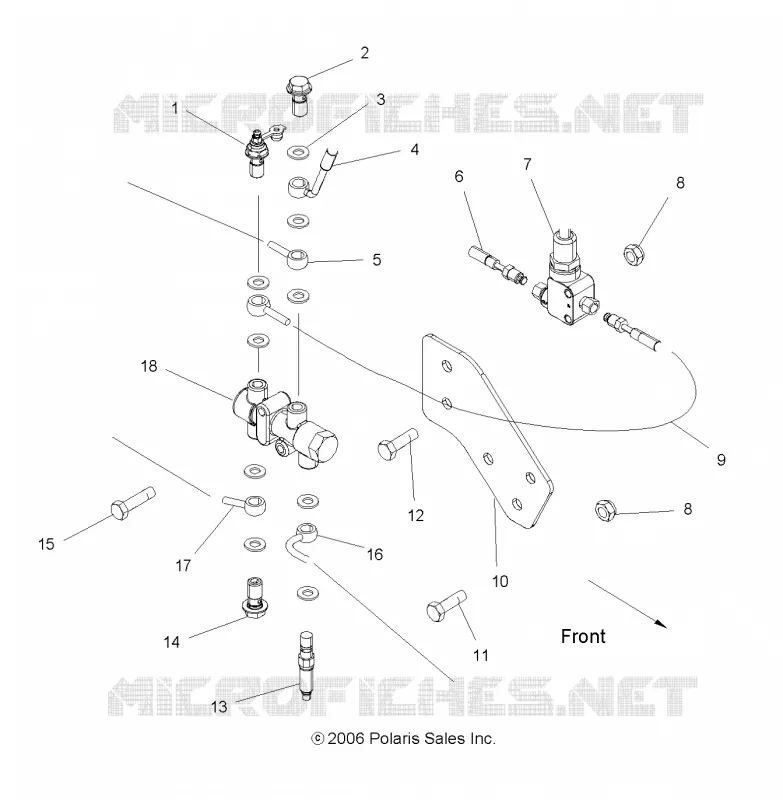

BRAKES, VALVE SYSTEM
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE FRONT BRAKE CALIPER
by
CHASSIS, FRAME
BRAKES, VALVE SYSTEM
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
1
Bolt Banjo w/Bleeder
1911112
$41,99 Unit Price incl. VAT
2
BOLT-DOUBLE BANJO M10X1.25
1911194
$41,99 Unit Price incl. VAT
3
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
4
Line Hand to J/B
1911103
Not Available
5
Line Brake Rear Aux.
1911789
Not Available
6
Line Brake Rear
1911788
Not Available
7
VALVE-REDUCING BRAKE
1911109
$278,24 Unit Price incl. VAT
8
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
9
LINE-BRAKE J/B TO P/VALVE NPT
1911200
$83,99 Unit Price incl. VAT
10
Plate Valve
5250532067
Not Available
11
SCR-HH-1/4-20X1.5 GR5 ZY3
7512126
$9,44 Unit Price incl. VAT
12
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$7,34 Unit Price incl. VAT
13
Switch Pressure Brake
4011478
Not Available
14
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
15
SCR-HH-1/4-20X2.75 GR5 ZY3
7517451
$10,49 Unit Price incl. VAT
16
Line Front Brake
1911183
Not Available
17
Line Brake Foot to J/B
1911345
$136,49 Unit Price incl. VAT
18
Block Distribution Brake Long Piston
1911185
1913923
$125,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
