1
Engine displacement
0
2
Year
1989
3
Trim
TRAIL BOSS 4X4 - W898127
4
Parts Catalog
FRONT DRIVE ASSEMBLY (49173717370011)
5
Parts Diagram
Parts Catalog
FRAME ASSEMBLY WITH RACKS 4X4-UPDATED 4/89 (49173717370003)
by
REAR BRAKE ASSEMBLY 4X4-UPDATED 4/89 (49173717370032)

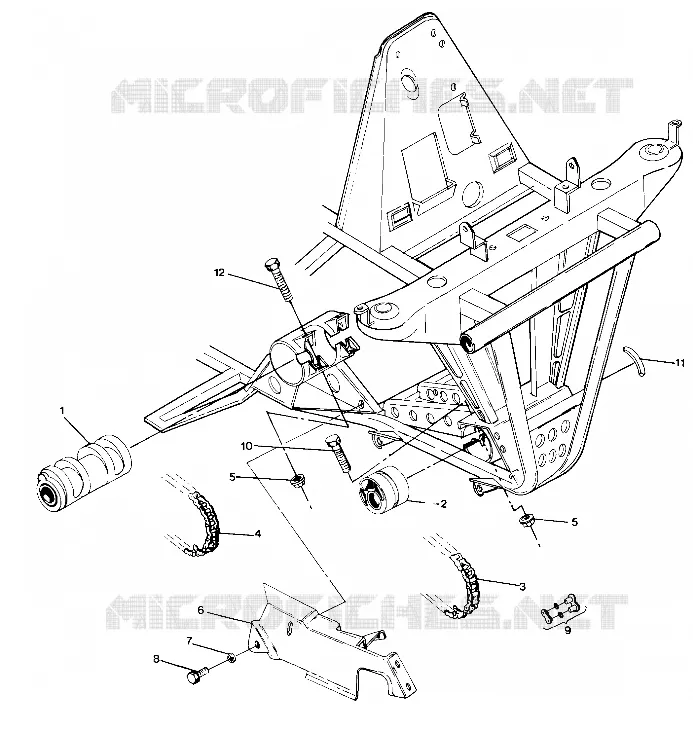

FRONT DRIVE ASSEMBLY (49173717370011)
1
2
3
4
5
5
6
7
8
9
10
11
12
1
TIGHTENER ASM CTR Substituted by 1380129
1380023
Not Available
2
TIGHTENER ASM FRONT
1380024
Not Available
3
CHAIN DRIVE Substituted by 3224056-064
3224041
$194,24 Unit Price incl. VAT
4
CHAIN DRIVE W/CON.
3224039
Not Available
5
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
6
GUARD CHAIN FRONT
5431086
Not Available
7
WASHER(10) Substituted by 7558301
7555776
7558301
$2,09 Unit Price incl. VAT
8
SCREW(10)
7512252
Not Available
9
CONNECTOR LINK
3225024
$47,24 Unit Price incl. VAT
10
BOLT(10)
7512569
Not Available
11
SPACER F.ECCENTRIC Substituted by 5811519
5431095
Not Available
12
BOLT(10)
7512551
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
