1
Engine displacement
0
2
Year
1989
3
Trim
TRAIL BOSS 4X4 - W898127
4
Parts Catalog

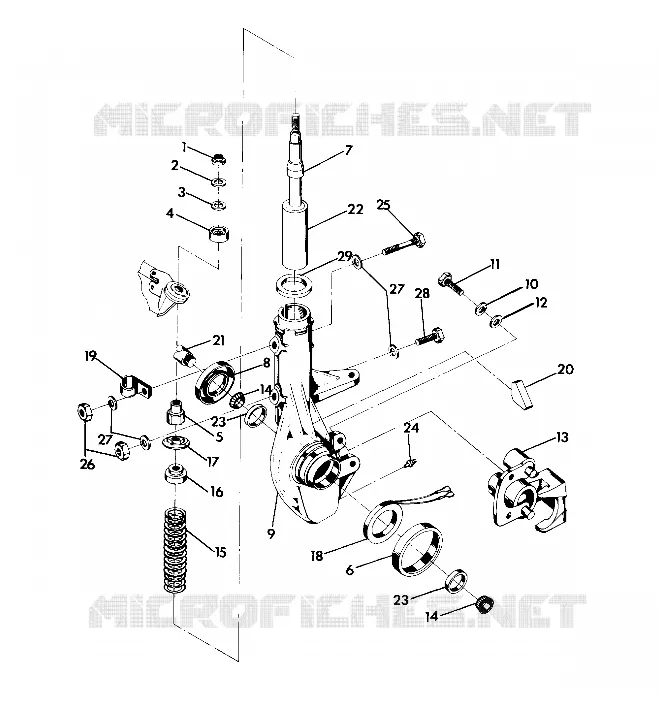

STRUT ASSEMBLY (4916351635019A)
5
Parts Diagram
Parts Catalog
Control Assembly (4916351635017A)
by
DRIVE CLUTCH ASSEMBLY (4916351635028A)
STRUT ASSEMBLY (4916351635019A)
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
13
13
13
14
14
15
16
17
18
19
20
21
22
22
22
22
23
23
24
25
26
28
29
1
NUT FLEX LOC(10)
7542507
Not Available
2
WSHR-.500X1.50-12GA-Y
7555749
$2,09 Unit Price incl. VAT
3
SPACER-RUBBER
5810291
$7,34 Unit Price incl. VAT
4
PIVOT BALL TOP Substituted by 5432872
5430806
5432872
$19,94 Unit Price incl. VAT
5
SPACER THREADED (Before 11/2/98)
5130668
$52,49 Unit Price incl. VAT
6
SLEEVE STRUT HUB SEAL
5222193
$120,74 Unit Price incl. VAT
7
BUMPER RUBBER
5410429
Not Available
8
SEAL HUB STRUT
3610027
Not Available
9
HUBSTRUT ASM LH (Incl. 6 18 20 23 24)
2200316
Not Available
9
HUBSTRUT ASM RH (Incl. 6 18 20 23 24)
2200317
Not Available
10
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
11
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
12
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
13
BRAKE ASM RH FRONT Substituted by 1930664
1930640
Not Available
13
BRAKE ASM LH FRONT Substituted by 1930663
1930639
Not Available
14
BRG TAPER.ROLL.CONE
3554506
$54,59 Unit Price incl. VAT
15
SPRING STRUT RED Substituted by 7041161-093
7041215
Not Available
16
RETAINER SPRING TOP (Before 11/2/98)
5220602
Not Available
17
PIVOT BALL BOTTOM Substituted by 5432871
5430807
5432871
$19,94 Unit Price incl. VAT
18
COIL MAGNETIC
4170003
$120,74 Unit Price incl. VAT
19
CLAMP(10) Substituted by 7080573
7080347
7080573
$13,64 Unit Price incl. VAT
20
RETAINER WIRE STRUT CAST
5810439
Not Available
21
SHAFT DRIVE FRONT
1380020
Not Available
22
STRUT ASM FRONT 25MM.
7041451
Not Available
22
SLEEVE DR.SHAFT SEAL
5222227
Not Available
23
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
24
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
25
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
$9,44 Unit Price incl. VAT
26
NUT FLEX-LOC(10)
7542303
$11,54 Unit Price incl. VAT
28
BOLT(10)
7515334
Not Available
29
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
