1
Engine displacement
570
2
Year
2015
3
Trim
ranger-570-efi-full-size-crew
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
DASH CONTROLS
by
ENGINE, BREATHER

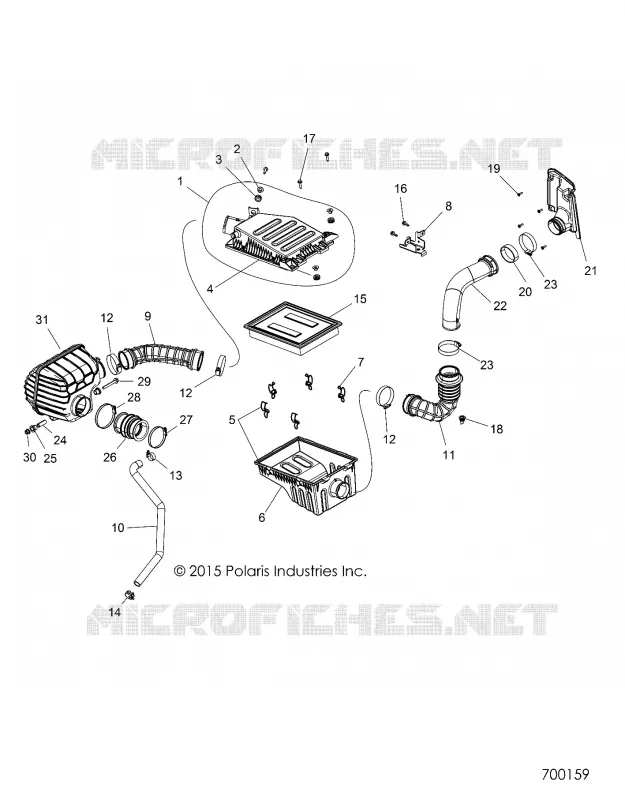

ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
1
ASM. AIRBOX LID [INCL. 1-4]
1240625
$157,49 Unit Price incl. VAT
2
BSHG-FLG 21X10X11
5137652
$5,24 Unit Price incl. VAT
3
GROMMET BASE TOP
5414160
$7,34 Unit Price incl. VAT
4
LID AIRBOX
5439197
1240625
$157,49 Unit Price incl. VAT
5
ASM. AIRBOX MAIN [INCL. 6 7]
1240787
$178,49 Unit Price incl. VAT
6
BASE AIRBOX
5450722
$178,49 Unit Price incl. VAT
7
CLIP-AIRBOX
7081707
$9,44 Unit Price incl. VAT
8
BRACKET AIRBOX MOUNT
5259687
$20,99 Unit Price incl. VAT
9
HOSE INTAKE ENGINE
5415594
$83,99 Unit Price incl. VAT
10
HOSE VENT ENGINE
5415189
Not Available
11
HOSE INTAKE AIRBOX
5414543
$141,74 Unit Price incl. VAT
12
CLAMP HOSE 2.75# SS
7080446
$20,99 Unit Price incl. VAT
13
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
14
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
15
FILTER AIR BOX MAIN
7081706
$57,63 Unit Price incl. VAT
16
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
17
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
18
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
19
SCREW-10X5/8-HI/LO PN-T25 TRX-M
7518238
$7,34 Unit Price incl. VAT
20
HOSE INTAKE BOOT
5414542
$13,64 Unit Price incl. VAT
21
FENDER INTAKE REAR BLACK
5439201070
$125,99 Unit Price incl. VAT
22
DUCT INTAKE AIR
5439947
$83,99 Unit Price incl. VAT
23
CLAMP HOSE 3.25 SS
7080439
$17,84 Unit Price incl. VAT
24
SHAFT-COMPRESSION LMTR 34.4MM
5138987
$31,49 Unit Price incl. VAT
25
BUSHING-MOUNT
5414719
$5,24 Unit Price incl. VAT
26
BOOT THROTTLE BODY
5415201
$73,49 Unit Price incl. VAT
27
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
28
CLAMP-BAND NARROW 70-90MM
7081279
$5,76 Unit Price incl. VAT
29
SCR-HXFL-M8X1.25X60 8.8 ZOD
7519298
$7,34 Unit Price incl. VAT
30
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
31
INTAKE PLENUM
1240883
1241407
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
