1
Engine displacement
570
2
Year
2015
3
Trim
ranger-570-efi-full-size-crew
4
Parts Catalog

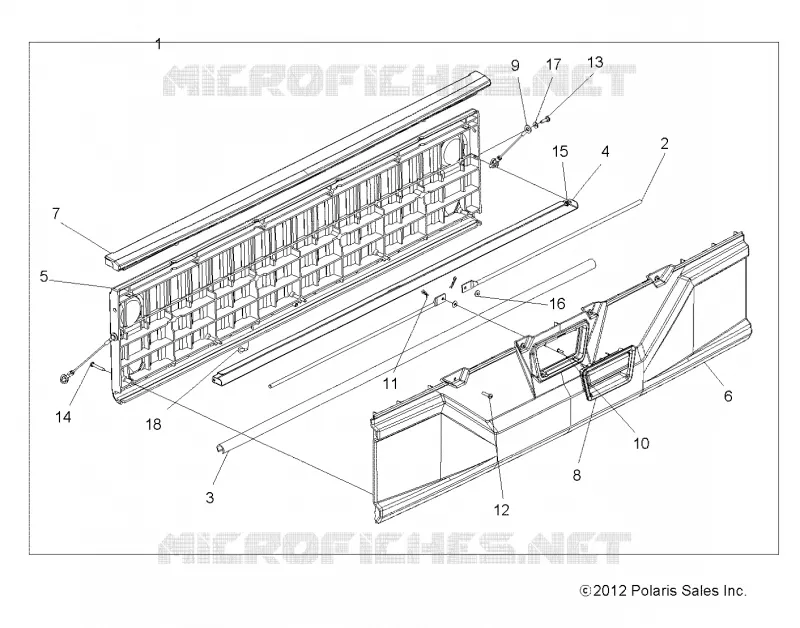

TAILGATE
5
Parts Diagram
Parts Catalog
SIDE NETS
by
STORAGE
TAILGATE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
ROD-TAILGATE
5134468
$47,24 Unit Price incl. VAT
3
TUBE TAILGATE PIVOT
5337426
5337426-329
$157,49 Unit Price incl. VAT
4
BRKT-TAILGATE GALV
5258200
$73,49 Unit Price incl. VAT
5
PANEL-TAILGATE INNER BLK
5450711070
$157,49 Unit Price incl. VAT
6
PANEL-TAILGATE OUTER BLK
5439114070
$141,74 Unit Price incl. VAT
7
CAP-TAILGATE BLK
5439203070
$99,74 Unit Price incl. VAT
8
LATCH-PADDLE
7081820
$152,24 Unit Price incl. VAT
9
CABLE-TAILGATE
7081925
$68,24 Unit Price incl. VAT
10
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
11
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
12
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
13
SCR-RHCAR-1/4-20X1 STL ZY3
7518376
$7,34 Unit Price incl. VAT
14
SCR-TXPH-#14X1.75 HI/LO RIE
7519150
$7,34 Unit Price incl. VAT
15
NUT-HEX-1/4-20 NTE ZY3 NYL
7547484
$7,34 Unit Price incl. VAT
16
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$9,44 Unit Price incl. VAT
17
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
18
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
