1
Engine displacement
570
2
Year
2015
3
Trim
ranger-570-efi-full-size-crew
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUALS
by
REAR SUSPENSION SHOCK

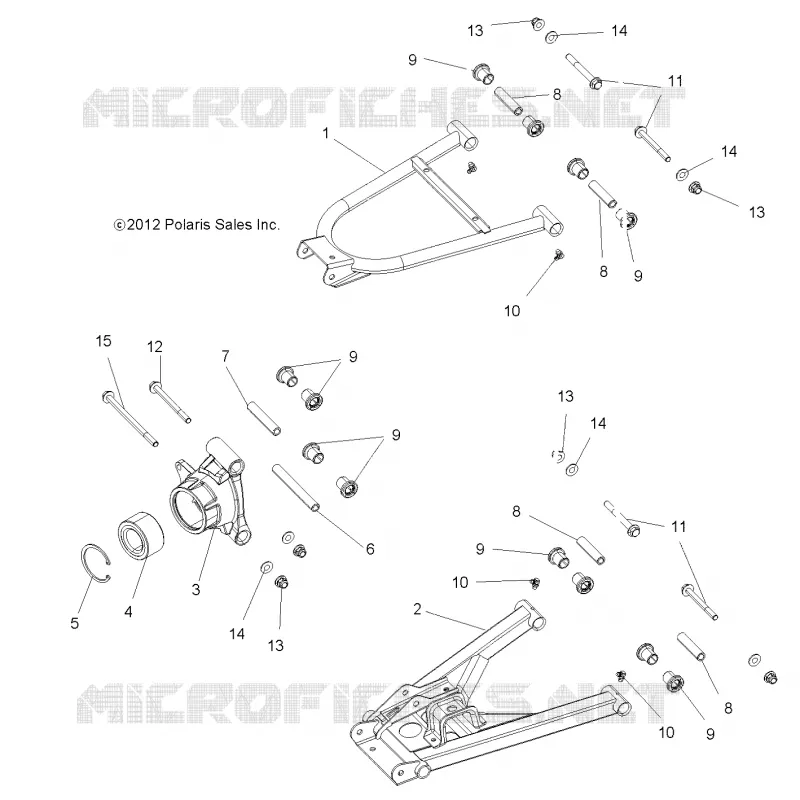

REAR SUSPENSION
1
1
2
2
3
3
4
5
6
7
8
8
8
8
9
9
9
9
9
9
10
10
10
11
11
12
13
13
13
13
14
14
14
14
15
1
ARM CONTROL REAR UPPER RH MATTE BLACK
1018466458
$257,24 Unit Price incl. VAT
1
ARM CONTROL REAR UPPER LH MATTE BLACK
1018465458
$257,24 Unit Price incl. VAT
2
ARM CONTROL REAR LOWER RH MATTE BLACK
1018461458
$367,49 Unit Price incl. VAT
2
ARM CONTROL REAR LOWER LH MATTE BLACK
1018460458
$367,49 Unit Price incl. VAT
3
CARRIER-BEARING WHEEL RH(MACH)
5138053
$404,24 Unit Price incl. VAT
3
CARRIER-BEARING WHEEL LH(MACH)
5138052
$404,24 Unit Price incl. VAT
4
BEARING-WHEEL 40X74X40MM
3514635
$73,49 Unit Price incl. VAT
5
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
6
SHAFT-PIVOT 139.1MM 15.88OD
5138796
$23,09 Unit Price incl. VAT
7
SHAFT-PIVOT 89.71MM 15.88OD
5138794
$10,49 Unit Price incl. VAT
8
SHAFT-PIVOT 70.99MM 15.88OD
5138797
$16,79 Unit Price incl. VAT
9
BUSHING-STANDARD ORV
5439874
$4,19 Unit Price incl. VAT
10
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
11
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
$17,84 Unit Price incl. VAT
12
SCR-HXFL-M10X1.25X115 10.9 ZOD
7519365
$25,19 Unit Price incl. VAT
13
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
14
WASHER
7556153
$3,66 Unit Price incl. VAT
15
SCR-HXFL-M10X1.25X165 10.9 ZOD
7519042
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
