1
Engine displacement
0
2
Year
1988
3
Trim
TRAIL BOSS 4X4 - W888127
4
Parts Catalog

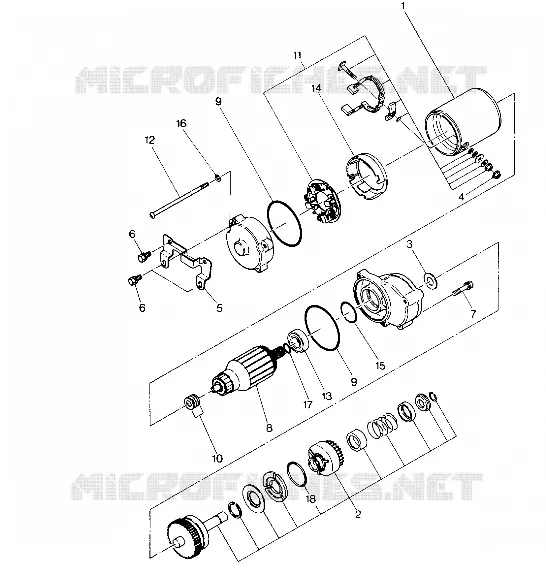

STARTING MOTOR ASSEMBLY (4914761476042A)
5
Parts Diagram
Parts Catalog
CARBURETOR ASSEMBLY (4914761476041A)
by
MAGNETO ASSEMBLY (4914761476043A)
STARTING MOTOR ASSEMBLY (4914761476042A)
11
12
13
14
15
16
17
18
1
STARTER MOTOR ASM. Substituted by 3084403 (Incl. 3-7 10-12 17 18)
3083760
Not Available
2
GEAR SHAFT ASM. Substituted by 3085394
3083647
$456,74 Unit Price incl. VAT
3
WASHER GEARSHAFT Substituted by 7555908
3083737
7556994
$6,29 Unit Price incl. VAT
4
NUT FLANGE(10)
3083649
$7,34 Unit Price incl. VAT
5
BRACKET
3083650
Not Available
6
BOLT & WASHER(10) Substituted by 3081645
3083231
Not Available
7
ASM. BOLT AND WASHER
3082038
$7,34 Unit Price incl. VAT
8
ARMATURE ASM.
3083776
$307,64 Unit Price incl. VAT
9
RING RUBBER
3083738
Not Available
10
WASHER SET
3083754
$4,19 Unit Price incl. VAT
11
BRUSH ASM.
3083728
Not Available
12
BOLT THROUGH
3083739
Not Available
13
BALL BEARING
3083777
$54,59 Unit Price incl. VAT
14
HOLDER BRUSH
3083740
Not Available
15
O RING
3083741
Not Available
16
WASHER SPRING(10)
3083133
Not Available
17
O RING
3083934
Not Available
18
SPRING RETURN Substituted by 3084411
3083896
$25,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
