OIL PUMP LITE 0963433, EURO LITE E963433 AND LITE DELUXE 0963431 (4931663166C008) FOR LITE - 0963433 FROM 1996

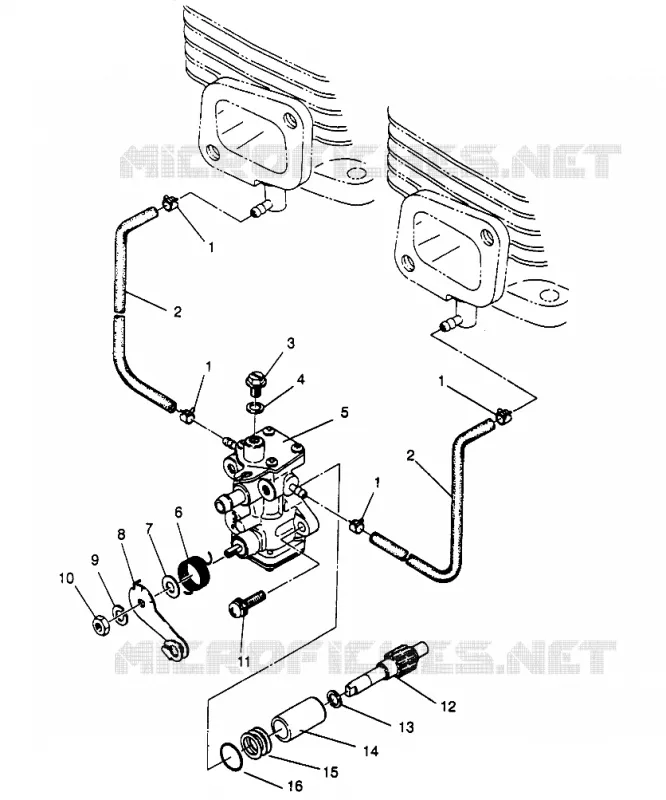

OIL PUMP LITE 0963433, EURO LITE E963433 AND LITE DELUXE 0963431 (4931663166C008)

1

CLAMP HOSE

3083141

$2,09 Unit Price incl. VAT

2

ASM. PIPE VINYL

3084467

$20,99 Unit Price incl. VAT

3

SCREW-AIR VENT

3083125

Not Available

4

PACKING(10)

3083126

$7,34 Unit Price incl. VAT

5

PUMP OIL (Incl. 2-9)

3084255

Not Available

6

SPRING-RETURN

3083123

Not Available

7

COLLAR CAM SHAFT

3083445

$4,19 Unit Price incl. VAT

8

LEVER CONTROL

3084256

$51,54 Unit Price incl. VAT

9

WASHER SPRING

3083121

$614,24 Unit Price incl. VAT

10

NUT

3083120

$6,29 Unit Price incl. VAT

11

SCREW&WASHER (10)

3083783

$4,19 Unit Price incl. VAT

12

GEAR SMALL

3083600

Not Available

13

SPACER

3083130

$3,14 Unit Price incl. VAT

14

BUSHING (OIL PUMP)

3083599

$35,90 Unit Price incl. VAT

15

SPACER 3 .6MM

3083673

$8,39 Unit Price incl. VAT

15

SPACER 2 .3MM

3083672

$6,29 Unit Price incl. VAT

15

SPACER 1 .15MM

3083671

$6,29 Unit Price incl. VAT

16

O RING

3083127

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
