Parts Catalog
CARBURETOR LITE 0963433, EURO LITE E963433 AND LITE DELUXE 0963431 (4931663166C007)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT LITE 0963433, EURO LITE E963433 AND LITE DELUXE 09634 (4931663166C006)
by
OIL PUMP LITE 0963433, EURO LITE E963433 AND LITE DELUXE 0963431 (4931663166C008)

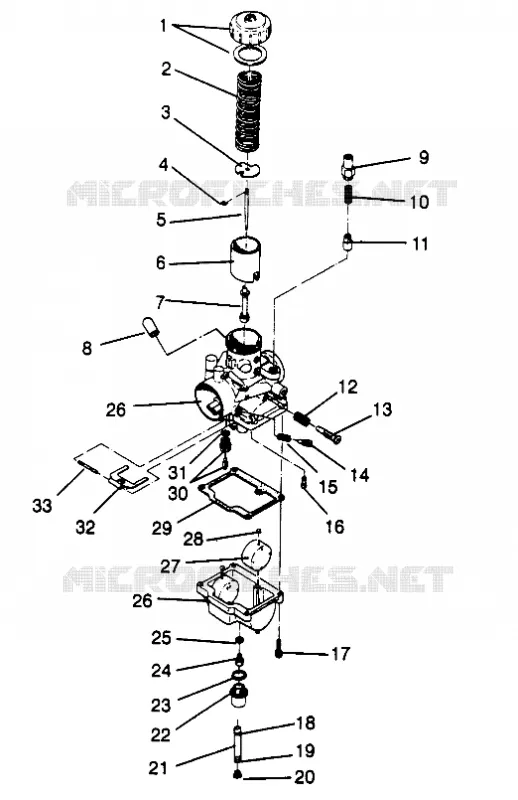

CARBURETOR LITE 0963433, EURO LITE E963433 AND LITE DELUXE 0963431 (4931663166C007)
1
TOP MIX CHAMBER (Incl. 3)
3130060
Not Available
2
SPRING THROTTLE
3130354
$62,99 Unit Price incl. VAT
3
PLATE THROTTLE
3130002
$47,24 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE Substituted by 3130155
3130356
3130155
$52,49 Unit Price incl. VAT
6
VALVE THROTTLE 2.5 (2.5AL)
3130468
$73,49 Unit Price incl. VAT
7
NEEDLE JET O-6 (169)
3130469
$68,24 Unit Price incl. VAT
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
CAP PLUNGER
3130359
$31,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
12
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130324
$36,74 Unit Price incl. VAT
14
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
15
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
16
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
17
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
18
CLAMP HOSE
7080534
$3,14 Unit Price incl. VAT
19
CLAMP HOSE(10)
7080544
Not Available
20
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
21
FUEL LINE 5 FT.
8450045153
8450123-153
$157,49 Unit Price incl. VAT
22
FITTING SEDIMENT Substituted by 3130573
5020476
$18,68 Unit Price incl. VAT
23
O-RING
3130239
Not Available
24
JET MAIN HX.HD.#145 (#145)
3130112
Not Available
25
WASHER
3130014
$3,14 Unit Price incl. VAT
26
CARBURETOR (LITE) Substituted by 3130688 (Incl. 1-16 21-32)
3130467
Not Available
27
FLOAT ASM
3130021
$83,99 Unit Price incl. VAT
28
CAP
3130237
$8,39 Unit Price incl. VAT
29
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
30
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
31
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
32
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
33
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
