1
Engine displacement
0
2
Year
1996
3
Trim
LITE - 0963433
4
Parts Catalog
BLOWER HOUSING RECOIL LITE 0963433, EURO LITE E963433 AND LITE DELUXE 096 (4931663166C011)
5
Parts Diagram
Parts Catalog
FUEL PUMP LITE 0963433, EURO LITE E963433 AND LITE DELUXE 0963431 (4931663166C010)
by
STARTING MOTOR LITE DELUXE 0963431 (4931663166C012)

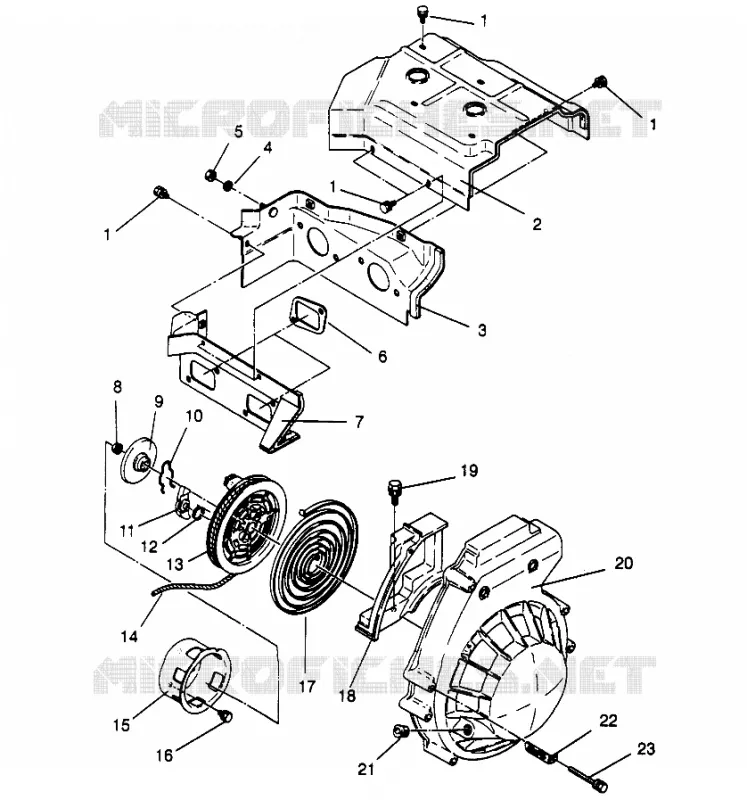

BLOWER HOUSING RECOIL LITE 0963433, EURO LITE E963433 AND LITE DELUXE 096 (4931663166C011)
1
BOLT&WASHER ASM(10)
3083715
Not Available
2
BAFFLE#1 CYL.
3084420
Not Available
3
BAFFLE#2 CYL.
3084421
$106,56 Unit Price incl. VAT
4
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
5
NUT(10)
3084375
Not Available
6
GASKET INTAKE Substituted by 3085846
3084024
Not Available
7
BAFFLE CYL.#3 Substituted by 3085847
3084423
$119,16 Unit Price incl. VAT
8
NUT FLANGE
3083381
Not Available
9
PLATE FRICTION
3083464
Not Available
10
SPRING FRICTION
3083379
$52,49 Unit Price incl. VAT
11
RATCHET
3083378
$36,74 Unit Price incl. VAT
12
SPRING RETURN
3083463
$8,39 Unit Price incl. VAT
13
ASM. REEL
3083377
$104,99 Unit Price incl. VAT
14
ROPE STARTER
2870621
$47,24 Unit Price incl. VAT
15
PULLEY-STARTING
3083108
Not Available
16
BOLT (10)
3081665
$6,29 Unit Price incl. VAT
17
SPRING SPIRAL
3083376
3023393
$278,24 Unit Price incl. VAT
18
HOUSING BLOWER#2
3083591
$27,92 Unit Price incl. VAT
19
BOLT & WASHER
3081663
$2,09 Unit Price incl. VAT
20
CASE STARTER
3083589
$238,34 Unit Price incl. VAT
20
RECOIL STARTER (Incl. 1-10)
3083588
Not Available
21
BUSHING ROPE SLIDE
3083107
3040171
$6,08 Unit Price incl. VAT
22
CLAMP
3083590
$7,34 Unit Price incl. VAT
23
BOLT&WASHER
3083729
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
