1
Engine displacement
1000
2
Year
2017
3
Trim
RZR 1000 60 INCH EPS
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, MAIN GEARCASE MOUNTING

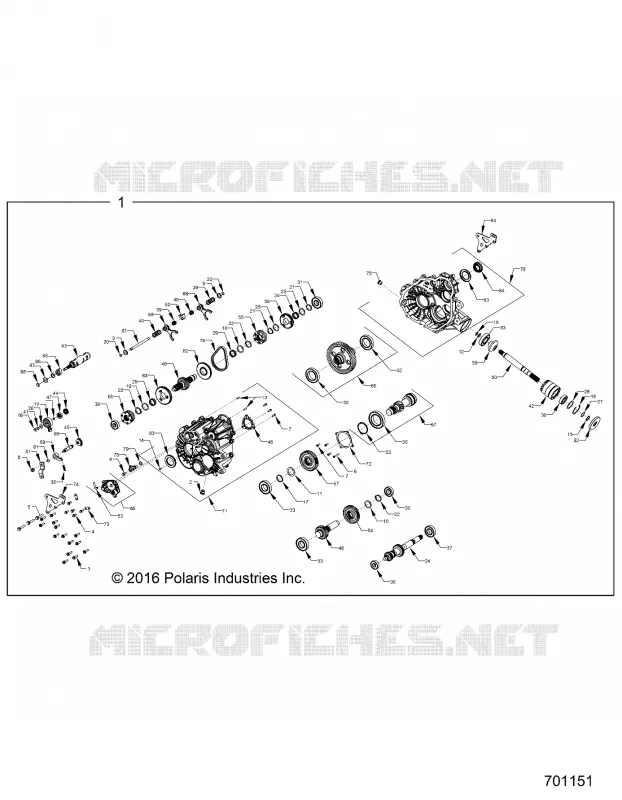

DRIVE TRAIN, MAIN GEARCASE INTERNALS
1
1
2
3
4
4
5
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
22
23
24
25
25
26
27
28
29
29
30
30
31
32
32
33
33
33
34
35
36
36
37
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
68
69
70
71
72
73
74
75
76
77
78
79
81
82
83
83
84
85
86
87
88
1
ASM-GEARCASE COMPLETE [INCL ALL]
1333696
$7 297,49 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
4
SCREW HEX FLANGE HEAD M6 X 1 X 20
3235206
$13,64 Unit Price incl. VAT
5
SCREW HEX FLANGE M8 X 50
3235207
$19,94 Unit Price incl. VAT
6
SCREW SOCKET HEAD CAP M6 X 1.0 X 40
3235208
$20,99 Unit Price incl. VAT
7
SCREW SOCKET HEAD CAP M6 X 1.0 X 18
3235332
$7,34 Unit Price incl. VAT
8
NUT LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$14,69 Unit Price incl. VAT
9
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
10
WASHER-32.3X42X1.5(115288)
3235211
$19,94 Unit Price incl. VAT
11
WASHER-35.6X57X1.5(115289)
3235212
$25,19 Unit Price incl. VAT
12
WASHER-17.3X25X1.5(115290)
3235213
$31,49 Unit Price incl. VAT
13
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
14
PIN SPRING SLOTTED 6 X 12
7043746
$15,74 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
16
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
17
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
18
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
19
RING RETAINING BASIC INTERNAL 2.047
3234269
$17,84 Unit Price incl. VAT
20
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
21
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
22
RING RETAINING BASIC EXTERNAL MSR-32
3235214
$17,84 Unit Price incl. VAT
23
RING-RETAIN VSH-237(130298)
3235216
$19,94 Unit Price incl. VAT
24
SHAFT BOSS LOWER INPUT
3235763
$335,99 Unit Price incl. VAT
25
WASHER THRUST 1.187 X 1.500 X .0600
3233378
$17,84 Unit Price incl. VAT
26
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
27
SHIM 1.180 OD X 0.995 ID
3234272
$68,24 Unit Price incl. VAT
28
SHIM 2.040 OD X 1.63 ID
3234273
$26,24 Unit Price incl. VAT
29
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
30
BEARING
3233019
$54,59 Unit Price incl. VAT
31
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
32
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
33
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
34
BEARING-NEEDLE 30X35X13-CAGED
3233384
$54,59 Unit Price incl. VAT
35
BEARING BALL 6012 C3 60 X 95 X 18
3235218
$101,84 Unit Price incl. VAT
36
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
37
BEARING BALL 6206RSH2 STD 30 X 62 X 16
3235496
$54,59 Unit Price incl. VAT
38
SPRING COMPRESSION 0.36 O.D. X 1.125
3234578
$26,24 Unit Price incl. VAT
39
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
40
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
41
WASHER-SPRING 210393
3235327
$17,84 Unit Price incl. VAT
42
TUBE SNORKEL MACHINED
3234278
$188,99 Unit Price incl. VAT
43
DRUM SHIFT MACH
3235984
$519,74 Unit Price incl. VAT
44
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
45
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
46
PLATE PARK 12 FACE
3235456
$73,49 Unit Price incl. VAT
47
STAR DETENT
3235982
$68,24 Unit Price incl. VAT
48
SHAFT-IDLER 29T(285803)
3235223
$204,74 Unit Price incl. VAT
49
SHAFT REVERS E 29T
3235224
$272,99 Unit Price incl. VAT
50
SHAFT-FRONT OUTPUT(285914)
3235394
$246,74 Unit Price incl. VAT
51
BELLCRANK 92 DEG
3235581
$83,99 Unit Price incl. VAT
52
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
53
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
54
GEAR-44T STAGE2(352842)
3235229
$173,24 Unit Price incl. VAT
55
ENGAGEMENT DOG 6-FACE(352857)
3235233
$241,49 Unit Price incl. VAT
56
GEAR-53T(352858)
3235234
$157,49 Unit Price incl. VAT
57
GEAR-46T STAGE 3(352872)
3235236
$204,74 Unit Price incl. VAT
58
GEAR-13T FRONT OUTPUT(352957)
3235237
$246,74 Unit Price incl. VAT
59
SHAFT-SHIFT(352973)
3235238
$68,24 Unit Price incl. VAT
60
SHIFT DOG PARK/LOW (353357)
3235457
$272,99 Unit Price incl. VAT
61
RAIL-SHIFT SHAFT(353622)
3235542
$52,49 Unit Price incl. VAT
62
SPROCKET-48T 6-FACE REVERSE
3235755
$152,24 Unit Price incl. VAT
63
GEAR LOW 64T
3235774
$152,24 Unit Price incl. VAT
64
WELDMENT REAR MOUNT BRACKET63 [INCL. ALL HARDWARE]
3235399
$89,24 Unit Price incl. VAT
65
SUBASSEMBLY SECTOR COVER
3235713
$209,99 Unit Price incl. VAT
66
SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)
3235335
$645,74 Unit Price incl. VAT
67
SUBASM. SHAFT
3235336
$703,49 Unit Price incl. VAT
68
SUBASSEMBLY SHIFT FORK
3235920
$136,49 Unit Price incl. VAT
69
SUBASSEMBLY PAWL DETENT ROLLER
3235452
$68,24 Unit Price incl. VAT
70
SUBASM. LH CASE [INCL. ALL HARDWARE]
3235491
$1 007,99 Unit Price incl. VAT
71
SUBASSEMBLY RH COVER
3235995
$818,99 Unit Price incl. VAT
72
COVER-BEARING CNTR DR.
3235241
$89,24 Unit Price incl. VAT
73
BRACKET WIRE HARNESS
3235350
$16,79 Unit Price incl. VAT
74
BRACKET MOUNT REAR
3235398
$125,99 Unit Price incl. VAT
75
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
76
CHAIN SILENT TYPE 101 .25P X .40W X 58L
3234737
$314,99 Unit Price incl. VAT
77
SWITCH ROTARY 2 PIN RESISTIVE
7662299
$209,99 Unit Price incl. VAT
78
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
79
O-RING
3234302
$13,64 Unit Price incl. VAT
81
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
82
SEAL TRIPLE LIP VITON 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
83
SEAL TRIPLE LIP VITON HELIX 40X70X7
3235052
$57,74 Unit Price incl. VAT
84
SEAL TRIPLE LIP VITON HELIX 30 X 47
3235495
$73,49 Unit Price incl. VAT
85
CAM PARK
3235983
$283,49 Unit Price incl. VAT
86
SPRING TORSION
3235225
$225,74 Unit Price incl. VAT
87
SPACER 19.4 X 34.0 X 2.0
3235883
$41,99 Unit Price incl. VAT
88
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for RZR 1000 60 INCH EPS

FLOOR AND ROCKER PANELS

FLOOR AND ROCKER PANELS

for RZR 1000 60 INCH EPS from 2017

FUEL TANK

FUEL TANK

for RZR 1000 60 INCH EPS from 2017

SEAT BELT MOUNTING

SEAT BELT MOUNTING

for RZR 1000 60 INCH EPS from 2017

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, FRONT GEARCASE (TO 11/1/16)

DRIVE TRAIN, FRONT GEARCASE (TO 11/1/16)

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RZR 1000 60 INCH EPS from 2017

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

for RZR 1000 60 INCH EPS from 2017

CAM CHAIN AND TENSIONER

CAM CHAIN AND TENSIONER

for RZR 1000 60 INCH EPS from 2017

DOORSS

DOORSS

for RZR 1000 60 INCH EPS from 2017

FRONT BUMPER

FRONT BUMPER

for RZR 1000 60 INCH EPS from 2017

BRAKES, BRAKE LINES AND MASTER CYLINDER

BRAKES, BRAKE LINES AND MASTER CYLINDER

for RZR 1000 60 INCH EPS from 2017

BRAKES, PEDAL AND MASTER CYLINDER

BRAKES, PEDAL AND MASTER CYLINDER

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, REAR HALF SHAFT

for RZR 1000 60 INCH EPS from 2017

ELECTRICAL, BATTERY

ELECTRICAL, BATTERY

for RZR 1000 60 INCH EPS from 2017

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM

for RZR 1000 60 INCH EPS from 2017

CYLINDER AND PISTON

CYLINDER AND PISTON

for RZR 1000 60 INCH EPS from 2017

ENGINE, OIL DIPSTICK

ENGINE, OIL DIPSTICK

for RZR 1000 60 INCH EPS from 2017

ENGINE, THROTTLE PEDAL

ENGINE, THROTTLE PEDAL

for RZR 1000 60 INCH EPS from 2017

FRONT SUSPENSION CARRIER

FRONT SUSPENSION CARRIER

for RZR 1000 60 INCH EPS from 2017

SUSPENSION, FRONT SHOCK INTERNALS

SUSPENSION, FRONT SHOCK INTERNALS

for RZR 1000 60 INCH EPS from 2017

SUSPENSION, REAR STABILIZER BAR

SUSPENSION, REAR STABILIZER BAR

for RZR 1000 60 INCH EPS from 2017

WHEELS, REAR

WHEELS, REAR

for RZR 1000 60 INCH EPS from 2017

ENGINE, CRANKCASE AND CRANKSHAFT

ENGINE, CRANKCASE AND CRANKSHAFT

for RZR 1000 60 INCH EPS from 2017

ENGINE, OIL PUMP AND OIL COOLER

ENGINE, OIL PUMP AND OIL COOLER

for RZR 1000 60 INCH EPS from 2017

ENGINE, STATOR AND COVER

ENGINE, STATOR AND COVER

for RZR 1000 60 INCH EPS from 2017

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RZR 1000 60 INCH EPS from 2017

SUSPENSION, FRONT SHOCK MOUNTING

SUSPENSION, FRONT SHOCK MOUNTING

for RZR 1000 60 INCH EPS from 2017

SUSPENSION, REAR SHOCK MOUNTING

SUSPENSION, REAR SHOCK MOUNTING

for RZR 1000 60 INCH EPS from 2017

WHEELS, FRONT

WHEELS, FRONT

for RZR 1000 60 INCH EPS from 2017

BODY, PASSENGER GRAB BAR

BODY, PASSENGER GRAB BAR

for RZR 1000 60 INCH EPS from 2017

HOOD AND FRONT BODY WORK

HOOD AND FRONT BODY WORK

for RZR 1000 60 INCH EPS from 2017

REAR BODYWORK RACK AND FENDERS

REAR BODYWORK RACK AND FENDERS

for RZR 1000 60 INCH EPS from 2017

SEAT ASM. AND SLIDER

SEAT ASM. AND SLIDER

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE INTERNALS

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for RZR 1000 60 INCH EPS from 2017

ENGINE, CYLINDER HEAD AND VALVES

ENGINE, CYLINDER HEAD AND VALVES

for RZR 1000 60 INCH EPS from 2017

ENGINE, EXHAUST SYSTEM

ENGINE, EXHAUST SYSTEM

for RZR 1000 60 INCH EPS from 2017

ENGINE, INTAKE AND THROTTLE BODY

ENGINE, INTAKE AND THROTTLE BODY

for RZR 1000 60 INCH EPS from 2017

ENGINE, MOUNTING

ENGINE, MOUNTING

for RZR 1000 60 INCH EPS from 2017

SUSPENSION, FRONT STABILIZER BAR

SUSPENSION, FRONT STABILIZER BAR

for RZR 1000 60 INCH EPS from 2017

SUSPENSION, REAR CARRIER

SUSPENSION, REAR CARRIER

for RZR 1000 60 INCH EPS from 2017

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for RZR 1000 60 INCH EPS from 2017

SUSPENSION, REAR SHOCK INTERNALS

SUSPENSION, REAR SHOCK INTERNALS

for RZR 1000 60 INCH EPS from 2017

DASHBOARD AND GLOVEBOX

DASHBOARD AND GLOVEBOX

for RZR 1000 60 INCH EPS from 2017

DECALS

DECALS

for RZR 1000 60 INCH EPS from 2017

BRAKES, REAR CALIPER

BRAKES, REAR CALIPER

for RZR 1000 60 INCH EPS from 2017

CHASSIS, CAB FRAME

CHASSIS, CAB FRAME

for RZR 1000 60 INCH EPS from 2017

CHASSIS, MAIN FRAME AND SKID PLATE

CHASSIS, MAIN FRAME AND SKID PLATE

for RZR 1000 60 INCH EPS from 2017

CHASSIS, MAIN FRAME MOUNTS

CHASSIS, MAIN FRAME MOUNTS

for RZR 1000 60 INCH EPS from 2017

ELECTRICAL, HEADLIGHTS AND TAILLIGHTS

ELECTRICAL, HEADLIGHTS AND TAILLIGHTS

for RZR 1000 60 INCH EPS from 2017

ELECTRICAL, WIRE HARNESS

ELECTRICAL, WIRE HARNESS

for RZR 1000 60 INCH EPS from 2017

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RZR 1000 60 INCH EPS from 2017

ENGINE, BREATHER

ENGINE, BREATHER

for RZR 1000 60 INCH EPS from 2017

ENGINE, VALVE COVER, SPARKPLUGS AND WIRES

ENGINE, VALVE COVER, SPARKPLUGS AND WIRES

for RZR 1000 60 INCH EPS from 2017

REFERENCE, OWNERS MANUAL AND TOOL KIT

REFERENCE, OWNERS MANUAL AND TOOL KIT

for RZR 1000 60 INCH EPS from 2017

POWER STEERING ASM.

POWER STEERING ASM.

for RZR 1000 60 INCH EPS from 2017

DRIVE TRAIN, FRONT GEARCASE (FROM 11/1/16)

DRIVE TRAIN, FRONT GEARCASE (FROM 11/1/16)

for RZR 1000 60 INCH EPS from 2017

POLARIS RZR 1000 60 INCH EPS 2017

RZR 1000 60 INCH EPS

RZR 1000 60 INCH EPS

Model : RZR 1000 60 INCH EPS

Engine capacity : 1000

Year : 2017

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
