1
Engine displacement
1000
2
Year
2017
3
Trim
RZR 1000 60 INCH EPS
4
Parts Catalog

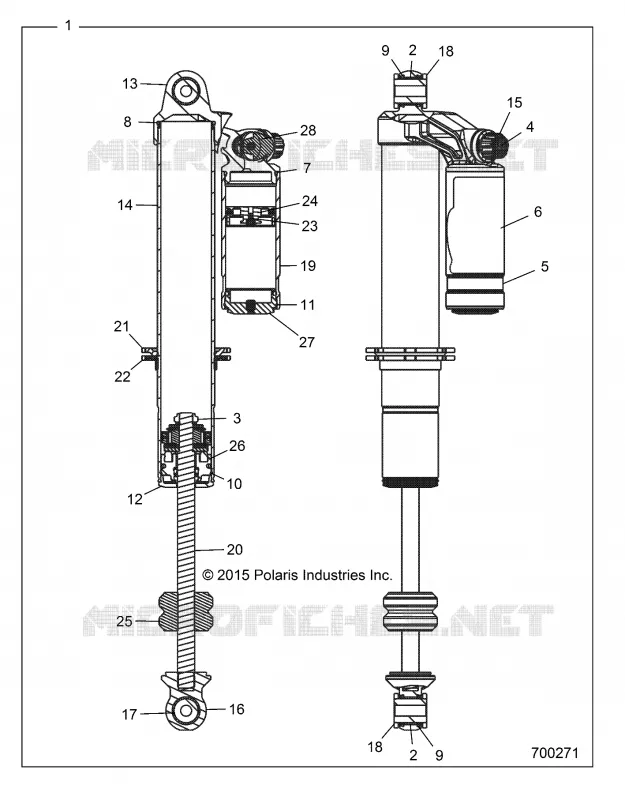

SUSPENSION, FRONT SHOCK INTERNALS
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION CARRIER
by
SUSPENSION, REAR STABILIZER BAR
SUSPENSION, FRONT SHOCK INTERNALS
1
1
1
1
2
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
1
1
2
2
3
3
4
4
5
6
7
7
8
8
8
9
9
10
10
10
11
11
11
12
1
Plate: Top-Out [1.570 OD X 0.503 ID X 0.128 TH Ø 0.620 Shaft]
1500838
Not Available
1
SHOCK-FRONT 2 RESVR PIGGYBK RH
7044650
Not Available
1
SHOCK-FRONT 2 RESVR PIGGYBK LH
7044649
$1 364,99 Unit Price incl. VAT
1
BOTTOM OUT
1500516
$15,74 Unit Price incl. VAT
2
BUSHING EYELET
1501010
$36,74 Unit Price incl. VAT
3
FASTENER STANDARD: NUT LOCK [1/2-20 X 0.313 TLG]
1500842
1500472
$41,99 Unit Price incl. VAT
4
SCREW
1501011
$25,19 Unit Price incl. VAT
5
DECAL-BAND PERF. SERIES
1501012
$29,39 Unit Price incl. VAT
6
DECAL RESERVOIR
1501013
$20,99 Unit Price incl. VAT
7
O-RING-132
1500623
$12,59 Unit Price incl. VAT
8
SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD N-70 STATIC
1500510
$12,59 Unit Price incl. VAT
9
SEAL WEATHER
1501014
$16,79 Unit Price incl. VAT
10
RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS
1500236
$17,84 Unit Price incl. VAT
11
RING-RETAINING WIRE 2.050
1501015
$17,84 Unit Price incl. VAT
12
CAP BEARING
1501100
$73,49 Unit Price incl. VAT
13
BODY CAP PIGGY BACK [USED WITH 7044688]
1501030
$230,99 Unit Price incl. VAT
13
BODY CAP PIGGY BACK [USED WITH 7044687]
1501029
$230,99 Unit Price incl. VAT
14
BODY 1.83X13.1TLG
1501031
$167,99 Unit Price incl. VAT
15
KNOB LOW SPEED
1501019
$20,99 Unit Price incl. VAT
16
EYELET SHAFT
1501032
$136,49 Unit Price incl. VAT
17
EYELET PART: SLEEVE .397 ID X .875 OD X 1.181 TLG
1501087
$41,99 Unit Price incl. VAT
18
EYELET PART: SPACER .876 ID X 1.25 OD X .150 TLG
1501088
$11,54 Unit Price incl. VAT
19
RESERVOIR:0 1.834 BORE 5.000TLG ALUMINUM THREADED ID SHORT OD STEP
1501023
$99,74 Unit Price incl. VAT
20
SHAFT .62X10.1TLG
1501033
$188,99 Unit Price incl. VAT
21
SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG 2.080-14 STUB ACME ID] LOW CARBON STEEL ZINC PLATED
1500872
$89,24 Unit Price incl. VAT
22
SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG 2.080-14 STUB ACME ID] LOW CARBON STEEL ZINC PLATED
1500873
$99,74 Unit Price incl. VAT
23
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE COMPLETE
1500161
$68,24 Unit Price incl. VAT
24
ASM. PISTON FLOAT
1501026
$83,99 Unit Price incl. VAT
25
BUMPER B/O SHAFT
1501028
$47,24 Unit Price incl. VAT
26
ASM. BEARING
1501099
$94,49 Unit Price incl. VAT
27
END CAP-RESERVOIR
1501027
$173,24 Unit Price incl. VAT
28
ASM. DAMPING ADJUSTER LSC
1501034
$194,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
