1
Engine displacement
1000
2
Year
2017
3
Trim
RZR 1000 60 INCH EPS
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, BATTERY
by
CYLINDER AND PISTON

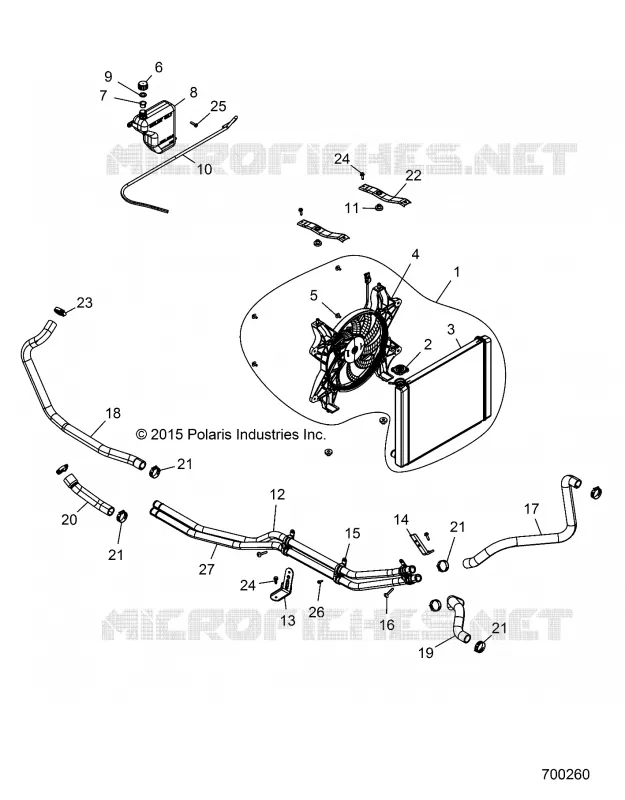

ENGINE, COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
21
22
23
24
24
25
26
27
1
2
2
1
ASM. RADIATOR [INCL. 2-5]
1240712
$1 102,49 Unit Price incl. VAT
2
CAP
1240694
$73,49 Unit Price incl. VAT
3
ASM. RADIATOR CORE
1240745
$892,49 Unit Price incl. VAT
4
FAN-ASSEMBLY
2412447
$472,49 Unit Price incl. VAT
5
BOLT M6X15MM
7519585
$17,84 Unit Price incl. VAT
6
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
7
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
8
TANK-SURGE
5439202
$178,49 Unit Price incl. VAT
9
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
10
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
11
GROMMET-FLANGED .36X.56X1.06
7052028
$11,54 Unit Price incl. VAT
12
TUBE-COOLANT 1#
5139908
5141611
$89,24 Unit Price incl. VAT
13
BRACKET COOLANT TUBE BLACK
5259433329
$52,49 Unit Price incl. VAT
14
BRACKET COOLANT TUBE BLACK
5260766329
$52,49 Unit Price incl. VAT
15
BRACKET-COOLANT TUBE
5451221
$16,79 Unit Price incl. VAT
16
SCR-TXTH-M6X1.0X50 8.8 ZPB
7519001
$7,34 Unit Price incl. VAT
17
HOSE UPPER RADIATOR
5414528
$125,99 Unit Price incl. VAT
18
HOSE ENGINE OUTLET REAR
5415451
$89,24 Unit Price incl. VAT
19
HOSE LOWER RADIATOR LONG
5414532
$89,24 Unit Price incl. VAT
20
HOSE ENGINE INLET REAR
5414533
$68,24 Unit Price incl. VAT
21
SPRINGBAND-CLAMP 35/12 BLK
7080844
$19,94 Unit Price incl. VAT
22
BRACKET UPPER RADIATOR MOUNT BLACK
5256879329
5276397
$62,99 Unit Price incl. VAT
23
CLAMP-HOSE(WORM DR)25-40MM
7081192
$14,69 Unit Price incl. VAT
24
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
25
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
26
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
27
TUBE-COOLANT 1#
5139909
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
