DRIVE TRAIN, SECONDARY CLUTCH for POLARIS SPORTSMAN 500 HO - A09MH50AS/AX/AZ from 2009

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, REAR DRIVE SHAFT

DRIVE TRAIN, SECONDARY CLUTCH

1

Asm. Driven Clutch EBS Damped [Incl. 6 8 9 11-14 16-19]

1322706

$923,99 Unit Price incl. VAT

2

BUSHING-.906 X 1 3/8 X 16 GA-Y

7556120

$2,09 Unit Price incl. VAT

3

WASHER DOMED SMALL

5250562

$4,19 Unit Price incl. VAT

4

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

5

BOLT(10)

7515327

$10,49 Unit Price incl. VAT

6

RING RETAINING

3234205

$20,99 Unit Price incl. VAT

7

BELT DRIVE EBS

3211113

$128,09 Unit Price incl. VAT

8

RETAINER SPRING INNER

7710564

$115,49 Unit Price incl. VAT

9

WASHER THRUST

7556226

$10,49 Unit Price incl. VAT

10

Asm. Cam

3234356

$734,99 Unit Price incl. VAT

11

Screw Cap

3234192

$8,39 Unit Price incl. VAT

12

RING RETAINING BASIC EXTERNAL

7710522

$25,19 Unit Price incl. VAT

13

ROLLER CLUTCH TORLON

3234207

$89,24 Unit Price incl. VAT

14

RET.E-RING-E T.375-TEAM#130059

7710523

$5,24 Unit Price incl. VAT

15

Spring Compression Red

3234451

$136,49 Unit Price incl. VAT

16

PIN ROLLER

3234201

$31,49 Unit Price incl. VAT

17

ROLLER CLUTCH

3234197

$89,24 Unit Price incl. VAT

18

SPRING CLUTCHPIN SPRING SLOTTED

3234202

$7,34 Unit Price incl. VAT

19

BEARING BALL ANGULAR CONTACT

3234203

$40,94 Unit Price incl. VAT

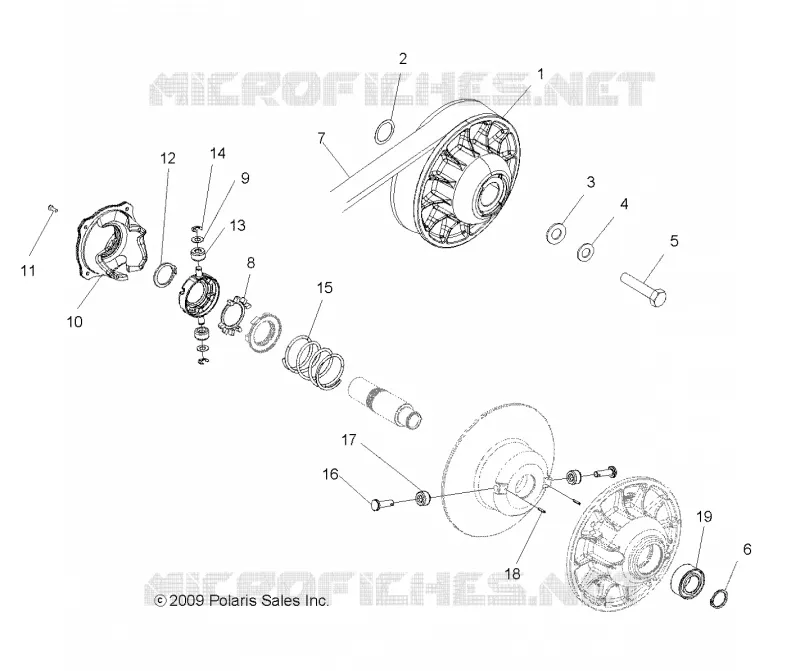

Find the detailed DRIVE TRAIN, SECONDARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
