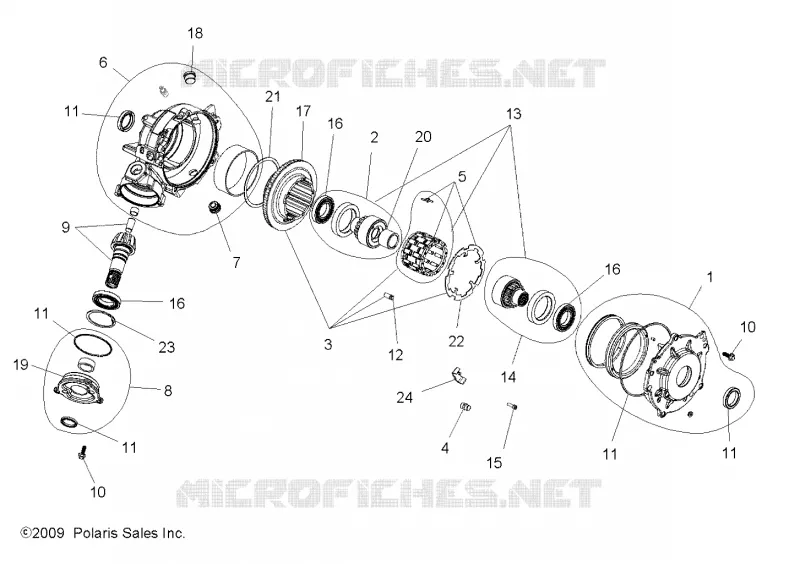

DRIVE TRAIN, FRONT GEARCASE (BUILT 4/14/09 AND AFTER)
5
Parts Diagram
Parts Catalog
WHEELS, REAR TIRE AND BRAKE DISC
by
COOLING SYSTEM (BUILT 4/07/09 AND AFTER)
DRIVE TRAIN, FRONT GEARCASE (BUILT 4/14/09 AND AFTER)
-
1
2
3
4
5
5
6
7
8
9
10
10
11
11
11
11
11
12
13
14
15
16
16
16
17
18
19
20
21
22
23
24
-
Asm. Gearcase Front [Incl. All]
1332772
$3 008,24 Unit Price incl. VAT
1
Asm. Output Cover [Incl. 2-8]
3234402
3236663
$955,49 Unit Price incl. VAT
2
Asm. Hub Output [Incl. 10-13]
3234403
Not Available
3
Asm. Clutch [Incl. Armature Plate Clutch Housing/Ring Gear Roll Cage]
3234897
$532,34 Unit Price incl. VAT
4
Asm. Button Thrust
3234594
Not Available
5
Asm. Roll Cage Aluminum NT [Opt]
3235263
$1 112,99 Unit Price incl. VAT
5
Asm. Roll Cage [Incl. 25 26]
3234466
Not Available
6
Asm. Gearcase [Incl. 8 29 35 36]
3234411
Not Available
7
ASM. DRAIN PLUG MAGNETIC
3234412
$83,99 Unit Price incl. VAT
8
Asm. Cover Input
3234463
3235337
$241,49 Unit Price incl. VAT
9
Asm. Gear Pinion [Incl. 31]
3234415
Not Available
10
Kit Bolt [Incl. 8 Bolts]
3234405
$52,49 Unit Price incl. VAT
11
Kit Seal Repair [Incl. 6 8 22 23]
3234406
$136,49 Unit Price incl. VAT
12
Kit Roll [Incl. 20 Rollers]
3234836
Not Available
13
Kit Cage Springs/Output Hubs [Incl. 12 14 27]
3234464
Not Available
14
Hub Output [Incl. 10 11 25 26]
3234465
Not Available
15
SET SCREW
3234408
$52,49 Unit Price incl. VAT
16
BEARING
3234390
$60,89 Unit Price incl. VAT
17
Clutch Housing
3234896
$480,89 Unit Price incl. VAT
18
PLUG OIL FILL
3234414
3233942
$62,99 Unit Price incl. VAT
19
Cover Input
3234418
3235337
$241,49 Unit Price incl. VAT
20
Bushing
3234436
Not Available
21
SPACER-RING GEAR
3234437
$36,74 Unit Price incl. VAT
22
PLATE ARMATURE
3234407
$209,99 Unit Price incl. VAT
23
Ring Retaining Internal [TO 5/15/2022]
3234416
$19,94 Unit Price incl. VAT
24
Plate Thrust
3234595
Not Available
