DRIVE TRAIN, MAIN GEARCASE MOUNTING FOR SPORTSMAN 500 HO - A09MH50AS/AX/AZ FROM 2009

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, PRIMARY CLUTCH

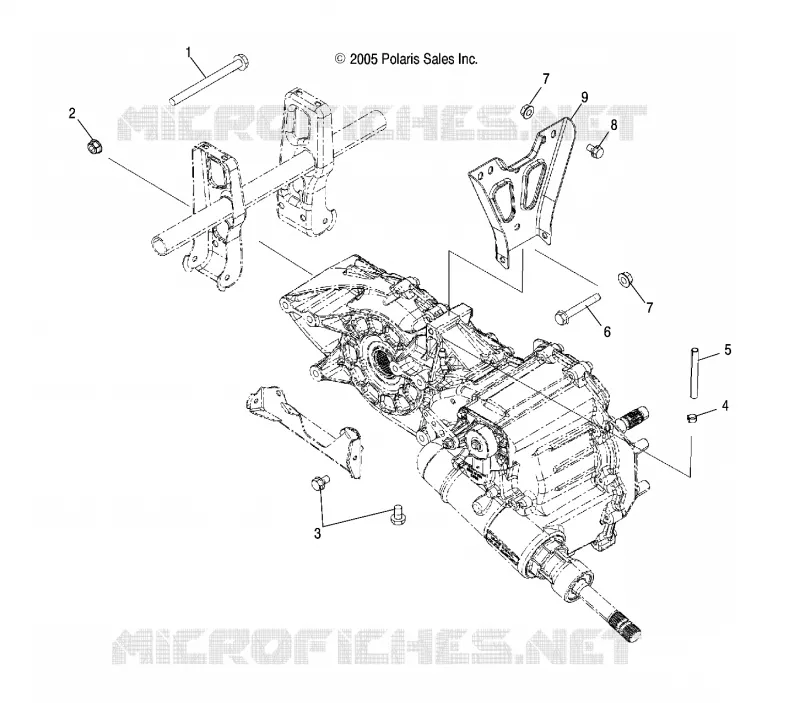

DRIVE TRAIN, MAIN GEARCASE MOUNTING

1

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$13,64 Unit Price incl. VAT

2

NUT-FLANGED 3/8-16 NYLON

7547180

$4,19 Unit Price incl. VAT

3

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$10,49 Unit Price incl. VAT

4

CLAMP-HOSE (LARGE GREEN)

7080307

$1,56 Unit Price incl. VAT

5

HOSE [BULK SVC]

84500031525

$136,49 Unit Price incl. VAT

6

SCR-HH-5/16-18X3.75 GR5 ZY3

7515382

$4,19 Unit Price incl. VAT

7

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

8

SCR-5/16-18X3/4 HX/FLG GR5-Y

7515398

$4,19 Unit Price incl. VAT

9

Support Transmission Upper

5221624067

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
