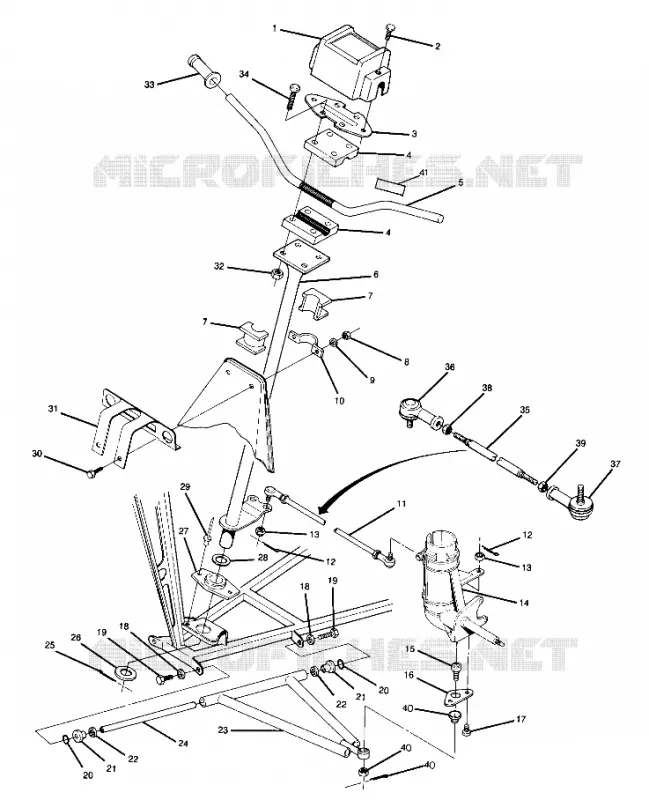

STEERING ASSEMBLY (4916341634011A) FOR TRAIL BOSS 2X4

FUEL TANK ASSEMBLY (4916341634009A)

Control Assembly (4916341634013A)

PAD HANDLEBAR

5810379

$73,49 Unit Price incl. VAT

BOLT(10) Substituted by 7515197

7512286

7515197

$2,09 Unit Price incl. VAT

MOUNT HDLBR. PAD Substituted by 5245051

5220946

$9,23 Unit Price incl. VAT

BLOCK HANDLEBAR Substituted by 5630187-067 (SS)

5630187

$8,39 Unit Price incl. VAT

TUBE HDLBAR.(4WHL) Substituted by 5224316-067

5224316

Not Available

POST STEERING Substituted by 1843028-067

1843028

Not Available

BUSHING STRG. UPPER Substituted by 5431572

5430966

5433416

$16,79 Unit Price incl. VAT

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

BUSHING UPPER STRG. Substituted by 5220887-067

5220887

5257028

$62,99 Unit Price incl. VAT

TIE ROD ASM. Substituted by 1822307

1822070

Not Available

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

NUT CASTLE(10)

7546904

$9,44 Unit Price incl. VAT

SUPPORT LH STRUT&SPINDLE Substituted by 5130803

5130655

Not Available

SUPPORT RH STRUT&SPINDLE Substituted by 5130804

5130656

Not Available

BALL JOINT Substituted by 7080673 (Incl. 32-34)

7080364

7061306

$52,49 Unit Price incl. VAT

BRACKET-BALL JOINT

5211121

$62,99 Unit Price incl. VAT

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$2,09 Unit Price incl. VAT

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

BOLT(10) Substituted by 7512492

7515458

7512492

$2,09 Unit Price incl. VAT

O RING

5410458

Not Available

BEARING #A# ARM Substituted by 2200474

3576509

2200474

$115,49 Unit Price incl. VAT

WASHER(10)

7555774

Not Available

A-FRAME RH Substituted by 1580029-067

1580029

Not Available

A-FRAME LH Substituted by 1580028-067

1580028

Not Available

SHAFT #A# ARM

5020477

Not Available

PIN-COTTER 1/8X1 1/2-Y

7661404

$9,44 Unit Price incl. VAT

BUSHING(10)

7555781

Not Available

BUSHING STRG. LOWER Substituted by 5431570

5430895

Not Available

Bushing

7556401

Not Available

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$2,09 Unit Price incl. VAT

Bolt

7512315

$9,44 Unit Price incl. VAT

BRKT IGN.PANEL Substituted by 5220965-067

5220965

Not Available

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

GRIP HANDLEBAR

5431030

5433834-070

$52,49 Unit Price incl. VAT

BOLT (10)

7512265

$7,34 Unit Price incl. VAT

TIE ROD

5020478

$99,74 Unit Price incl. VAT

ROD END RH Substituted by 7060172

7060138

$115,49 Unit Price incl. VAT

ROD END

7060147

$115,49 Unit Price incl. VAT

NUT RH 10 MM.(10)

7546901

$4,19 Unit Price incl. VAT

NUT LH 10 MM.(10)

7546902

Not Available

KIT BALL JOINT

2200290

Not Available

DECAL O#RIDE SWITCH Substituted by 7076274

7072390

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
