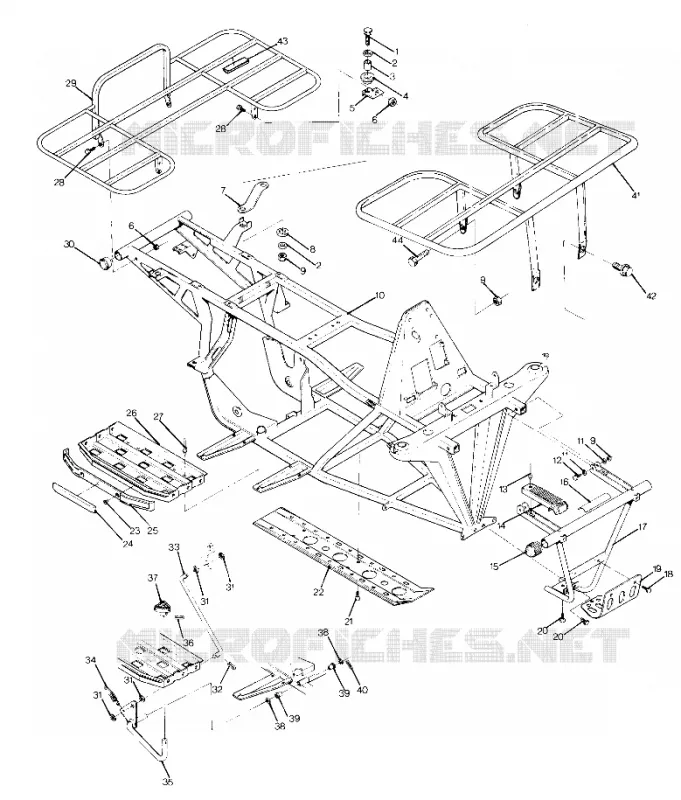

FRAME ASSEMBLY WITH RACKS (4916341634003A) FOR TRAIL BOSS 2X4

BODYWORK (4916341634001A)

ENGINE AND MUFFLER MOUNTING (4916341634005A)

Screw

7515304

$10,49 Unit Price incl. VAT

FLYWHEEL W/RING GEAR

3083939

Not Available

PLATE ASM. (Incl. 2-6 8-14 20)

3083979

Not Available

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

PLATE COIL

3083634

$119,16 Unit Price incl. VAT

HARNESS WIRE

3083978

$159,06 Unit Price incl. VAT

BUSHING-.459 X.625 X.75

5010192

$12,59 Unit Price incl. VAT

COIL EXCITING

3083422

Not Available

DAMPENER

5410241

5412508

$9,44 Unit Price incl. VAT

WASHER

3040151

$13,64 Unit Price incl. VAT

BRKT LH SUPPORT RACK Substituted by 5220899-067

5220899

Not Available

BRKT RH SUPPORT RACK Substituted by 5220901-067

5220901

Not Available

NUT NYLOK(10)

7542327

$9,44 Unit Price incl. VAT

COIL LIGHT(STATOR 1)

3083976

Not Available

SUPPORT R.FENDER Substituted by 5220902-067

5220902

Not Available

WASHER

3083357

$4,19 Unit Price incl. VAT

CLAMP

3081296

Not Available

WASHER RUBBER

5410436

$3,14 Unit Price incl. VAT

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

SCREW & WASHER

3083423

$6,29 Unit Price incl. VAT

FRAME SQUARE(BLACK) Substituted by 1040170-067

1040170

Not Available

SCREW&WASHER ASM.(10)

3083736

$2,09 Unit Price incl. VAT

SCREW&WASHER ASM(10)

3081256

$6,29 Unit Price incl. VAT

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

SCREW&WASHER (10)

3081260

Not Available

SCR-HH-5/16-18X1.75 GR5 ZY3

7512329

$7,34 Unit Price incl. VAT

COUPLER

3083909

$41,99 Unit Price incl. VAT

RIVET(50)

7621229

Not Available

GROMMET

3083773

Not Available

COVER BRKT BUMPER MT.

5431023

$17,21 Unit Price incl. VAT

SCREW&WASHER Substituted by 3086788

3083774

Not Available

CAP BUMPER FR. Substituted by 5431013-093

5431013

Not Available

DECAL FR.SUSPENSION [No Longer Available]

7072701

Not Available

COIL IGNITION *

3083923

Not Available

BUMPER FRONT Substituted by 2670106-067

2670106

Not Available

CAP-SPARK PLUG Substituted by 4020129

3083282

$52,49 Unit Price incl. VAT

SCREW(10)

7512208

$7,34 Unit Price incl. VAT

CDI UNIT *

3083977

Not Available

SKID-PLATE FR.BUMPER

5220981

Not Available

SCREW(10)

7512399

$10,49 Unit Price incl. VAT

SCR-TFHFL-1/4-20X0.75 CHS ZY3

7512232

$2,09 Unit Price incl. VAT

GUARD ROCK Substituted by 5220922-067

5220922

Not Available

RIVET SEMI-TUBE (50)

7661812

Not Available

REFLECTOR AMBER

2670071

Not Available

RUBRAIL (FOOTREST) Substituted by 5431484

5431019

Not Available

PAD FOOT LH. Substituted by 1040274-117

1040189

$132,29 Unit Price incl. VAT

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$2,09 Unit Price incl. VAT

SCREW PAN HD PHILLIPS(10) Substituted by 7515355

7515341

Not Available

RACK REAR Substituted by 2670110-067

2670110

Not Available

CAP BUMPER 4 WHL.(10) Substituted by 5410794

5430823

Not Available

WASHER-.5X.262X.06(16 GA)-Y

7555827

$7,34 Unit Price incl. VAT

PIN COTTER(10)

7661103

Not Available

ROD BRAKE LINKAGE Substituted by 5224446

5224394

Not Available

SPRING-EXHAUST

7042029

$10,49 Unit Price incl. VAT

ARM BRAKE PAD Substituted by 1910045-067

1910045

Not Available

PIN SPIRAL(10)

7661416

Not Available

PEDAL FOOT Substituted by 5130715-067

5130715

Not Available

WASHER THRUST(10)

7558702

$3,14 Unit Price incl. VAT

BUSHING-PEDAL PIVOT

5431107

$16,79 Unit Price incl. VAT

PIN COTTER

7661401

$1,56 Unit Price incl. VAT

RACK FRONT Substituted by 2670111-067

2670111

Not Available

SCREW(10)

7512252

Not Available

PAD RACK MOUNT

5810436

Not Available

SCREW

7512307

$7,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
