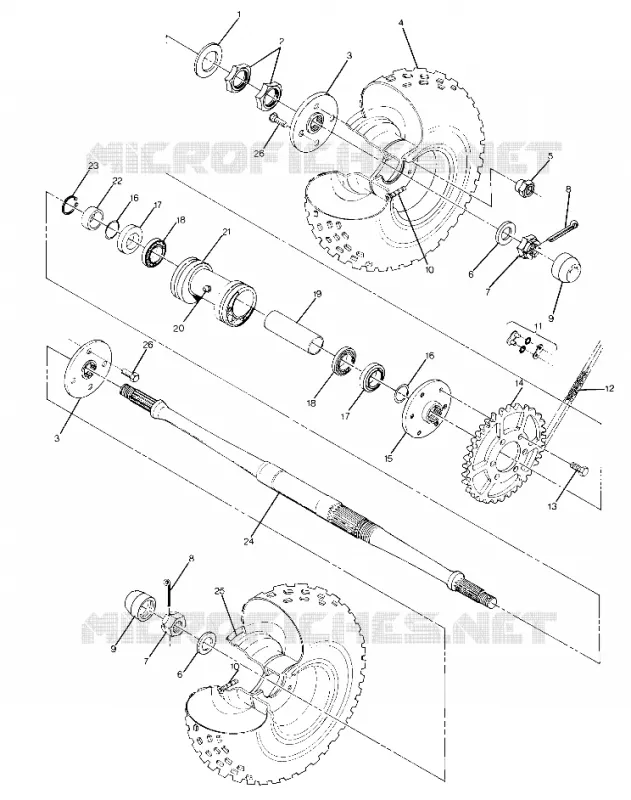

REAR WHEEL DRIVE ASSEMBLY (4916341634017A) FOR TRAIL BOSS 2X4

FRONT BRAKE (4916341634016A)

AIR BOX (4916341634019A)

FAN&ELEC.MOTOR ASM. Substituted by 2870869 (Incl. 1-7)

2410004

Not Available

FAN&ELEC.MTR. Substituted by 2410004 (Incl. 1-51

3083947

Not Available

WASHER(10)

7555764

Not Available

MOTOR ASM. Substituted by 3084036 (Incl. 11-13)

3083948

Not Available

FAN BLADE

3083949

Not Available

Nut Jam

5020468

$68,24 Unit Price incl. VAT

HUB WHEEL Substituted by 2200341

5130664

$173,24 Unit Price incl. VAT

BUSHING

3083950

Not Available

COVER

3083951

Not Available

TIRE R(24X11-10)

5410466

Not Available

Nut

7542714

$3,14 Unit Price incl. VAT

NUT

3083952

Not Available

Washer Flat

7555745

Not Available

PIN CONNECTOR

4020142

Not Available

TUBE

5521210

Not Available

NUT CASTLE(10)

7543005

Not Available

BOLT

7512113

$7,34 Unit Price incl. VAT

PIN-COTTER 1/8X1 1/2-Y

7661404

$9,44 Unit Price incl. VAT

MOUNT FAN Substituted by 1040188-067

1040188

Not Available

COVER DUST HUB Substituted by 5411164

5410404

5413427

$52,49 Unit Price incl. VAT

VALVE-RIM

1525017

$12,59 Unit Price incl. VAT

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

BOLT(10)

7511854

$2,09 Unit Price incl. VAT

CONNECTOR LINK

3225024

$47,24 Unit Price incl. VAT

NUT-8-32 HX LK GR A-Y

7541915

Not Available

CHAIN DRIVE 86P Substituted by 3224056-086 (Includes Connector)

3224046

3221193-086

$272,99 Unit Price incl. VAT

BOLT(10)

7515488

Not Available

WASHER FLAT

7558201

$9,44 Unit Price incl. VAT

SWITCH THERMAL(FAN)

2460297

Not Available

SPROCKET REAR 38T Substituted by 3222065

3222046

$178,49 Unit Price incl. VAT

HUB SPROCKET Substituted by 1520170

5630320

Not Available

O RING 1 5/16(10)

5410415

Not Available

SEAL REAR AXLE

3610013

Not Available

BEARING BALL

3515501

$47,24 Unit Price incl. VAT

TUBE BEARING SPACER

5010204

Not Available

FITTING LUB W/BALL

7080306

$5,76 Unit Price incl. VAT

HOUSING AXLE

5130663

Not Available

SPACER BEARING

5010206

$68,24 Unit Price incl. VAT

Ring Retaining

7710405

$9,44 Unit Price incl. VAT

AXLE REAR

5020504

$307,64 Unit Price incl. VAT

RIM REAR PRIMED Substituted by 1520114

1520128

Not Available

Screw

7512673

$5,76 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
