Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ
4
Parts Catalog

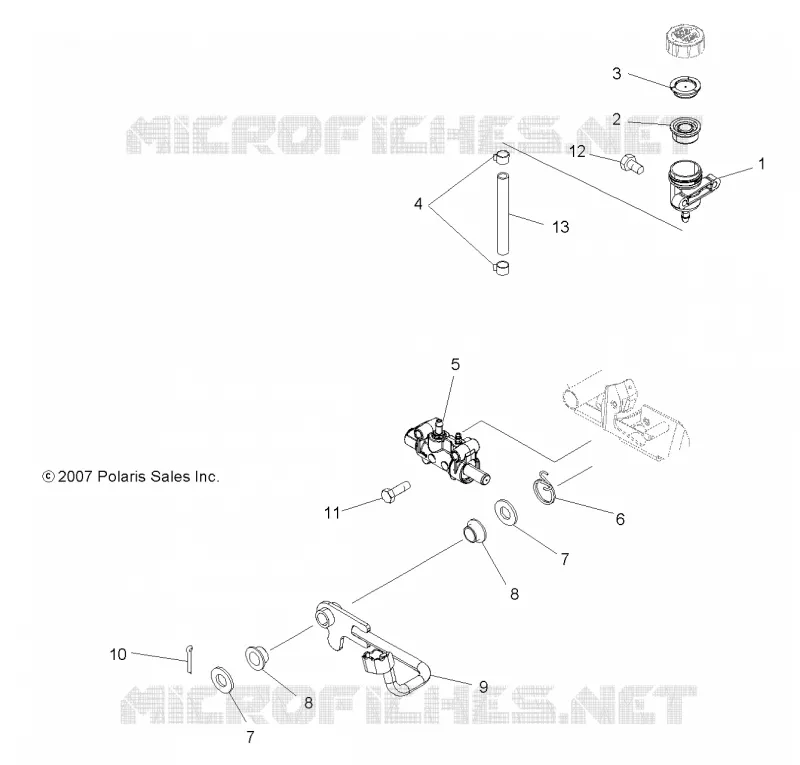

BRAKES, PEDAL AND REAR MASTER CYLINDER
5
Parts Diagram
Parts Catalog
FRONT BRAKE CALIPER
by
REAR BRAKE CALIPER
BRAKES, PEDAL AND REAR MASTER CYLINDER
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
1
ASM-RESERVOIR BRAKE TALL 2-EAR [INCL. 1-3]
1911224
$68,24 Unit Price incl. VAT
2
DIAPHRAGM RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
3
RING RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
4
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
5
ASM. MASTER CYLINDER
1911123
1913033
$257,24 Unit Price incl. VAT
6
Spring Torsion
7043276
Not Available
7
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
8
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
9
Pedal Brake
1910919067
$115,49 Unit Price incl. VAT
10
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
11
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$7,34 Unit Price incl. VAT
12
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$2,09 Unit Price incl. VAT
13
HOSE-RESERVOIR BRAKE 635MM
1911267635
1911267-790
$23,09 Unit Price incl. VAT
