1
Engine displacement
0
2
Year
1994
3
Trim
RXL TOURING - 0940869
4
Parts Catalog

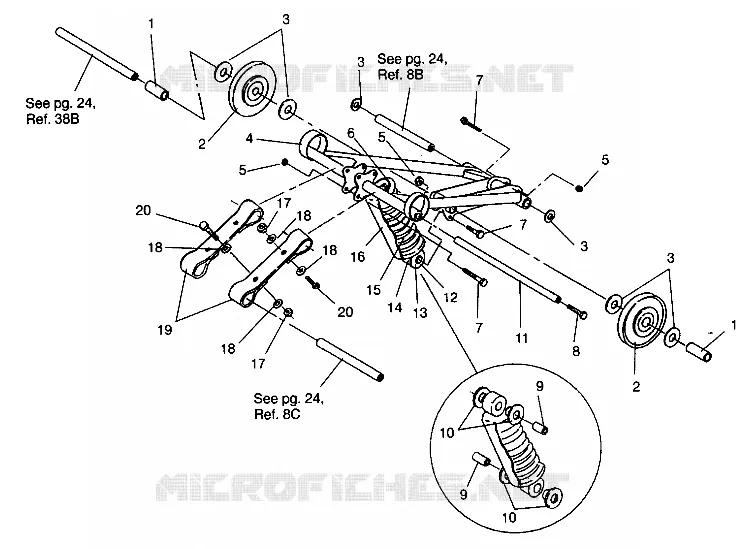

FRONT TORQUE ARM RXL TOURING 0940869 (4925062506026A)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM RXL 0940768 (4925062506025A)
by
REAR TORQUE ARM RXL 0940768 (4925062506027A)
FRONT TORQUE ARM RXL TOURING 0940869 (4925062506026A)
1
SPACER OUTER
5332784
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
4
ARM F.TORQUE BLK.
1540722067
Not Available
5
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
6
RETAINER SPRING SLOTTED
5020618
$36,74 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
BOLT BLACK
7515494
$5,24 Unit Price incl. VAT
9
BUSHING (1.24)
5020640
Not Available
10
BUSHING SHOCK .260 Substituted by 1500184
5431541
Not Available
11
SHAFT MOUNTING
5010149
Not Available
12
SHOCK GAS MIDDLE
7041294
Not Available
13
RETAINER SPRING BODY
5020617
Not Available
14
RING RETAINING(10)
7710424
Not Available
15
SPRING BLACK COMP.
7041253067
Not Available
16
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
17
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
18
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
19
STRAP LIMITER
5410397
Not Available
20
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
