1
Engine displacement
0
2
Year
1994
3
Trim
RXL TOURING - 0940869
4
Parts Catalog
HOOD ASSEMBLY RXL 0940768 AND RXL TOURING 0940869 (4925062506007A)
5

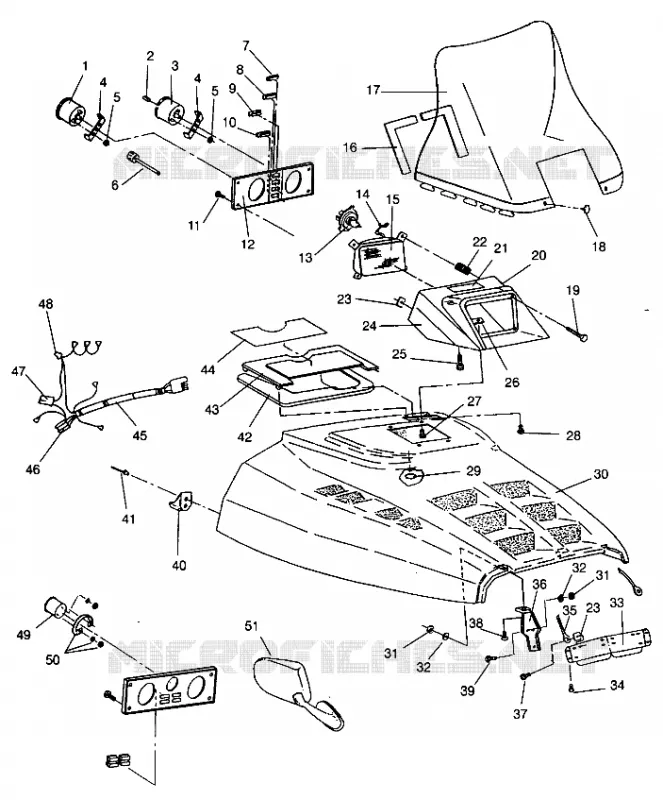

Parts Diagram
Parts Catalog
by
HOOD
HOOD ASSEMBLY RXL 0940768 AND RXL TOURING 0940869 (4925062506007A)
1
TACHOMETER 3 CYL. Substituted by 3280192 (Incl. 32-33) (650)
3280096
Not Available
2
KNOB TRIP ODOMETER LH THD.
3280186
$19,94 Unit Price incl. VAT
3
SPEEDOMETER (Incl. 32-33)
3280092
$179,54 Unit Price incl. VAT
4
BRACKET (SPORT)
3280098
Not Available
5
WASHER SPLIT LOCK
3280156
$1,04 Unit Price incl. VAT
5
NUT
3280158
Not Available
6
CABLE SPEEDO.
3280094
$115,49 Unit Price incl. VAT
7
INDICATOR#TEMP#WARN.
4040011
$62,99 Unit Price incl. VAT
8
INDICATOR#OIL/BRK#WARN.
4040034
Not Available
9
INDICATOR#HI-BEAM#WARN. (Classic)
4040013
Not Available
10
INDICATOR #ACC#WARN. (Classic)
4040014
Not Available
11
SCREW SCKT.HD.CAP(10)
7512008
Not Available
12
BEZEL INSTRUMENT (Classic)
5431308
Not Available
12
BEZEL INST.
5430924
Not Available
13
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
14
RETAINER H/L BULB
4032063
Not Available
15
HEADLIGHT ASM.
4032040
Not Available
16
PAD W/S RH BLACK
5810438
$2,72 Unit Price incl. VAT
16
PAD W/S LH BLACK
5810437
Not Available
17
WINDSHIELD SMOKE STD(LIQ)
5431144
$182,69 Unit Price incl. VAT
17
WINDSHIELD SMOKE LOW Substituted by 2870785 (SP)
5431621
Not Available
18
RIVET (PLASTIC LOK)(50) Substituted by 7621509
7621505
7621509
$2,09 Unit Price incl. VAT
19
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
20
HOUSING TOP MODIFIED (Touring)
5431364
Not Available
20
HSG INST TOP BLK
5430923070
Not Available
21
DECAL SHIFT PATTERN
7074663
Not Available
22
SPRING-ADJ
4032002
Not Available
23
NUT SPEED(10)
7670056
Not Available
24
HSG INST.BOTT.BLK.
5430922070
Not Available
24
HSG BOTTOM(MOD.)BLK. (Tour.)
5431363
Not Available
25
SCREW(10)
7512009
Not Available
26
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
27
SCREW
7512283
$7,34 Unit Price incl. VAT
28
SCREW(10)
7511840
Not Available
29
O RING (HEAVY) (10) Substituted by 5410970
5410387
5410970
$2,09 Unit Price incl. VAT
30
HOOD ASM BAH.BLUE(RXL)
2631574183
Not Available
31
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
32
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
33
PLATE RE-INF. (HD.)
5222105
$66,66 Unit Price incl. VAT
34
SCREW(10)
7511861
Not Available
35
CABLE HOOD RETAINER (650)
7080368
$19,94 Unit Price incl. VAT
36
HINGE ASM HD BAH.BLUE
2635005183
Not Available
37
BOLT
7511989
Not Available
38
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
39
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
40
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
41
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
42
SEAL INTAKE
5810597
Not Available
43
PANEL ASM INTAKE BAH.BLUE
2620078183
Not Available
44
DECAL DASH WARNING [No Longer Available]
7072870
Not Available
45
HARNESS HEADLIGHT
2460382
Not Available
45
HARNESS HEADLIGHT(RXL) (Touring)
2460436
Not Available
46
HOUSING
4020052
Not Available
47
HOUSING
4020115
Not Available
48
HOUSING
4020114
Not Available
49
INDICATOR FUEL LEVEL
3280118
$85,88 Unit Price incl. VAT
50
HDWE.PKG FUEL INDIC.
3280119
$39,78 Unit Price incl. VAT
51
KIT MIRRORS REAR VIEW
2870938
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
