Parts Catalog

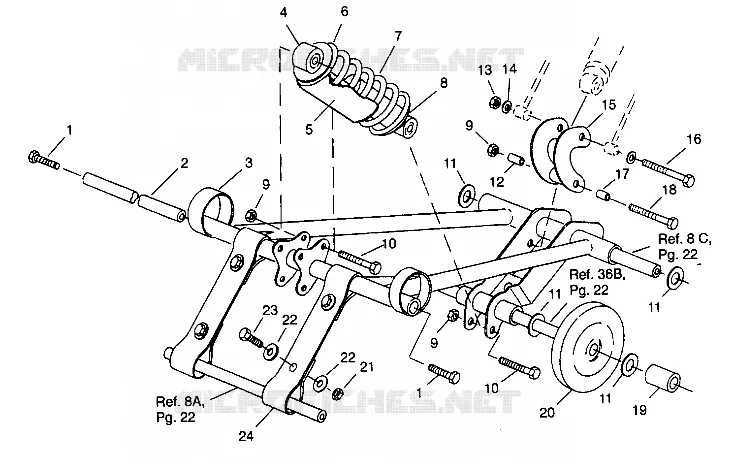

FRONT TORQUE ARM RXL 0940768 (4925062506025A)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY RXL TOURING 0940869 (4925062506023A)
by
FRONT TORQUE ARM RXL TOURING 0940869 (4925062506026A)
FRONT TORQUE ARM RXL 0940768 (4925062506025A)
1
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
2
SHAFT MOUNTING
5010149
Not Available
3
ARM FR.TORQUE BLK.
1540794067
Not Available
4
SHOCK CTR.SUSP.
7041281
Not Available
5
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
6
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
7
SPRING-SHOCK SUSP
7041140
Not Available
8
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
9
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
10
SCREW
7515415
$2,09 Unit Price incl. VAT
11
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
12
BUSHING PIVOT TUBE
5020561
$2,61 Unit Price incl. VAT
13
NUT FLEX LOC (10)
7542402
$11,54 Unit Price incl. VAT
14
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
15
SHOCK ARM WELD BLK.
1540791067
Not Available
16
BOLT(10)
7515525
Not Available
17
SPACER
5333028
$2,61 Unit Price incl. VAT
18
BOLT
7515438
$9,44 Unit Price incl. VAT
19
SPACER OUTER
5332784
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
22
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
23
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
24
STRAP LIMITER
5410397
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
