1
Engine displacement
500
2
Year
1997
3
Trim
SPORTSMAN 500 - W97CH50A
4
Parts Catalog

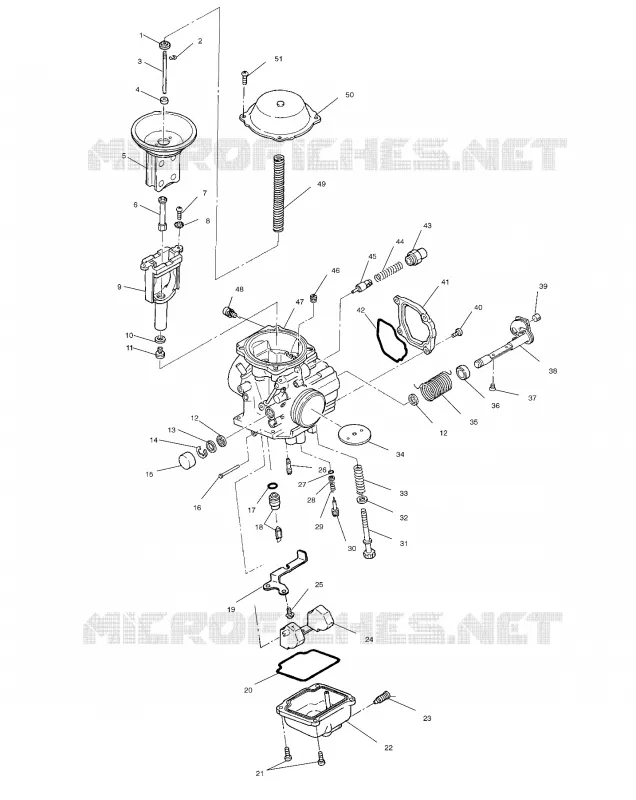

CARBURETOR
5
Parts Diagram
Parts Catalog
CYLINDER
by
WATER PUMP
CARBURETOR
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
RING
3130507
$10,49 Unit Price incl. VAT
2
E-RING
3130508
$12,59 Unit Price incl. VAT
3
JET NEEDLE (5D78-2) (5D78-3)
3130667
$68,24 Unit Price incl. VAT
4
RING Substituted by 3130752
3130509
3130752
$10,49 Unit Price incl. VAT
5
DIAPHRAGM ASM.
3130506
Not Available
6
JET NEEDLE (P-1) (P-1)
3130666
Not Available
7
SCREW
3130541
$20,99 Unit Price incl. VAT
8
WASHER SPRING
3130540
$9,44 Unit Price incl. VAT
9
JETBLOCK ASM.
3130504
$120,74 Unit Price incl. VAT
10
WASHER
3130014
$3,14 Unit Price incl. VAT
11
MAIN JET #142.5 (#142.5)
3130566
$16,79 Unit Price incl. VAT
12
SEAL
3130515
$20,99 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
E-Ring
3130518
$3,14 Unit Price incl. VAT
15
CAP
3130519
$19,94 Unit Price incl. VAT
16
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
17
O-RING
3130533
$10,49 Unit Price incl. VAT
18
VALVE NEEDLE (1.5) Substituted by 3130531 (1.5)
3130668
3131360
$99,74 Unit Price incl. VAT
19
PLATE
3130594
$62,99 Unit Price incl. VAT
20
O-RING
3130532
$57,74 Unit Price incl. VAT
21
SCREW
3130520
$3,14 Unit Price incl. VAT
22
Asm. Body Float
3130590
$204,74 Unit Price incl. VAT
23
SCREW
3130521
$18,89 Unit Price incl. VAT
24
FLOAT ASM.
3130529
$157,49 Unit Price incl. VAT
25
SCREW
3130591
$7,34 Unit Price incl. VAT
26
JET PILOT #42.5 (#42.5)
3130526
$62,99 Unit Price incl. VAT
27
O-RING
3130522
$10,49 Unit Price incl. VAT
28
WASHER
3130523
$4,19 Unit Price incl. VAT
29
SPRING
3130525
$10,49 Unit Price incl. VAT
30
ADJUSTER
3130524
$41,99 Unit Price incl. VAT
31
SCREW ADJ.
3130546
$25,19 Unit Price incl. VAT
32
RING
3130545
$20,99 Unit Price incl. VAT
33
SPRING
3130544
$19,94 Unit Price incl. VAT
34
VALVE THROTTLE (100)
3130502
$99,74 Unit Price incl. VAT
35
SPRING
3130589
$52,49 Unit Price incl. VAT
36
RING
3130514
$13,64 Unit Price incl. VAT
37
SCREW
3130501
$7,34 Unit Price incl. VAT
38
SHAFT ASM THROTTLE
3130513
$146,99 Unit Price incl. VAT
39
CABLE GUIDE MIKUNI BTM36/30
3130543
$62,99 Unit Price incl. VAT
40
SCREW
3130535
$13,64 Unit Price incl. VAT
41
COVER
3130511
$83,99 Unit Price incl. VAT
42
O-RING
3130512
Not Available
43
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
44
SPRING
3130538
$10,49 Unit Price incl. VAT
45
PLUNGER ASM. Substituted by 3130539
3130593
3130539
$73,49 Unit Price incl. VAT
46
JET AIR #160 (#160)
3130625
$27,29 Unit Price incl. VAT
47
CARBURETOR Substituted by 3130723 (Incl. 1-39 44-52)
3130665
Not Available
48
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
49
SPRING
3130505
$52,49 Unit Price incl. VAT
50
COVER
3130503
$125,99 Unit Price incl. VAT
51
SCREW-MIKUNI C2=0408
3130592
3130924
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
