1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI INTL - R13VH57FX
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
ENGINE, WATERPUMP IMPELLER AND COVER
by
DRIVE TRAIN, REAR HALF SHAFT

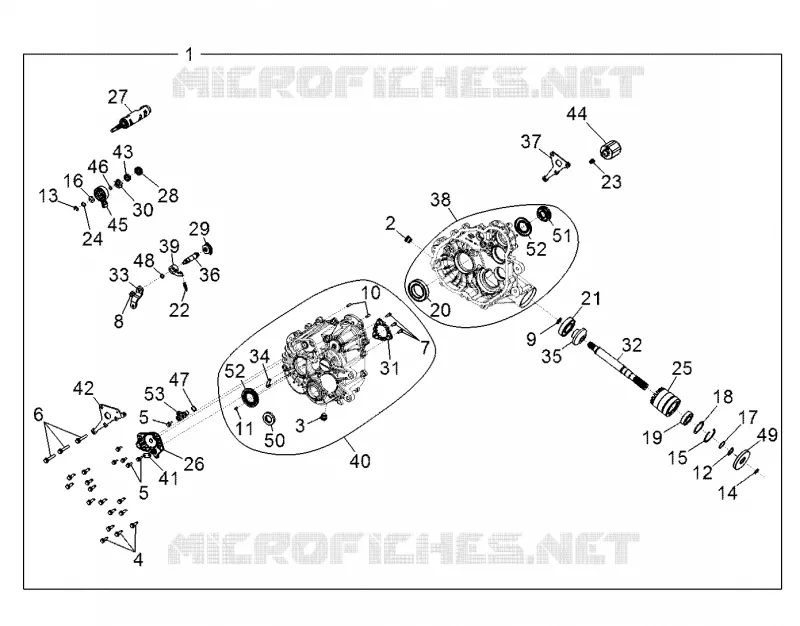

DRIVE TRAIN, MAIN GEARCASE
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
1
Asm. Gearcase [Incl. All]
1333133
$3 924,36 Unit Price incl. VAT
2
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
3
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
4
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
5
SCREW HEX FLANGE HEAD M6 X 1 X 20
3235206
$13,64 Unit Price incl. VAT
6
SCREW HEX FLANGE M8 X 50
3235207
$19,94 Unit Price incl. VAT
7
SCREW SOCKET HEAD CAP M6 X 1.0 X 18
3235332
$7,34 Unit Price incl. VAT
8
NUT LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$14,69 Unit Price incl. VAT
9
WASHER-17.3X25X1.5(115290)
3235213
$31,49 Unit Price incl. VAT
10
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
11
PIN SPRING SLOTTED 6 X 12
7043746
$15,74 Unit Price incl. VAT
12
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
13
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
14
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
15
RING RETAINING BASIC INTERNAL 2.047
3234269
$17,84 Unit Price incl. VAT
16
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
17
SHIM 1.180 OD X 0.995 ID
3234272
$68,24 Unit Price incl. VAT
18
SHIM 2.040 OD X 1.63 ID
3234273
$26,24 Unit Price incl. VAT
19
BEARING
3233019
$54,59 Unit Price incl. VAT
20
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
21
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
22
SPRING COMPRESSION 0.36 O.D. X 1.125
3233830
$19,94 Unit Price incl. VAT
23
SPRING COMPRESSION 0.54 O.D. X 0.44 I.D. X 0.05 WIRE
3234277
$26,24 Unit Price incl. VAT
24
WASHER-SPRING 210393
3235327
$17,84 Unit Price incl. VAT
25
TUBE SNORKEL MACHINED
3234278
$188,99 Unit Price incl. VAT
26
COVER SECTOR GEARS MACHINED
3234188
$209,99 Unit Price incl. VAT
27
DRUM-SHIFT MACH.(255289)
3235463
$519,74 Unit Price incl. VAT
28
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
29
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
30
STAR DETENT
3235453
Not Available
31
PLATE PARK 12 FACE
3235456
$73,49 Unit Price incl. VAT
32
SHAFT-FRONT OUTPUT(285914)
3235394
$246,74 Unit Price incl. VAT
33
BELLCRANK TITAN
3235397
3235386
$62,99 Unit Price incl. VAT
34
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
35
GEAR-13T FRONT OUTPUT(352957)
3235237
$246,74 Unit Price incl. VAT
36
SHAFT-SHIFT(352973)
3235238
$68,24 Unit Price incl. VAT
37
WELDMENT REAR MOUNT BRACKET
3235239
$73,49 Unit Price incl. VAT
38
SUBASM. LH CASE [INCL. HARDWARE]
3235422
$1 244,24 Unit Price incl. VAT
39
SUBASSEMBLY PAWL DETENT ROLLER
3235452
$68,24 Unit Price incl. VAT
40
SUBASM. CASE LH [INCL. ALL HARDWARE]
3235446
Not Available
41
BRACKET WIRE HARNESS
3235350
$16,79 Unit Price incl. VAT
42
BRKT-REAR MOUNT(430598)
3235351
$89,24 Unit Price incl. VAT
43
Disc Lockout
3235243
$17,84 Unit Price incl. VAT
44
Solenoid
3234298
3235478
$545,99 Unit Price incl. VAT
45
SWITCH ROTARY 2 PIN RESISTIVE
7661999
$220,49 Unit Price incl. VAT
46
O-RING -012 VITON
3233836
$12,59 Unit Price incl. VAT
47
O-RING
3234302
$13,64 Unit Price incl. VAT
48
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
49
SEAL TRIPLE LIP VITON 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
50
SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON
3234892
$68,24 Unit Price incl. VAT
51
SEAL TRIPLE LIP VITON HELIX 30 X 47
3234851
$68,24 Unit Price incl. VAT
52
SEAL TRIPLE LIP VITON HELIX 40X70X7
3235052
$57,74 Unit Price incl. VAT
53
SENSOR SPEED
4012167
4082135
$204,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
