1
Engine displacement
0
2
Year
1997
3
Trim
EURO WIDETRAK LX - E972065
4
Parts Catalog

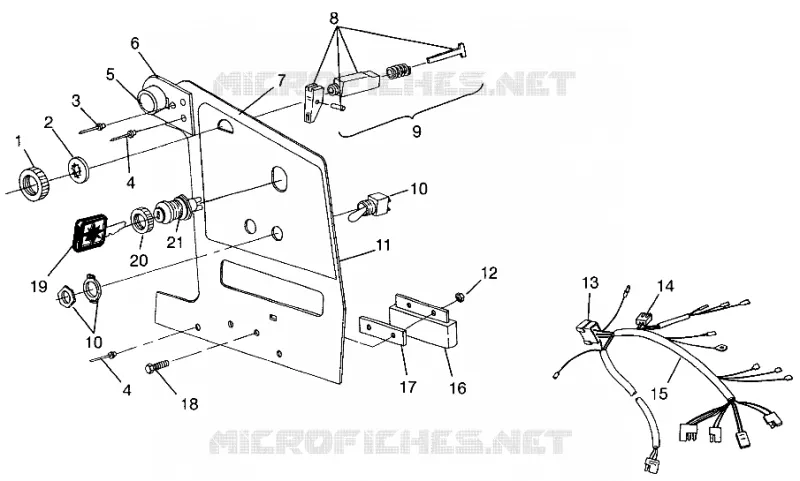

CONSOLE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A013)
5
Parts Diagram
Parts Catalog
SEAT GAS TANK WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A006)
by
RACK TUNNEL EXTENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E97 (4938223822A014)
CONSOLE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A013)
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
15
15
15
16
17
18
19
20
21
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
15
15
15
16
17
18
19
20
21
1
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
2
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
3
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
4
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
5
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
6
BRKT ROPE GUIDE BLK.
5222682067
Not Available
7
CONSOLE BLK(W#TRAK)
5222680067
Not Available
8
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
9
CABLE CHOKE
7080290
$194,24 Unit Price incl. VAT
10
SWITCH H-BAR HEATER (Incl. Nut & Face Plate)
4110066
Not Available
11
DECAL CONSOLE [No Longer Available]
7072973
Not Available
12
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
13
HOUSING W/RECEPTACLE
4020057
$5,66 Unit Price incl. VAT
14
CONNECTOR BRAKE SWITCH
4020112
Not Available
15
HARNESS MAIN WIRE
2460538
Not Available
15
HARNESS MAIN WIRE(EUR:2460538) (Euro)
2460547
Not Available
16
REGULATOR 14 VAC.LR-9
4060122
2203873
$188,99 Unit Price incl. VAT
17
SPACER REGULATOR
5211573
Not Available
18
BOLT(10)
7512031
$3,98 Unit Price incl. VAT
19
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
20
NUT IGN.SWITCH(10)
7543101
Not Available
21
KIT IGN.SWITCH
2200358
2205055
$141,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
