1
Engine displacement
0
2
Year
1997
3
Trim
EURO WIDETRAK LX - E972065
4
Parts Catalog

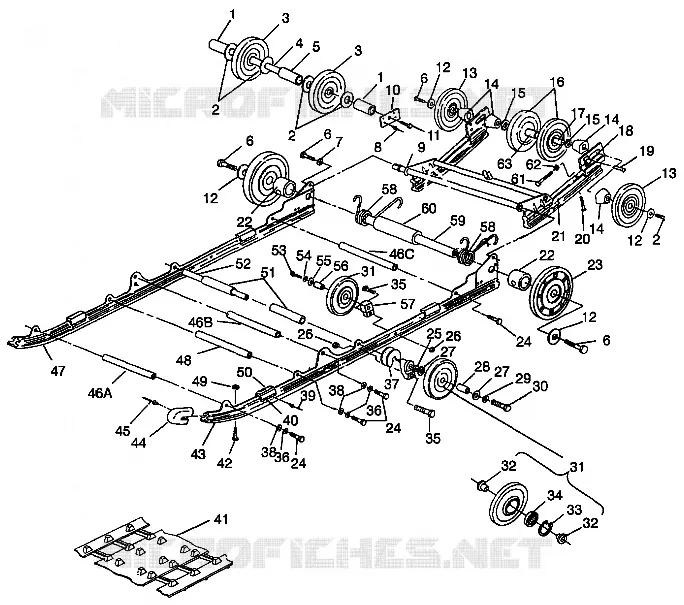

SUSPENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B007)
5
Parts Diagram
Parts Catalog
GEARCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B005)
by
FRONT TORQUE ARM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B009)
SUSPENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B007)
1
1
2
2
2
3
3
4
5
6
6
6
6
7
8
9
10
11
12
12
12
12
13
13
14
14
14
15
15
16
17
18
18
19
20
21
22
22
23
24
24
24
25
26
26
27
27
28
29
30
31
31
32
32
33
34
35
35
36
36
37
38
38
39
40
41
41
41
41
41
41
41
41
41
42
43
43
43
43
44
44
45
46
46
46
47
48
49
50
51
52
53
54
55
56
57
58
58
59
60
61
62
63
1
1
2
2
2
3
3
4
5
6
6
6
6
7
8
9
10
11
12
12
12
12
13
13
14
14
14
15
15
16
17
18
18
19
20
21
22
22
23
24
24
24
25
26
26
27
27
28
29
30
31
31
32
32
33
34
35
35
36
36
37
38
38
39
40
41
41
41
41
41
41
41
41
41
42
43
43
43
43
44
44
45
46
46
46
47
48
49
50
51
52
53
54
55
56
57
58
58
59
60
61
62
63
1
SPACER
5333019067
$27,29 Unit Price incl. VAT
2
WASHER FLAT
7555726
$3,14 Unit Price incl. VAT
3
ASM. WHEEL CARRIER [INCL. INSERTS]
1543021
Not Available
4
SHAFT MTG.
5020836
$62,99 Unit Price incl. VAT
5
SPACER
5333020067
$34,64 Unit Price incl. VAT
6
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
7
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
8
RIVET SEMI-TUBE (50)
7661812
Not Available
9
SHAFT PIVOT ARM
5020725
$52,49 Unit Price incl. VAT
10
PLATE TUNNEL CARRIER BLK.
5211220067
Not Available
11
BOLT(10)
7515432
Not Available
12
WASHER(10) Substituted by 7556130
7571629
7556130
$11,54 Unit Price incl. VAT
13
WHEEL IDLER GOLD MET.
1594056227
Not Available
14
SPACER IDLER
5432535
$20,99 Unit Price incl. VAT
15
BUSHING
7555918
$3,14 Unit Price incl. VAT
16
WHEEL IDLER BLK(20MM)
1594056070
$99,74 Unit Price incl. VAT
17
SHAFT IDLER
5020879
$78,74 Unit Price incl. VAT
18
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
19
RIVET
7621501
$4,19 Unit Price incl. VAT
20
SCREW(10)
7512225
$7,34 Unit Price incl. VAT
21
RAIL ASM SWINGARM RIVETED (Incl. 18 19)
1541133
Not Available
22
TUBE SPACER OUTSIDE CENTER
5330171067
$27,29 Unit Price incl. VAT
23
WHEEL ASM. W/INS.
1594078
Not Available
24
SCREW (10)
7517247
$6,29 Unit Price incl. VAT
25
SPACER BOGIE WHEEL
5630399
$20,99 Unit Price incl. VAT
26
Nut
7542403
Not Available
27
WASHER-.438X1.375X.083 FL-B
7555852
$4,19 Unit Price incl. VAT
28
SPACER WHEEL
5333116
$13,64 Unit Price incl. VAT
29
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
30
BOLT(10)
7512538
$11,54 Unit Price incl. VAT
31
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
32
INSERT WHEEL
5431531
$19,94 Unit Price incl. VAT
33
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
34
BEARING
3514303
$20,99 Unit Price incl. VAT
35
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
36
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
37
ROLLER SPRING
5431366
$19,94 Unit Price incl. VAT
38
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
39
RIVET
7621476
$2,09 Unit Price incl. VAT
40
ANGLE REINFORCEMENT BUMPER
5222629
$26,24 Unit Price incl. VAT
41
CLIP TRACK(CAMOPLAST) (10)
5222839
5251273
$18,89 Unit Price incl. VAT
41
TRACK 156# CAMO. Substituted by 5411395
5411040
Not Available
41
CLIP GUIDE
5222840
5251274
$13,64 Unit Price incl. VAT
42
SCREW
7512227
$6,29 Unit Price incl. VAT
43
ASM. RAIL LH [INCL. 1 2 4-9]
1540751
$629,99 Unit Price incl. VAT
43
SLIDER BLK. Substituted by 5521320
5521296
Not Available
44
COVER RAIL TIP
5430627
$62,99 Unit Price incl. VAT
45
RIVET
7621435
$2,09 Unit Price incl. VAT
46
SHAFT PIVOT ARM FRT.
5020718
Not Available
47
ASM. RAIL LH [INCL. 1 2 4-9]
1540752
$629,99 Unit Price incl. VAT
48
SHAFT SPANNER
5020720
$52,49 Unit Price incl. VAT
49
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
50
BUMPER SUSPENSION
5810554
$15,74 Unit Price incl. VAT
51
SPACER R.SHOCK
5333138
$54,59 Unit Price incl. VAT
52
SHAFT REAR SHOCK Substituted by 5020719
5020651
$68,24 Unit Price incl. VAT
53
SCREW
7512659
$13,64 Unit Price incl. VAT
54
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
55
WASHER
7555804
$7,34 Unit Price incl. VAT
56
SPACER
5332786
$13,64 Unit Price incl. VAT
57
BRACKET BOGIE WHEEL
5130570
$89,24 Unit Price incl. VAT
58
SPRING EXTENSION REAR
7041231067
$99,74 Unit Price incl. VAT
59
SHAFT
5020726
$62,99 Unit Price incl. VAT
60
SPACER BLK
5333014067
$68,24 Unit Price incl. VAT
61
SCR-3/8-16X3 1/2HXHD TAP GR5-Y
7515459
$10,49 Unit Price incl. VAT
62
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
63
SPACER IDLER
5333523
$20,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for EURO WIDETRAK LX - E972065

TUNNEL WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A005)

TUNNEL WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A005)

for EURO WIDETRAK LX - E972065 from 1997

SEAT GAS TANK WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A006)

SEAT GAS TANK WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A006)

for EURO WIDETRAK LX - E972065 from 1997

CONSOLE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A013)

CONSOLE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A013)

for EURO WIDETRAK LX - E972065 from 1997

RACK TUNNEL EXTENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E97 (4938223822A014)

RACK TUNNEL EXTENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E97 (4938223822A014)

for EURO WIDETRAK LX - E972065 from 1997

FRONT SUSPENSION AND SKI WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972 (4938223822B001)

FRONT SUSPENSION AND SKI WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972 (4938223822B001)

for EURO WIDETRAK LX - E972065 from 1997

STEERING

STEERING

for EURO WIDETRAK LX - E972065 from 1997

REAR TORQUE ARM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B010)

REAR TORQUE ARM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B010)

for EURO WIDETRAK LX - E972065 from 1997

BRAKE WIDETRAK LX 0972064 AND EUROPEAN WIDETRAK LX E972064 (4938223822B011)

BRAKE WIDETRAK LX 0972064 AND EUROPEAN WIDETRAK LX E972064 (4938223822B011)

for EURO WIDETRAK LX - E972065 from 1997

DRIVE SHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B012)

DRIVE SHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B012)

for EURO WIDETRAK LX - E972065 from 1997

BATTERY BOX WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B013)

BATTERY BOX WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B013)

for EURO WIDETRAK LX - E972065 from 1997

COOLING SYSTEM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C005)

COOLING SYSTEM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C005)

for EURO WIDETRAK LX - E972065 from 1997

SHIFT LINKAGE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C006)

SHIFT LINKAGE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C006)

for EURO WIDETRAK LX - E972065 from 1997

CRANKCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C007)

CRANKCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C007)

for EURO WIDETRAK LX - E972065 from 1997

CYLINDER WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C008)

CYLINDER WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C008)

for EURO WIDETRAK LX - E972065 from 1997

OIL PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C013)

OIL PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C013)

for EURO WIDETRAK LX - E972065 from 1997

MAGNETO WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C014)

MAGNETO WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C014)

for EURO WIDETRAK LX - E972065 from 1997

RECOIL STARTER WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822D001)

RECOIL STARTER WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822D001)

for EURO WIDETRAK LX - E972065 from 1997

STARTING MOTOR WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822D002)

STARTING MOTOR WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822D002)

for EURO WIDETRAK LX - E972065 from 1997

NOSEPAN WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822A007)

NOSEPAN WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822A007)

for EURO WIDETRAK LX - E972065 from 1997

HOOD WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A009)

HOOD WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A009)

for EURO WIDETRAK LX - E972065 from 1997

DECALS WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A011)

DECALS WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A011)

for EURO WIDETRAK LX - E972065 from 1997

HOOD

HOOD

for EURO WIDETRAK LX - E972065 from 1997

STEERING WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B004)

STEERING WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B004)

for EURO WIDETRAK LX - E972065 from 1997

GEARCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B005)

GEARCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B005)

for EURO WIDETRAK LX - E972065 from 1997

SUSPENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B007)

SUSPENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B007)

for EURO WIDETRAK LX - E972065 from 1997

FRONT TORQUE ARM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B009)

FRONT TORQUE ARM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B009)

for EURO WIDETRAK LX - E972065 from 1997

DRIVE CLUTCH WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B014)

DRIVE CLUTCH WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B014)

for EURO WIDETRAK LX - E972065 from 1997

DRIVEN CLUTCH WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C001)

DRIVEN CLUTCH WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C001)

for EURO WIDETRAK LX - E972065 from 1997

ENGINE MOUNTING WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C002)

ENGINE MOUNTING WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C002)

for EURO WIDETRAK LX - E972065 from 1997

EXHAUST SYSTEM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C003)

EXHAUST SYSTEM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C003)

for EURO WIDETRAK LX - E972065 from 1997

OIL TANK AIR BOX WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C004)

OIL TANK AIR BOX WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C004)

for EURO WIDETRAK LX - E972065 from 1997

WATER PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C009)

WATER PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C009)

for EURO WIDETRAK LX - E972065 from 1997

PISTON CRANKSHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C010)

PISTON CRANKSHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C010)

for EURO WIDETRAK LX - E972065 from 1997

CARBURETOR WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C011)

CARBURETOR WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C011)

for EURO WIDETRAK LX - E972065 from 1997

FUEL PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C012)

FUEL PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C012)

for EURO WIDETRAK LX - E972065 from 1997

POLARIS EURO WIDETRAK LX - E972065 1997

EURO WIDETRAK LX - E972065

EURO WIDETRAK LX - E972065

Model : WIDETRAK

Year : 1997

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
