1
Engine displacement
500
2
Year
2013
3
Trim
SPORTSMAN FOREST 500 - A13MH50FF/FJ/FU
4
Parts Catalog
REAR CAB, SEAT AND FOOTWELLS
5
Parts Diagram
Parts Catalog
MIRRORS
by
BRAKES, BRAKE REAR CALIPER

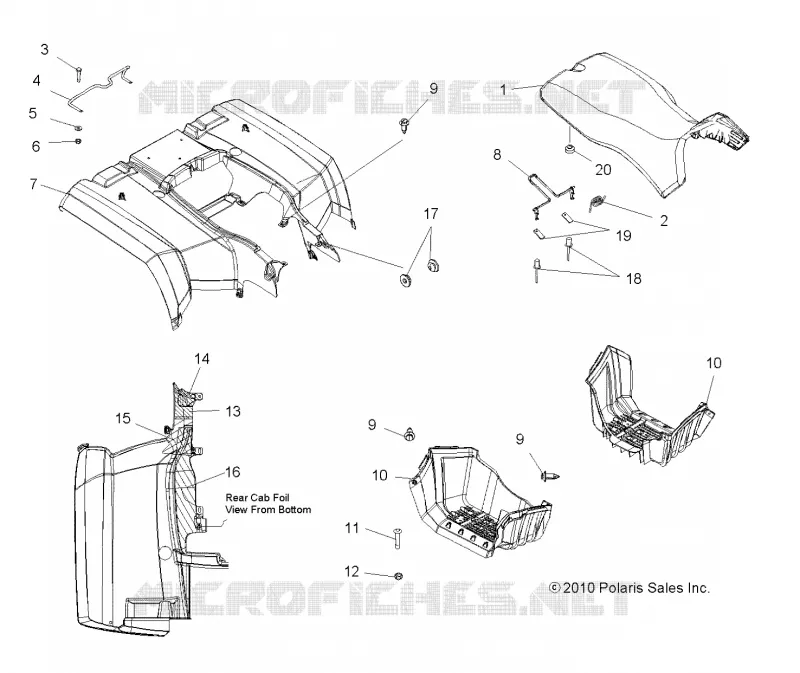

REAR CAB, SEAT AND FOOTWELLS
1
1
2
3
4
5
6
7
7
7
8
9
9
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
1
1
1
1
1
2
3
4
1
Asm. Cover White Decal
2684045
$272,99 Unit Price incl. VAT
1
Asm. Seat Black [Incl. 2 8 18-20][Built 6/28/11 and After]
2684882070
$824,24 Unit Price incl. VAT
2
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
3
BOLT
7511930
$4,19 Unit Price incl. VAT
4
Retainer Seat Latch
5250745
Not Available
5
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
6
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
7
Cab Rear Matte Turbo Silver [FU]
5436235581
$660,44 Unit Price incl. VAT
7
Cab Rear Bright White [FJ]
5436319133
Not Available
7
Cab Rear Sage Brush Green Metallic [AX]
5436319498
Not Available
8
Latch Seat
1040387
$89,24 Unit Price incl. VAT
9
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
10
Footwell Black RH
5436932070
$430,49 Unit Price incl. VAT
10
Footwell Black LH
5436931070
$430,49 Unit Price incl. VAT
11
SCR-1/4-20X1 TRX TRHD GR5-M
7517230
$2,09 Unit Price incl. VAT
12
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
13
Foil Rear Cab Front [If built after 10/01/06]
5813177
Not Available
14
Foil Rear Cab Front Bottom (If built after 10/15/05)
5813029
$83,99 Unit Price incl. VAT
15
Foil Cab Rear Middle (If built after 10/15/05)
5813030
Not Available
16
Foil Rear Cab Rear [If built after 10/05/05]
5813043
$62,99 Unit Price incl. VAT
17
Grommet Rubber Mount
5412623
$4,19 Unit Price incl. VAT
18
BLIND RIVET(50)
7621403
$2,09 Unit Price incl. VAT
19
Bracket Lever Retainer
5211033
$52,49 Unit Price incl. VAT
20
BUMPER-RUBBER
5412067
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
