1
Engine displacement
0
2
Year
1995
3
Trim
RXL - 0956168
4
Parts Catalog
OIL PUMP ASSEMBLY RXL 0956768 (4930783078C012)
5
Parts Diagram
Parts Catalog
FUEL PUMP RXL 0956768 (4930783078C011)
by
FOX SHOCK

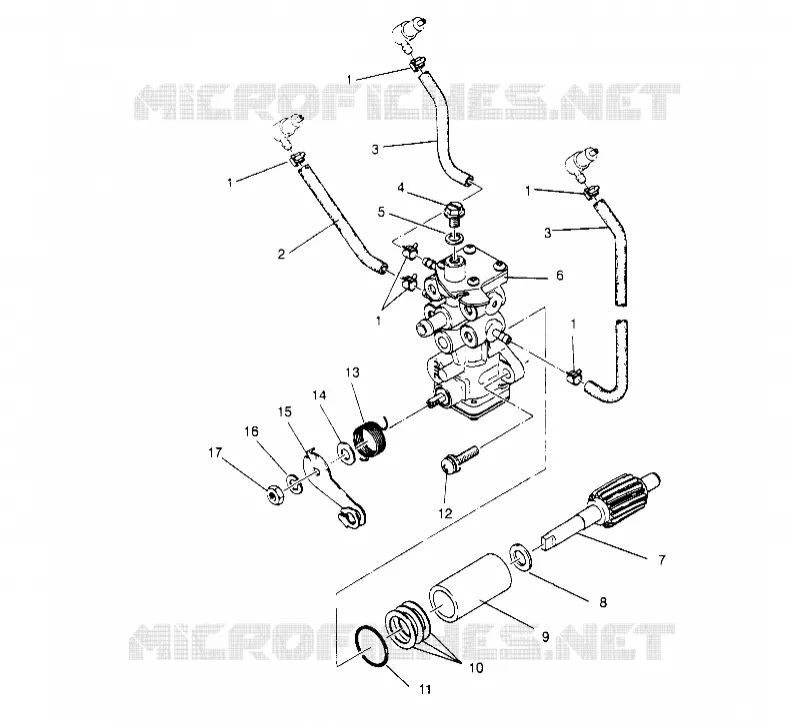

OIL PUMP ASSEMBLY RXL 0956768 (4930783078C012)
1
1
1
1
1
2
3
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
1
1
1
1
1
2
3
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
1
CLAMP HOSE
3083141
$2,09 Unit Price incl. VAT
2
ASM. PIPE VINYL
3084467
8450188
$20,99 Unit Price incl. VAT
3
PIPE#3 VINYL(L=315) Substituted by 3085591
3083488
Not Available
4
SCREW-AIR VENT
3083125
Not Available
5
PACKING(10)
3083126
$7,34 Unit Price incl. VAT
6
PUMP OIL (Incl. 2-9)
3084296
Not Available
7
GEAR SMALL OIL PUMP
3083131
5141635
$141,74 Unit Price incl. VAT
8
SPACER
3083130
$3,14 Unit Price incl. VAT
9
BUSHING(OIL PUMP)
3083353
$54,59 Unit Price incl. VAT
10
SPACER 3 .6MM
3083673
5141621
$8,39 Unit Price incl. VAT
10
SPACER 2 .3MM
3083672
5141620
$6,29 Unit Price incl. VAT
10
SPACER 1 .15MM
3083671
5141619
$6,29 Unit Price incl. VAT
11
O RING
3083127
Not Available
12
SCREW&WASHER (10)
3083783
$4,19 Unit Price incl. VAT
13
SPRING-RETURN
3083123
Not Available
14
COLLAR CAM SHAFT
3083445
$4,19 Unit Price incl. VAT
15
LEVER CONTROL
3084297
Not Available
16
WASHER SPRING
3083121
1205792
$614,24 Unit Price incl. VAT
17
NUT
3083120
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
