Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ
4
Parts Catalog
STARTING SYSTEM
5

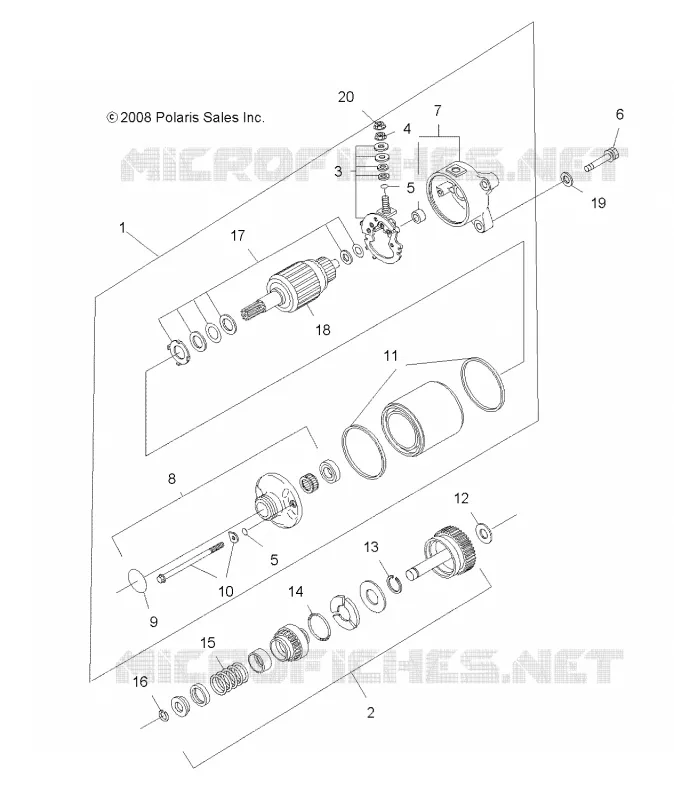

Parts Diagram
Parts Catalog
CYLINDER AND HEAD
by
COOLING SYSTEM (BUILT 4/06/09 AND BEFORE)
STARTING SYSTEM
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Motor Starter Complete [Incl. 1-5 7-11]
3090188
$621,59 Unit Price incl. VAT
2
Asm. Gear Shaft [Incl. 14-17]
3087030
$456,74 Unit Price incl. VAT
3
Brush Set Carbon
3088169
$230,99 Unit Price incl. VAT
4
NUT FLANGE(10)
3083649
$7,34 Unit Price incl. VAT
5
O-RING
3084408
Not Available
6
Bolt Flange
3084874
Not Available
7
COVER REAR STARTER(MAGNUM)
3085034
$173,24 Unit Price incl. VAT
8
COVER FRT STARTER(MAGNUM) * (Incl. 10)
3085033
$272,99 Unit Price incl. VAT
9
O-RING
3240114
$10,49 Unit Price incl. VAT
10
BOLT ASM SET (Incl. 6)
3084983
$41,99 Unit Price incl. VAT
11
RING RUBBER
3084405
Not Available
12
WASHER-THRUST 12.10X24X1.07
7555908
7556994
$6,29 Unit Price incl. VAT
13
CLIP
3084412
$17,84 Unit Price incl. VAT
14
SPRING WEIGHT
3084411
$25,08 Unit Price incl. VAT
15
SPRING RETURN
3084410
$3,98 Unit Price incl. VAT
16
CLIP
3084409
$13,64 Unit Price incl. VAT
17
WASHER SET
3084982
Not Available
18
ARMATURE ASM.
3085353
Not Available
19
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
20
NUT FLANGE
3083856
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
