1
Engine displacement
400
2
Year
1995
3
Trim
big-boss-6x6-400l-w958740
4
Parts Catalog
PISTON CRANKSHAFT 6X6 400L, U.S. W958740, SWEDISH S958740 AND NORWEGIAN (4930273027D011)
5
Parts Diagram
Parts Catalog
MAGNETO ASSEMBLY 6X6 400L
by
CRANKCASE AND CYLINDER 6X6 400L

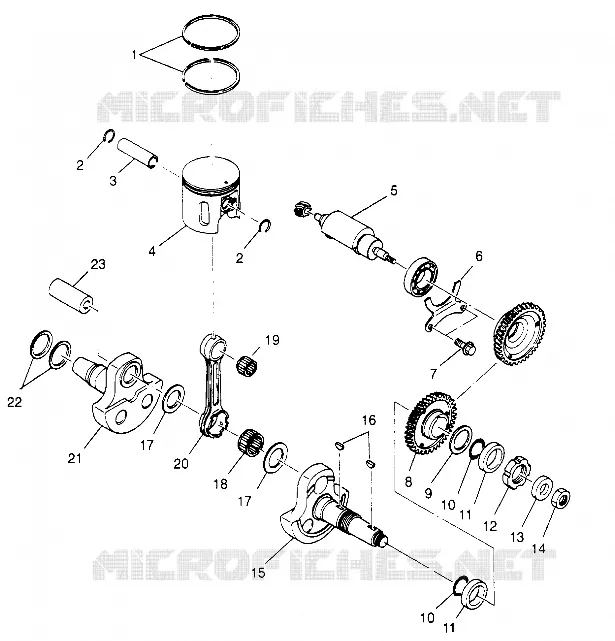

PISTON CRANKSHAFT 6X6 400L, U.S. W958740, SWEDISH S958740 AND NORWEGIAN (4930273027D011)
-
1
1
2
2
3
4
4
4
4
4
4
4
4
4
5
6
7
8
9
10
10
11
11
12
13
14
15
15
15
15
16
17
17
18
19
20
21
22
22
22
22
23
-
RING PISTON (.50MM O/S) (0.50/.020mm O/S)
3084739
$40,94 Unit Price incl. VAT
1
RING PISTON STD. (Std)
3084737
$40,94 Unit Price incl. VAT
1
RING PISTON (.25MM O/S) * (0.25/.010mm O/S)
3084738
$54,59 Unit Price incl. VAT
2
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
3
PIN PISTON
3083838
2207579
$356,99 Unit Price incl. VAT
4
PISTON (.25MM O/S) (0.25/.010mm O/S)
3084735
Not Available
4
PISTON (.50MM O/S) (0.50/.020mm O/S)
3084736
Not Available
4
PISTON STD. (Std)
3084734
Not Available
5
BALANCER Substituted by 3087042
3084172
Not Available
6
PLATE Substituted by 3086768
3084173
$41,04 Unit Price incl. VAT
7
BOLT FLANGE Substituted by 3086769
3084174
Not Available
8
GEAR DRIVE * (Drive)
3084156
Not Available
9
WASHER GUIDE Substituted by 3086764
3084159
Not Available
10
O RING
3084160
Not Available
11
COLLAR Substituted by 3086763
3084158
Not Available
12
NUT SLIT Substituted by 3086762 (Slit)
3084157
Not Available
13
WASHER Substituted by 3086767
3083904
Not Available
14
LOCKNUT
3083905
Not Available
15
CRANKSHAFT ASM. *
3084776
Not Available
15
CRANKSHAFT #1 MAG SIDE
3084149
$278,24 Unit Price incl. VAT
16
KEY Substituted by 3081543
3080130
3081543
$26,24 Unit Price incl. VAT
17
SPACER CRANK PIN (Crank Pin)
3084155
Not Available
18
BEARING LARGE END
3084154
Not Available
19
BEARING SMALL END
3084168
$54,59 Unit Price incl. VAT
20
ROD CONNECTING
3084153
Not Available
21
CRANKSHAFT #2 PTO SIDE
3084777
$192,14 Unit Price incl. VAT
22
SPACER #1 Substituted by 3086765
3084778
Not Available
22
SPACER #2 Substituted by 3086766
3084779
Not Available
23
PIN CRANK #1
3084152
$125,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
