1
Engine displacement
400
2
Year
1995
3
Trim
big-boss-6x6-400l-w958740
4
Parts Catalog
HEADLIGHT ASSEMBLY 6X6 400L
5
Parts Diagram
Parts Catalog
OIL TANK ASSEMBLY 6X6 400L
by
FRONT STRUT ASSEMBLY 6X6 400L

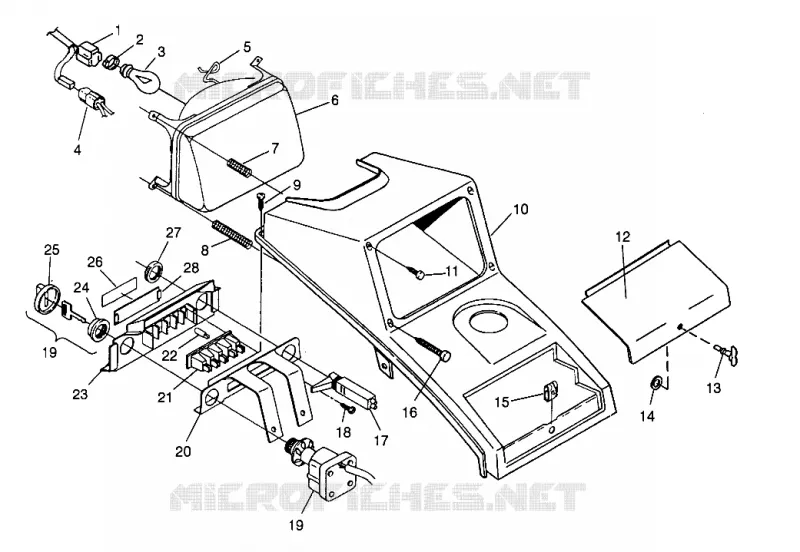

HEADLIGHT ASSEMBLY 6X6 400L
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
18
19
19
20
21
22
23
24
25
26
27
28
1
HARNESS HEADLIGHT
2460424
Not Available
2
COVER SOCKET H/L.
4032066
Not Available
3
BULB H/L
4030028
Not Available
4
HSG DUAL FEMALE
4040024
$6,39 Unit Price incl. VAT
5
RETAINER H/L BULB
4032063
Not Available
6
H/L ASM W/BULBSEAL
4032065
Not Available
7
SPRING-ADJ
4032002
Not Available
8
SPRING ADJ. (Incl. Bulb Lens & Gasket)
4032041
Not Available
9
SCREW(10)
7512017
$9,44 Unit Price incl. VAT
10
COVER H/L CAMEL TAN (Tan)
5431202193
Not Available
11
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
12
DOOR ACCESS CAMEL TAN (Tan)
5431201193
Not Available
13
FASTENER 1/4 TURN(10)
7670064
$11,01 Unit Price incl. VAT
14
RING SPLIT RETAINER(10)
7670065
$3,66 Unit Price incl. VAT
15
RECEPTACLE CLIP-ON(10)
7670066
$6,81 Unit Price incl. VAT
16
SCREW ADJUST (ATV)(10)
4032042
Not Available
17
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
17
CABLE CHOKE
7080371
$178,49 Unit Price incl. VAT
18
Screw
7511862
Not Available
19
SWITCH IGNITION (See Footnote Below)
4110140
$257,24 Unit Price incl. VAT
20
BRKT IGN. PANEL
5220965067
Not Available
21
STRIP SOCKET
4032037
$43,56 Unit Price incl. VAT
22
BULB
4030042
4080872
$15,74 Unit Price incl. VAT
23
PANEL IGNITION
5430995
Not Available
24
NUT IGN.SWITCH
5432090
Not Available
25
COVER KEY Substituted by 5433534
5431964
5465307
$26,24 Unit Price incl. VAT
26
DECAL PANEL [No Longer Available]
7072528
Not Available
27
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
28
LENS ASM PILOT LIGHT
2652049
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
