1
Engine displacement
600
2
Year
2019
3
Trim
600 SWITCHBACK XCR / SC SELECT
4
Parts Catalog
SUSPENSION, CONTROL ARMS, SPINDLE AND SHOCK MNTG
5
Parts Diagram
Parts Catalog
REAR SUSPENSION AND TRACK
by
SUSPENSION, CONTROL ARMS, SPINDLE AND SHOCK MNTG
1
1
1
2
2
2
3
3
3
4
4
5
6
7
7
8
8
8
8
8
8
8
8
9
10
11
11
12
12
13
13
14
15
16
17
17
18
19
20
20
20
20
21
22
22
12
12
24
25
25
1
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
2
SHAFT PIVOT GROOVED
5140556
$52,49 Unit Price incl. VAT
3
BUSHING PIVOT
5450297
$6,29 Unit Price incl. VAT
4
CONTROL ARM LH UPPER MOLY BLACK [CONTROL ARM ONLY]
1824171067
$283,49 Unit Price incl. VAT
4
CONTROL ARM RH UPPER MOLY BLACK [CONTROL ARM ONLY]
1824172067
Not Available
5
RING RETAINING
7710642
$4,19 Unit Price incl. VAT
6
BEARING SPHERICAL UPPER CONTROL ARM
7061179
$47,24 Unit Price incl. VAT
7
WASHER-M12X25X1.6 THRU HARD ZOD
7556994
$6,29 Unit Price incl. VAT
8
ASM. SPINDLE LH LIME SQUEEZE [INCL. 11]
1823801630
$456,74 Unit Price incl. VAT
8
ASM. SPINDLE RH LIME SQUEEZE [INCL. 11]
1823802630
$456,74 Unit Price incl. VAT
8
ASM. SPINDLE RH RED [INCL. 11]
1823802293
$419,99 Unit Price incl. VAT
8
ASM. SPINDLE LH BLACK [INCL. 11]
1823801067
$440,99 Unit Price incl. VAT
8
ASM. SPINDLE LH WHITE [INCL. 11]
1823801133
$435,74 Unit Price incl. VAT
8
ASM. SPINDLE RH BLACK [INCL. 11]
1823802067
$440,99 Unit Price incl. VAT
8
ASM. SPINDLE LH RED [INCL. 11]
1823801293
$419,99 Unit Price incl. VAT
8
ASM. SPINDLE RH WHITE [INCL. 11]
1823802133
$435,74 Unit Price incl. VAT
9
NUT-HEX-M12X1.5 8 ZOD NYL
7547464
$6,29 Unit Price incl. VAT
10
BUSHING
5136910
$13,64 Unit Price incl. VAT
11
BUSHING SKI PIVOT
5438460
$27,29 Unit Price incl. VAT
12
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
13
WASHER
7555806
$1,56 Unit Price incl. VAT
14
KIT SPHERICAL BEARING LOWER
2204229
$54,59 Unit Price incl. VAT
15
RING RETAINING
7710539
$4,19 Unit Price incl. VAT
16
SCREW M10x75 HCS
7519015
$10,49 Unit Price incl. VAT
17
CONTROL ARM LOWER LH BLACK [CONTROL ARM ONLY]
1824169067
Not Available
17
CONTROL ARM LOWER RH BLACK [CONTROL ARM ONLY]
1824170067
Not Available
18
SHAFT PIVOT LCA FRONT GROOVED
5140557
$52,49 Unit Price incl. VAT
19
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$9,44 Unit Price incl. VAT
20
WASHER
7556758
$6,29 Unit Price incl. VAT
21
SCREW
7518941
$7,34 Unit Price incl. VAT
22
SPACER-10.2IDX12.62OD
5136530
$8,39 Unit Price incl. VAT
23
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
24
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$12,59 Unit Price incl. VAT
25
O-RING 0.600IDX.210
5412290
$3,66 Unit Price incl. VAT

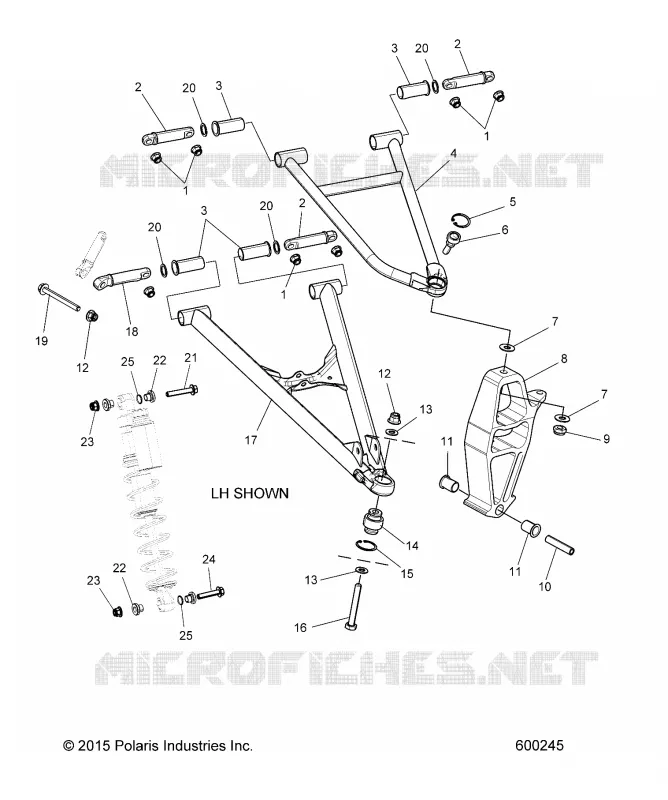

Find the detailed SUSPENSION, CONTROL ARMS, SPINDLE AND SHOCK MNTG POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
