1
Engine displacement
600
2
Year
2019
3
Trim
600 SWITCHBACK XCR / SC SELECT
4
Parts Catalog
CHASSIS, BULKHEAD ASM.
5
Parts Diagram
Parts Catalog
CHASSIS, CLUTCH GUARD AND FOOTRESTS
by
REAR BUMPER & CLOSEOFF
CHASSIS, BULKHEAD ASM.
-
-
-
8
8
8
8
8
9
10
10
11
12
12
13
13
13
14
14
15
16
17
18
19
20
21
22
23
24
-
KIT LORD 406 REPAIR KIT 50 ML [ADHESIVE]
2204171
2830614
$517,64 Unit Price incl. VAT
-
KIT LORD MIX NOZZLES 12 PIECE
2204172
2830615
$14,69 Unit Price incl. VAT
-
KIT LORD 406 50 ML CARTRIDGE [ADHESIVE]
2204400
$369,59 Unit Price incl. VAT
1
TUBE-CROSSOVER EXTRUDED
5140781
$173,24 Unit Price incl. VAT
2
ASM. BRKT. IDLER TOP
1019666
1026546
$47,24 Unit Price incl. VAT
3
FLOOR BULKHEAD
5256849
$47,24 Unit Price incl. VAT
4
STUD
7519204
$36,74 Unit Price incl. VAT
4
ASM. CLIP W/STUD LH [INCL. 2][REQUIRES ADHESIVE]
1019181
$519,74 Unit Price incl. VAT
5
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
6
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
7
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
8
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
9
ASM. BRACE LOWER LH [REQUIRES ADHESIVE][INCL. SLEEVE]
1019183
$220,49 Unit Price incl. VAT
10
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
11
MOUNT-STEERING LOWER MACH
5138449
$26,24 Unit Price incl. VAT
12
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$7,34 Unit Price incl. VAT
13
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$3,14 Unit Price incl. VAT
14
ASM. CLIP W/STUD RH [INCL. 2][REQUIRES ADHESIVE]
1019182
$488,24 Unit Price incl. VAT
14
STUD
7519204
$36,74 Unit Price incl. VAT
15
ASM-CHAINCASE INTERMD [REQUIRES ADHESIVE][INCL. BRNGS. SEALS]
1333119
$390,59 Unit Price incl. VAT
16
WASHER-6.2X14.25X2 ZC
7556588
$4,19 Unit Price incl. VAT
17
NUT-HEX-M6X1.0 8 ZOD NYL
7547505
$4,19 Unit Price incl. VAT
18
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$2,09 Unit Price incl. VAT
19
ASM. STUD PLATE M6x4
1020927
$52,49 Unit Price incl. VAT
20
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$13,64 Unit Price incl. VAT
21
MOUNT-JACKSHAFT BEARING MACH
5139244
5144103
$47,24 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
ASM-NUT PLATE JACKSHFT TP/CO
1024312
$36,74 Unit Price incl. VAT
24
SCR-M5X0.8X12 10.9 TX/BH ZPC
7520967
$7,34 Unit Price incl. VAT

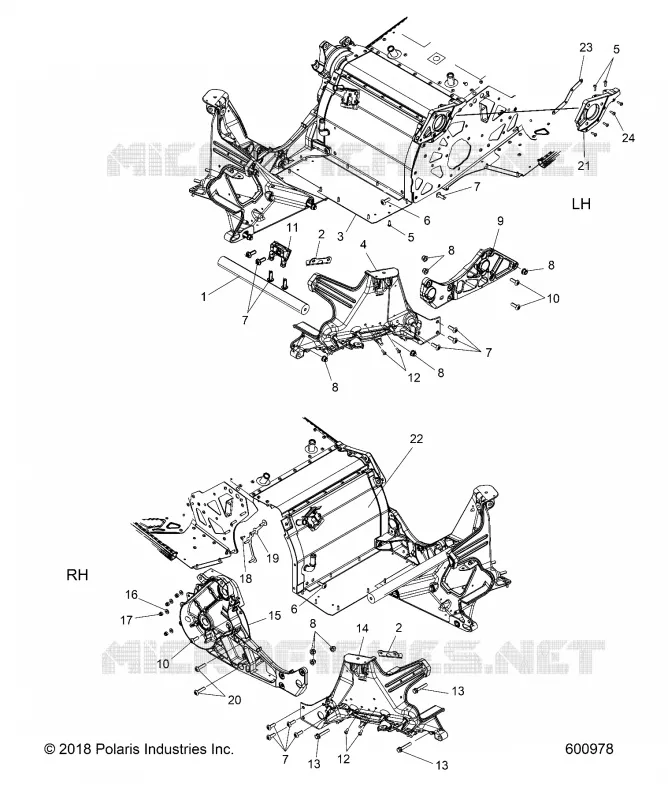

Find the detailed CHASSIS, BULKHEAD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
