1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI - A09MN50AN/AX
4
Parts Catalog

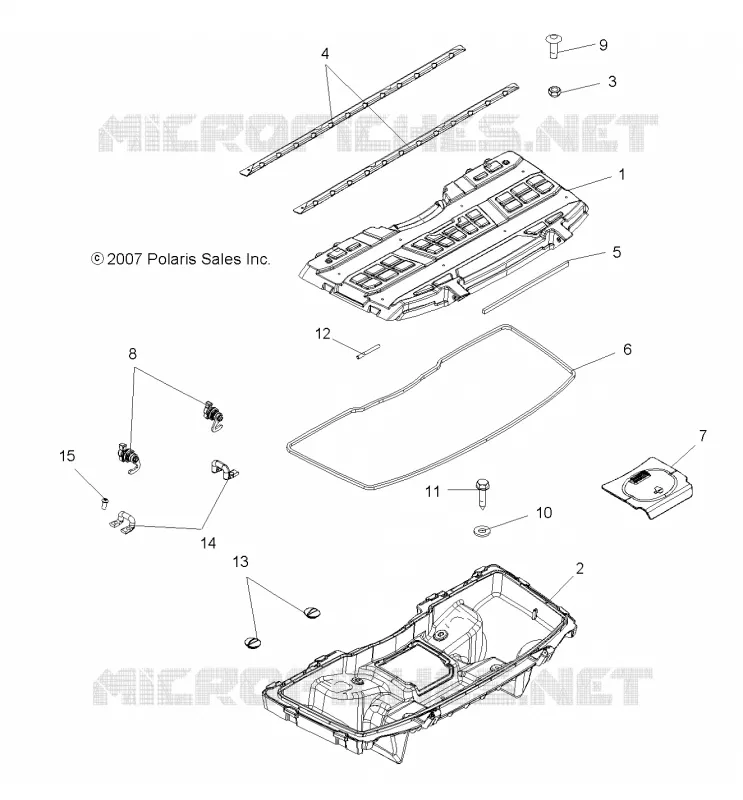

FRONT STORAGE BOX
5
Parts Diagram
Parts Catalog
CABIN
by
BRAKE LINES
FRONT STORAGE BOX
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
1
2
3
4
4
5
6
7
7
8
8
8
8
8
9
10
11
12
1
Asm. Front Cover (Incl. 29 35 and Warning Decal)
2633162
$293,99 Unit Price incl. VAT
2
Asm. Box Lower Front [Incl. 6 7 13 14]
2633377
2203484
$577,49 Unit Price incl. VAT
3
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
4
Channel Lid Front Flat Black Wrinkle
5247653418
$120,74 Unit Price incl. VAT
5
Seal Lid/Bumper
5521706
$52,49 Unit Price incl. VAT
6
Seal
5521693
$52,49 Unit Price incl. VAT
7
Cover Radiator Front [If built after 8/01/06]
5413189
Not Available
8
Latch RH [If built after 1/25/07]
7081422
$20,99 Unit Price incl. VAT
8
Latch LH [If built after 1/25/07]
7081421
$13,64 Unit Price incl. VAT
9
Screw
7518427
$2,09 Unit Price incl. VAT
10
WASHER
7556175
$9,44 Unit Price incl. VAT
11
Screw Flange
7517208
$3,66 Unit Price incl. VAT
12
PIN HINGE FRONT
5134576
$12,59 Unit Price incl. VAT
13
PLUG-COMPARTMENT
5412981
5418084
$6,29 Unit Price incl. VAT
14
Bracket Latch Box
5252765
$19,94 Unit Price incl. VAT
15
SCR-#10X1/2-HI/LO-TRX-Y
7512076
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
