1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI - A09MN50AN/AX
4
Parts Catalog
WHEELS, REAR
5
Parts Diagram
Parts Catalog
WHEELS, FRONT
by
CRANKCASE

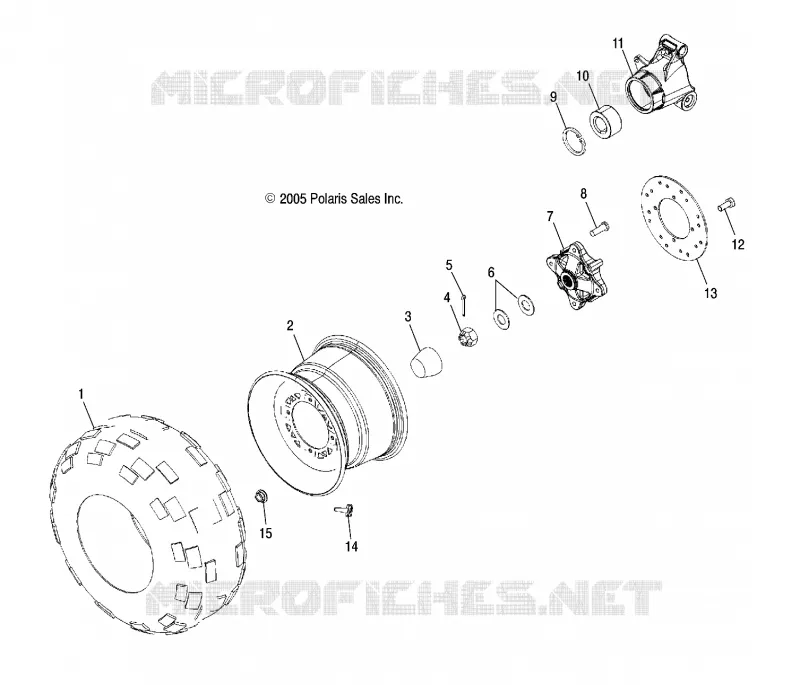

WHEELS, REAR
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
1
Tire 26x11-12
5412661
5419038
$269,84 Unit Price incl. VAT
2
Rim Rear [AA][FB][AC](If built after 1/12/04)
1520457486
1523450-067
$225,21 Unit Price incl. VAT
2
WELD-RIM REAR 12X8.0 BLK [TO 9/4/2023]
1520457067
1523450-067
$225,21 Unit Price incl. VAT
3
Cover Dust Hub
5413427
$52,49 Unit Price incl. VAT
4
NUT CASTLE(10)
7543005
Not Available
5
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
6
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
7
Hub Rear Wheel Black
5135113
5143629
$157,49 Unit Price incl. VAT
8
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
9
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
10
BEARING-WHEEL 40X74X40MM
3514635
$73,49 Unit Price incl. VAT
11
CARRIER-BEARING WHEEL (MACH)
5135563
$121,79 Unit Price incl. VAT
12
Bolt
7518653
$7,34 Unit Price incl. VAT
13
DISC-BRAKE REAR 8.625X.188
5248250
$141,74 Unit Price incl. VAT
14
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
15
NUT-FLANGE TWO PIECE 3/8-24
7547237
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
